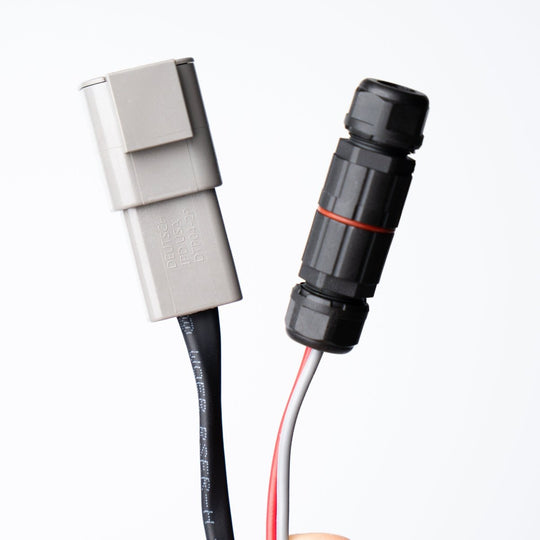

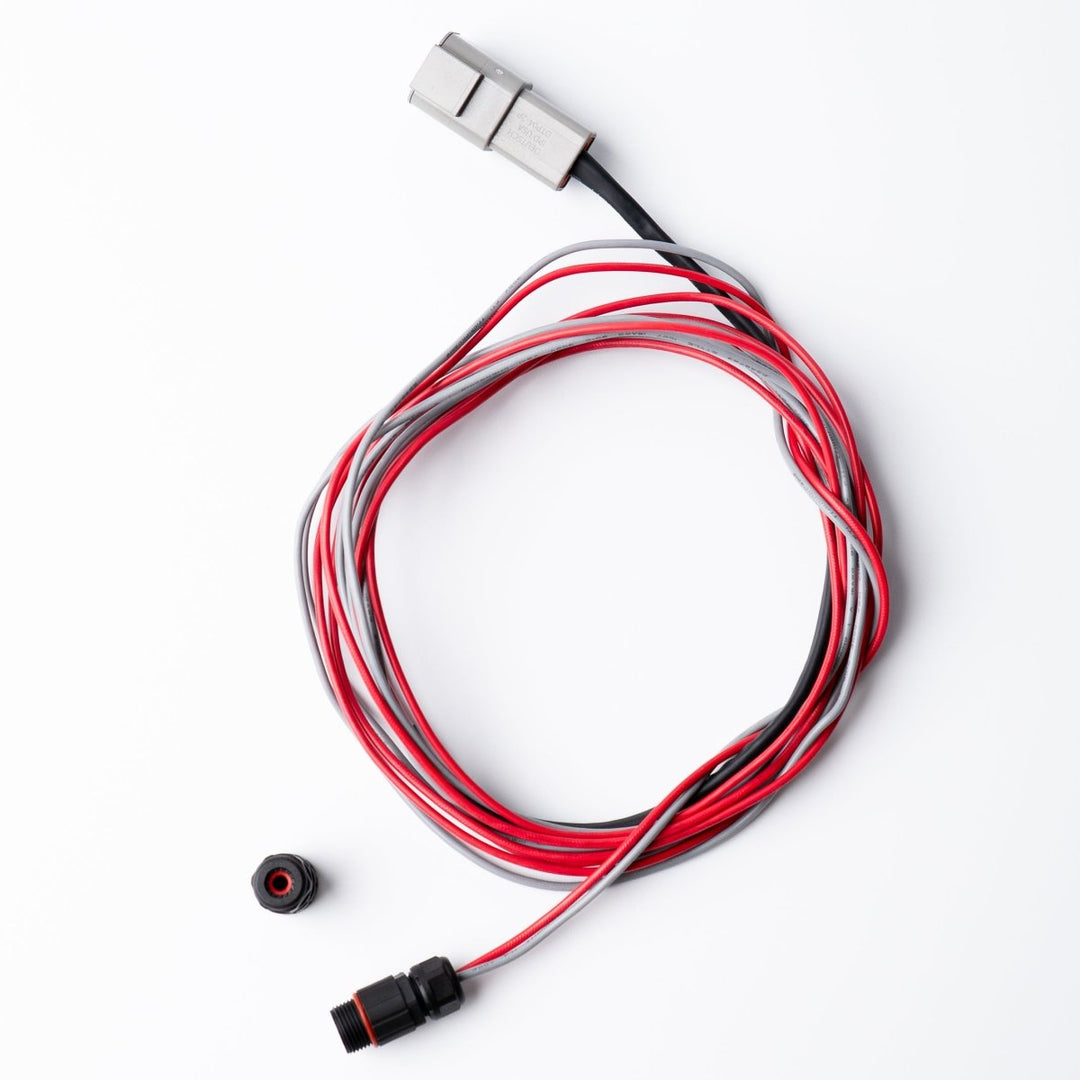

INEOS Grenadier: DTP04-2P Female to IP65 Waterproof Cable
3-Meter Power Extension · 16 AWG · DTP to IP65 2-Pin Connector
DTP04-2P
Female input
IP65
Waterproof output
16 AWG
Copper conductor
3m
Cable length
Sealed, serviceable power routing to front accessories without hard-splicing. Connects a DTP04-2P female source to an IP65 2-pin accessory connector over a 3-meter run. Commonly used between under-hood or protected source points and front bumper auxiliary loads on INEOS Grenadier setups.
IP65 rated · Dust & water spray resistant
16 AWG copper · Heavy-duty conductor
3-meter reach · Hood to bumper routing
UV resistant · Automotive-grade jacket
Problem Solved
Delivers sealed, serviceable power routing to front accessories without hard-splicing long harness runs through exposed areas.
Built for Extended Power Routing

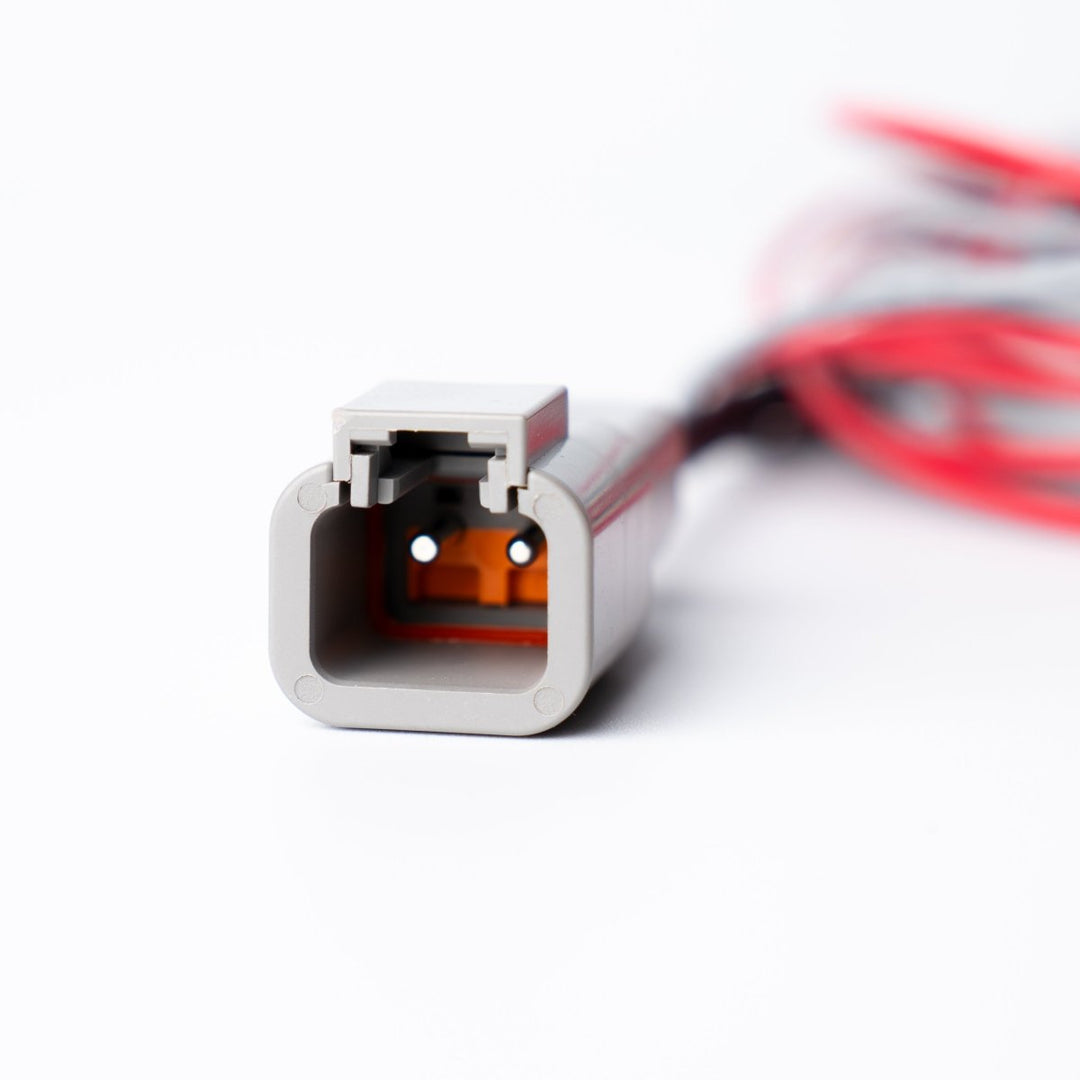

DTP04-2P Female Input
Connects to DTP04-2P male sources from splitters, harnesses, or other DTP system components. Sealed automotive connector standard.

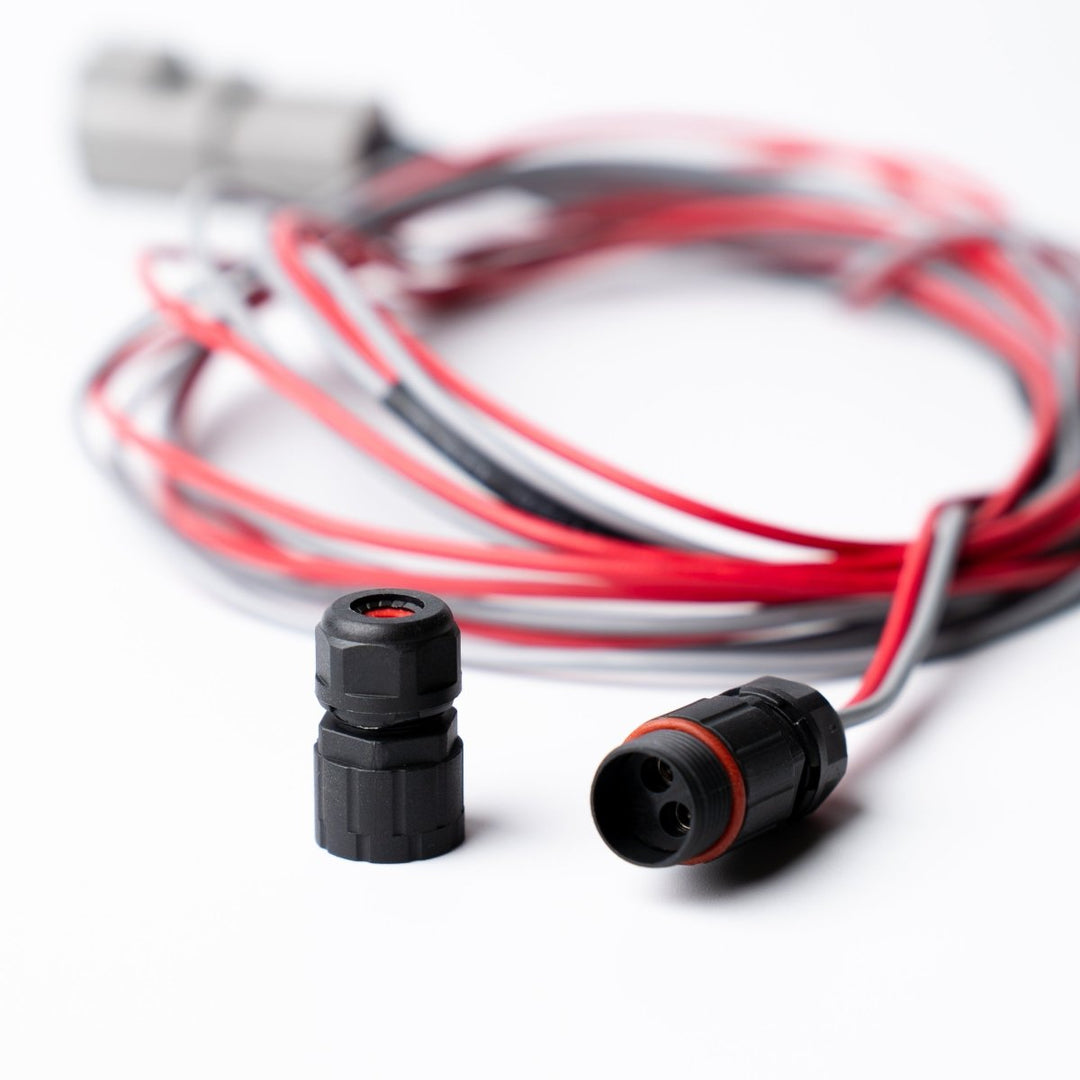

IP65 Waterproof Output
2-pin IP65 connector resists dust and water spray for front bumper installations. Not submersible but handles harsh conditions.
Automotive-Grade Construction
16 AWG copper core with UV/abrasion-resistant insulation for permanent vehicle installation in exposed routing paths.
Fitment & Compatibility
Connects a DTP04-2P female source to an IP65 2-pin accessory connector over a 3-meter run. Commonly used between under-hood or protected source points and front bumper auxiliary loads on INEOS Grenadier setups. Exclusions: not for incompatible pinouts or unfused battery feeds. Verify before order.
Technical Specifications
| Specification | Details |
|---|---|
| Length | 3 meters (approx. 10 ft) |
| Input Connector | DTP04-2P female |
| Output Connector | IP65 2-pin waterproof connector |
| Conductor | 16 AWG copper core |
| Cable Jacket | UV/abrasion-resistant automotive insulation |
| Protection Rating | IP65 (dust & water spray resistant) |
What's Included
- 1× DTP04-2P female to IP65 cable, 3m
Not Included
- Switch relay harness
- Fuse block
- Accessory device
Installation & Prerequisites
- Confirm source connector orientation and polarity.
- Route cable through protected path away from sharp edges.
- Mate IP65 connector and fully seat lock ring/tab.
- Function-test accessory under running-voltage conditions.
Frequently Asked Questions
Is 3 meters enough for bumper routing?
Usually yes for many layouts, but verify your exact route before purchase.
Can this be shortened?
Yes by a qualified installer; reseal terminations properly after modification.
Is IP65 fully submersible?
No. IP65 resists dust and water spray, not prolonged submersion.
Can I use this for non-lighting accessories?
Yes, if voltage/current and connector pinout match your device.
