Patent Pending
DualTrack-T™ Cross Bar Rail Kit
Dual L-Track + 25mm T-Slot · Mercedes Sprinter · 2-Rail Kit
The DualTrack-T™ is the next evolution of DVA Mechanics' proven roof rail platform — a crossbar roof rack purpose-engineered for the Mercedes Sprinter. Featuring our Patent Pending dual-channel design that supports both L-Track and 25mm T-Slot hardware simultaneously, it eliminates the forced choice between mounting standards and gives you one rail that does everything.
Why DualTrack-T?
Standard crossbar roof racks force you into one ecosystem. DualTrack-T runs L-Track and 25mm T-Slot channels in parallel across the full length of each rail — mount L-Track sliders, 25mm T-Slot accessories, or both at once. No adapters. No compromise.
Engineered Features

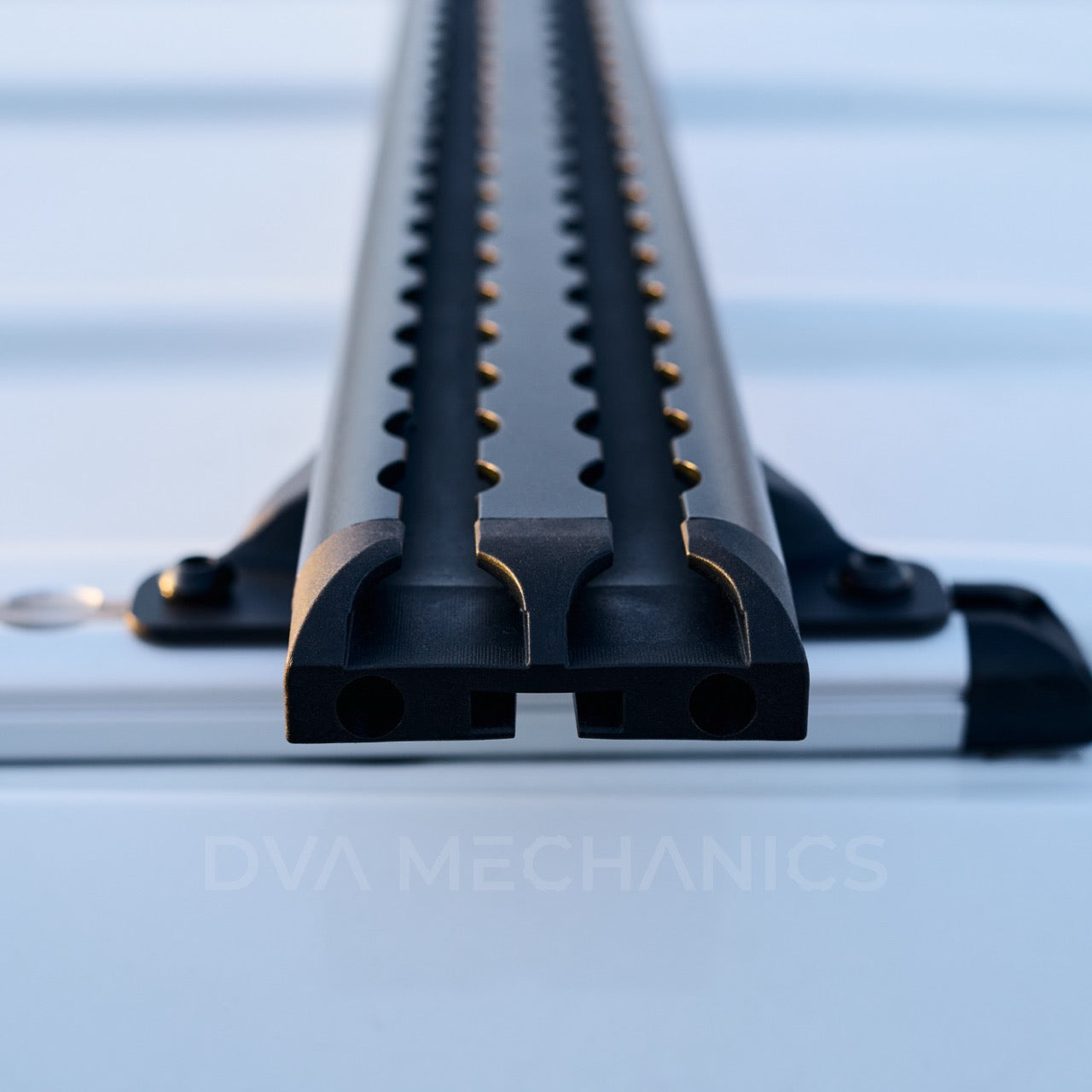

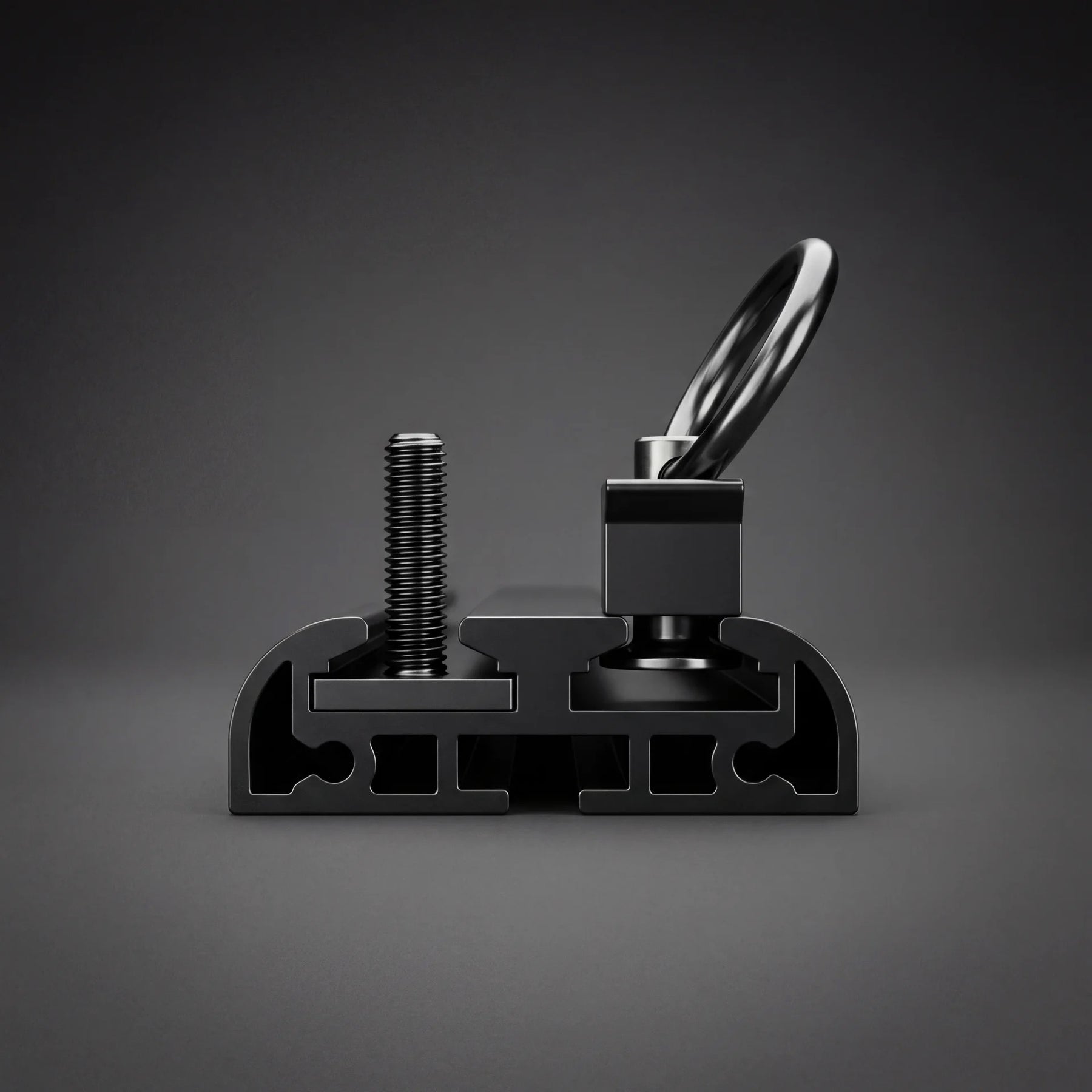

Dual L-Track + 25mm T-Slot
Patent Pending integrated twin-channel profile supports L-Track sliders and 25mm T-Slot hardware simultaneously — maximum accessory compatibility from a single rail.

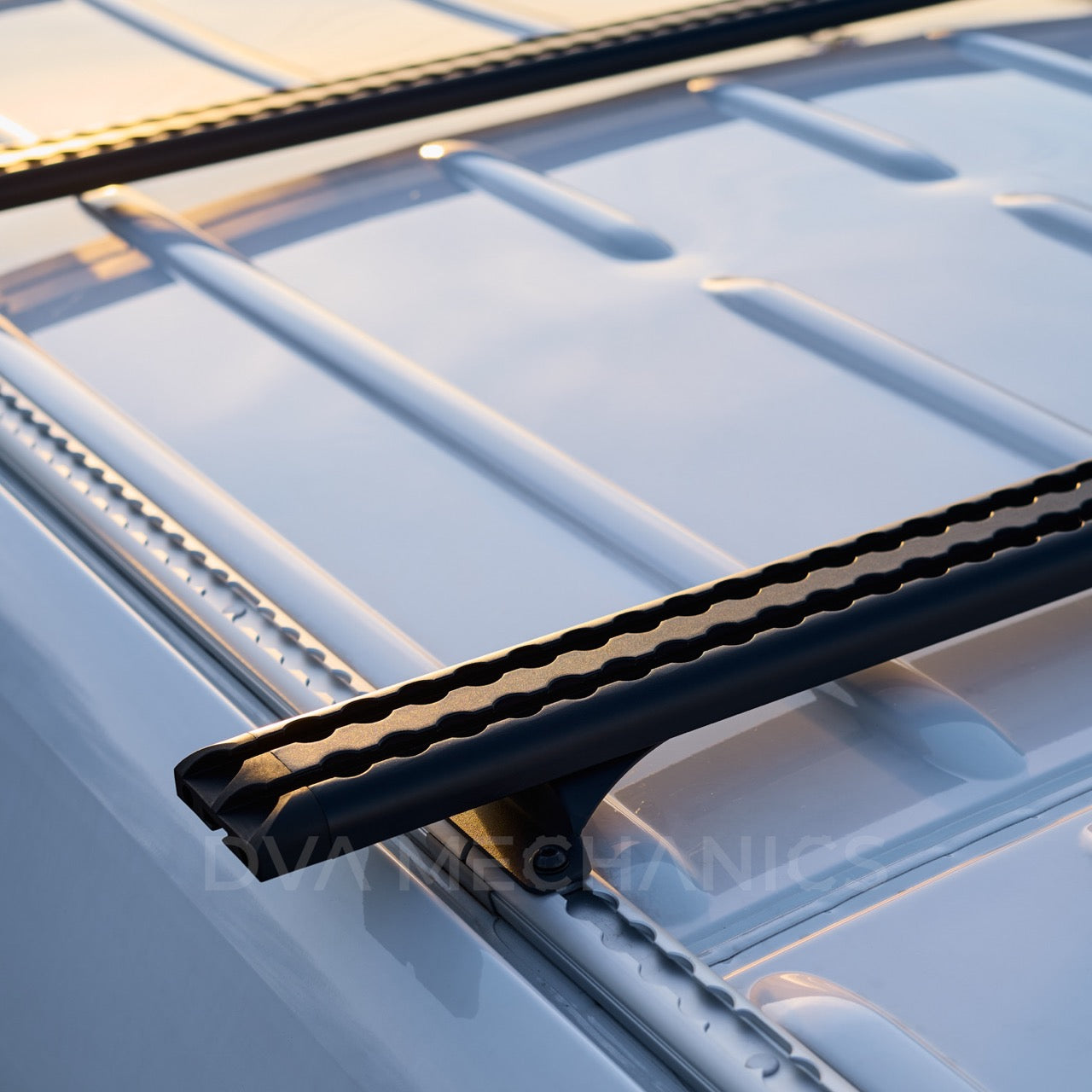

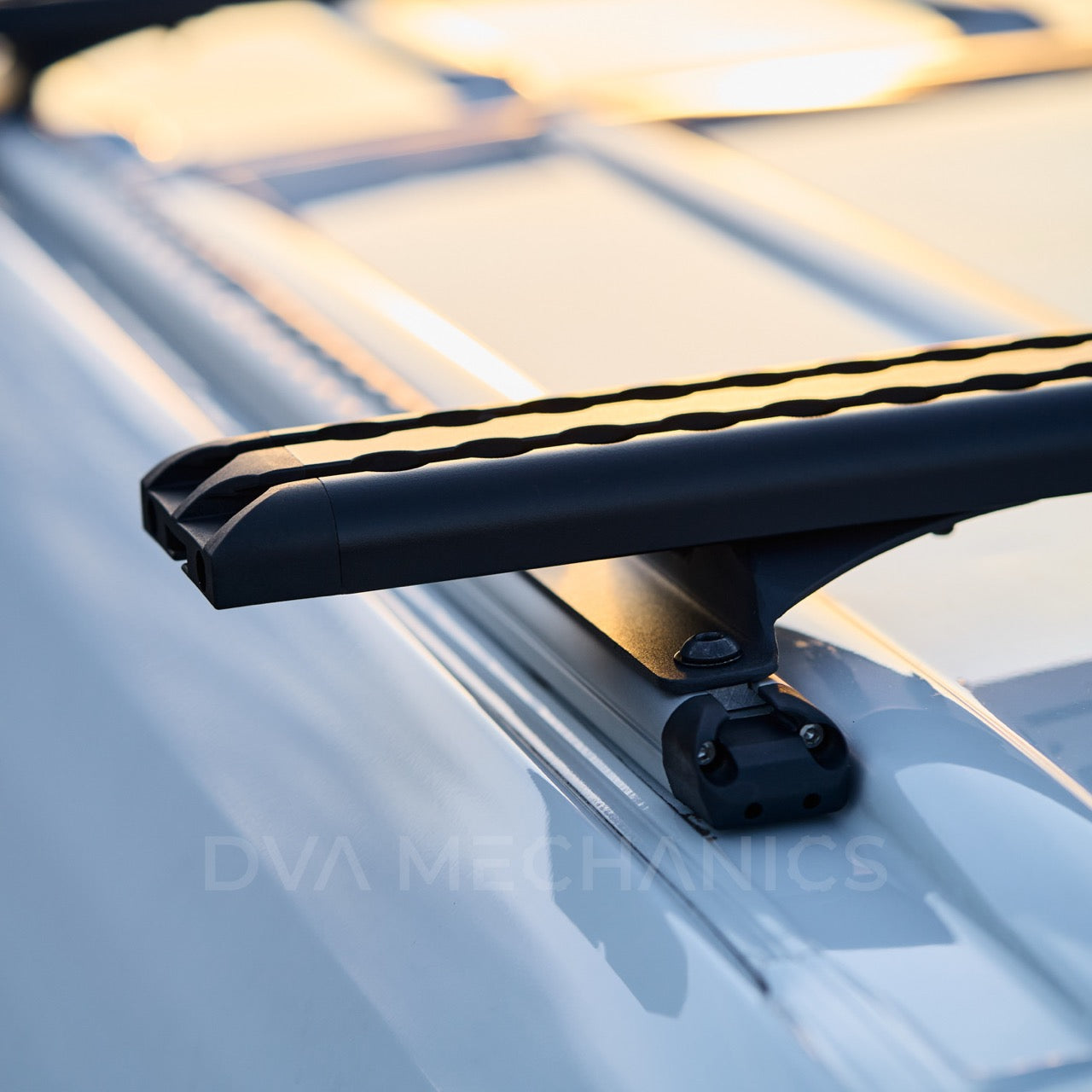

Curved-Edge Profile
Aerodynamically shaped edges reduce wind noise at highway speeds — engineered for daily-driven Sprinters, not just weekend builds.
Reinforced Aluminum
High-grade powder coated aluminum delivers structural strength without unnecessary weight. Built for heavy distributed loads and harsh conditions.
Bolt-On Installation
Mounts directly to DVA LoadSpan-T roof rails, OEM roof rails, or other aftermarket roof rails. No drilling. No permanent modification. Reversible install with basic hand tools.
Corrosion-Resistant Finish
Black powder coat resists UV, salt, and weathering — engineered for vehicles that live outside, year-round.

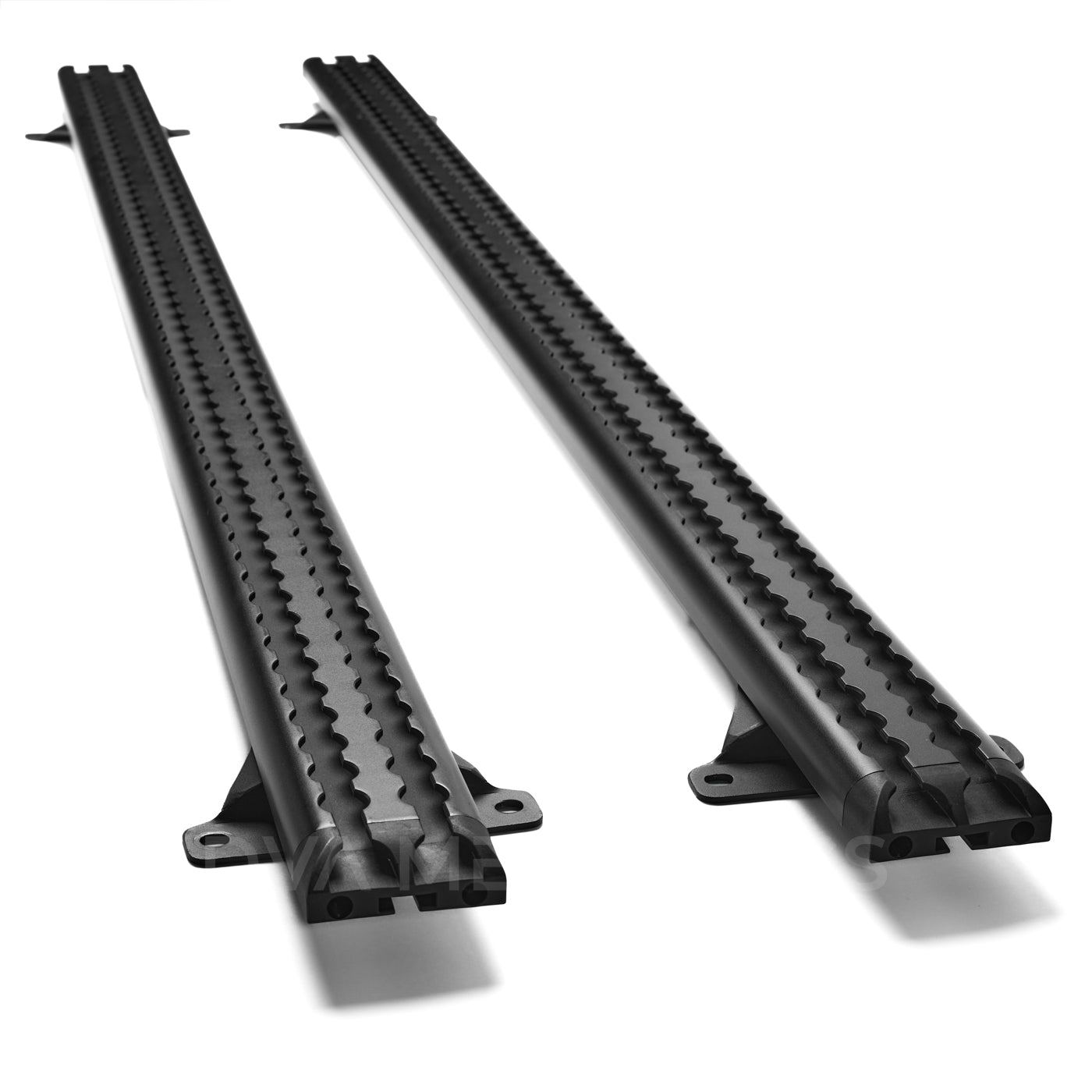

Complete 2-Rail Kit
Each order includes 2 cross bar rails and all required mounting hardware. Install both for a complete, load-ready cross bar system.

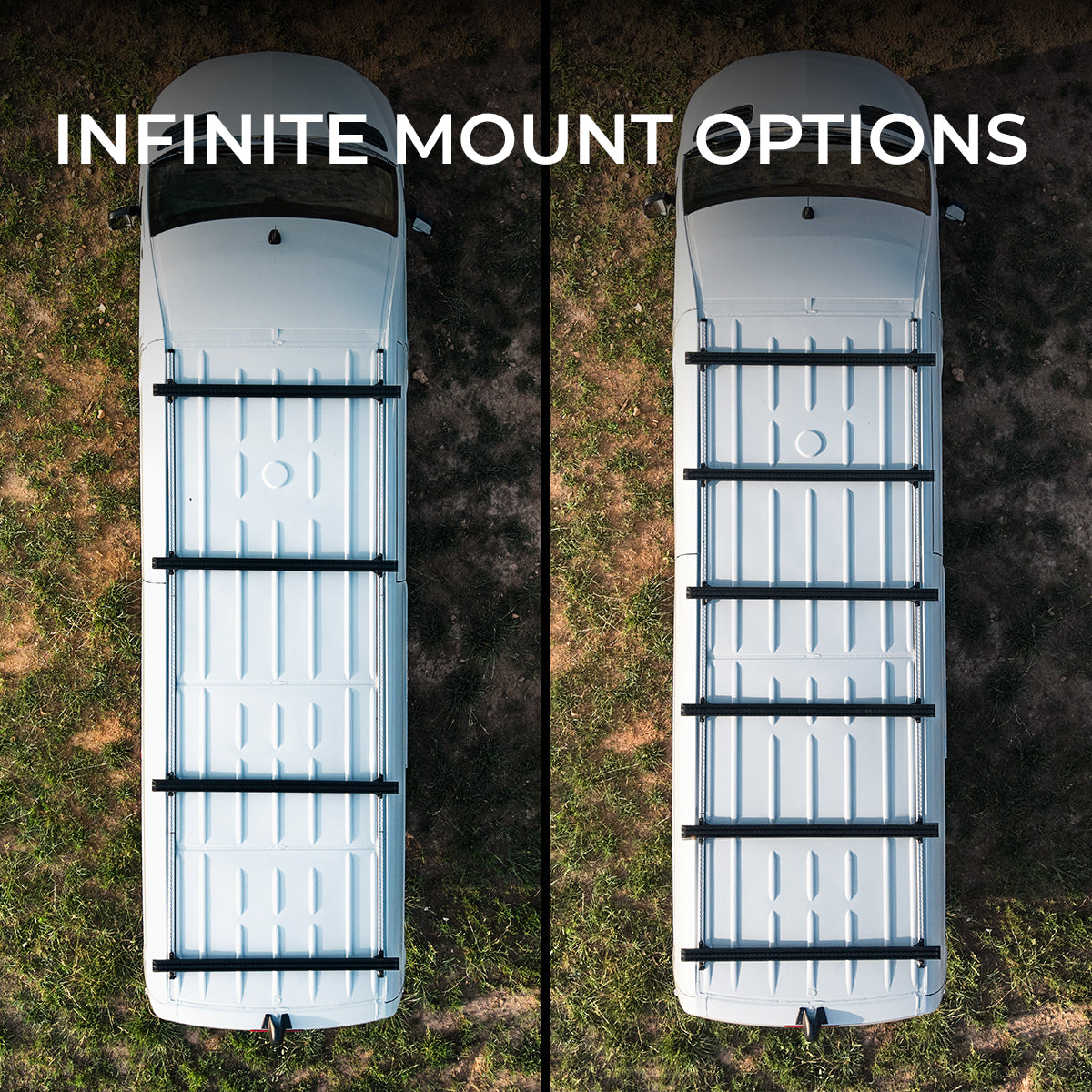

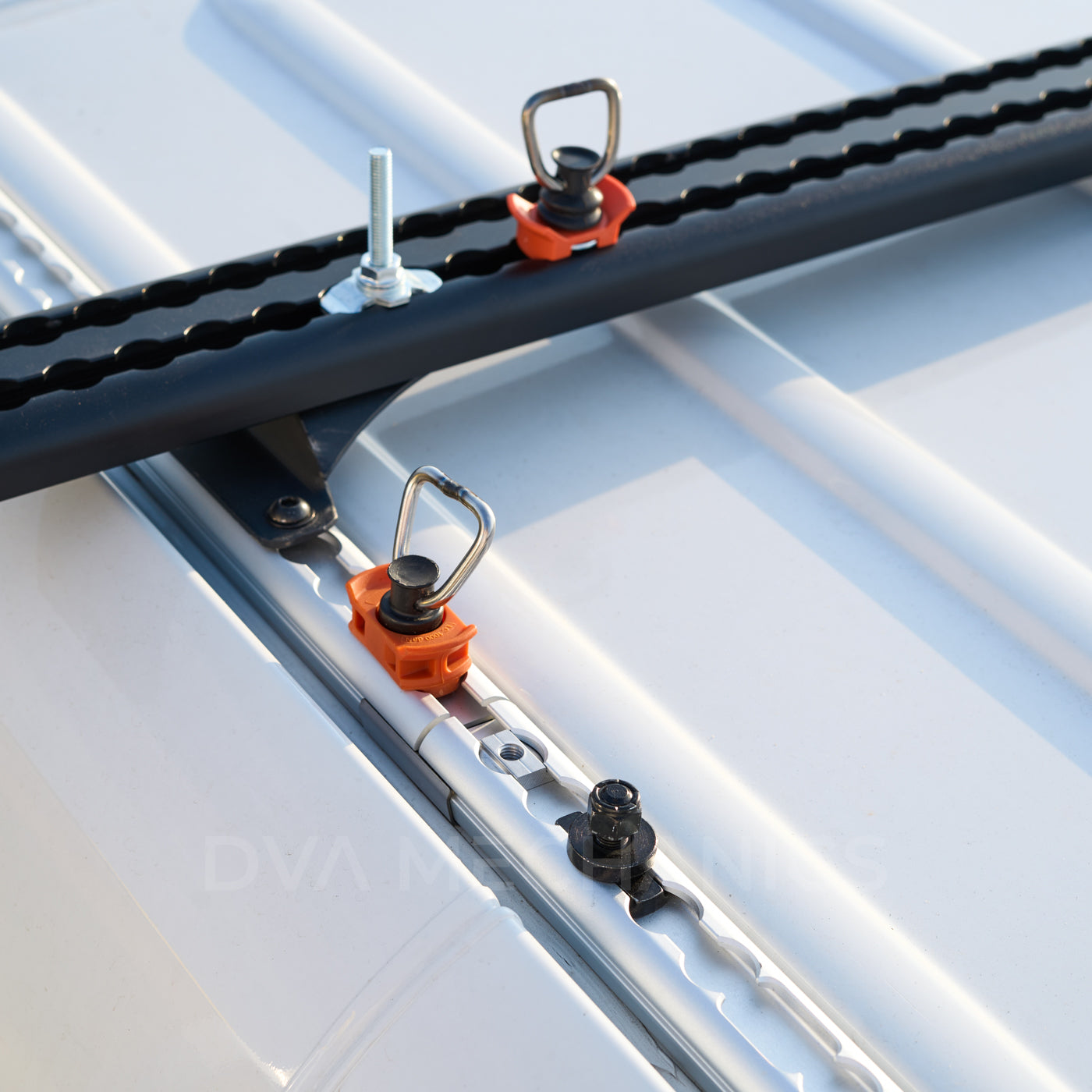

Mount Anything. Adapt Instantly.
L-Track Channel
- Sliders & tie-downs
- Cargo nets

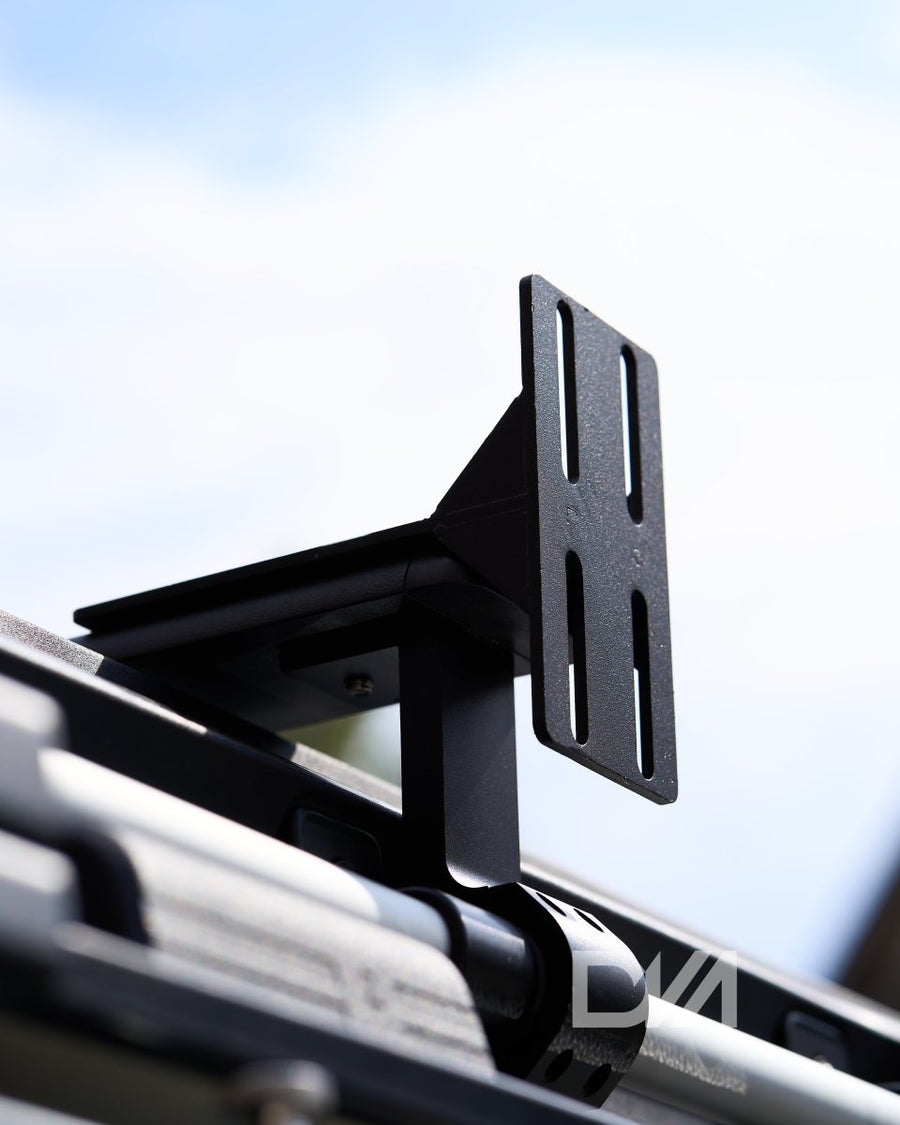

- Awning mounts

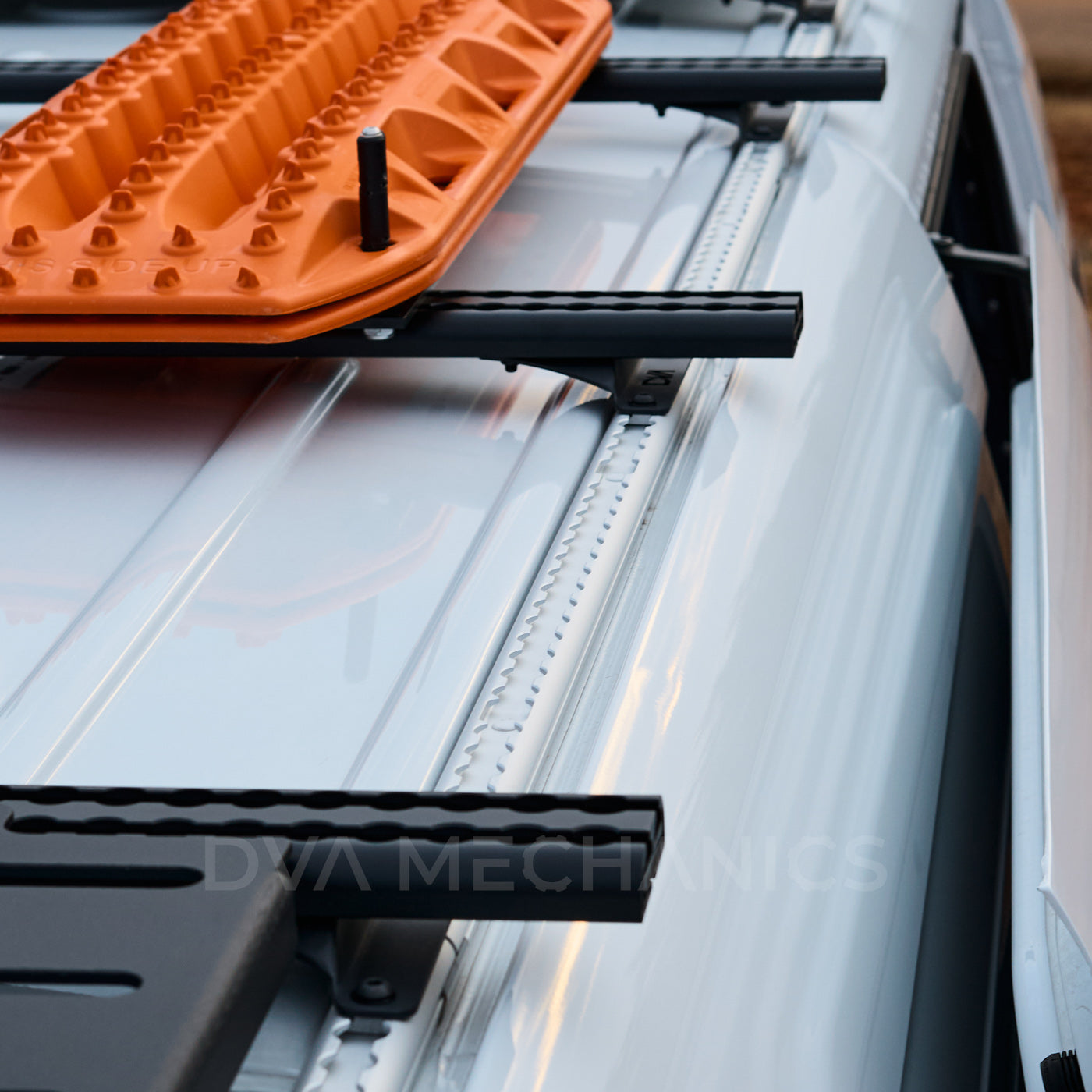

- Recovery board carriers
- Pelican case brackets
25mm T-Slot Channel
- Crossbar accessories

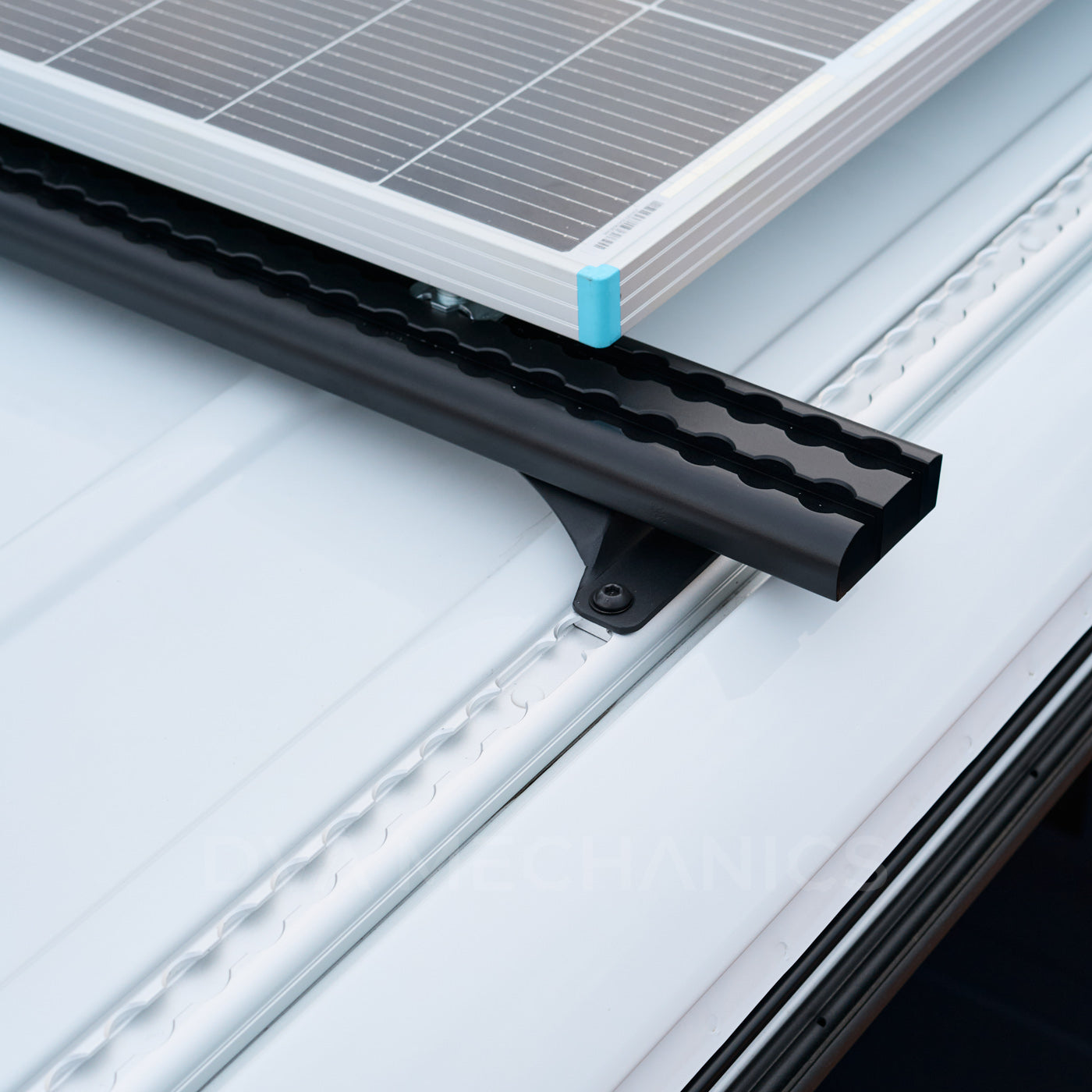

- Solar panel mounts
- Light bars
- Compatible roof-rack fixtures
- Antenna brackets
Run both standards on a single rail — swap gear in seconds without disturbing the opposite channel.
Load CapacityRated Load Capacity
2-Bar Kit
300lb
Static
/
150lb
Dynamic
Static = parked · Dynamic = while driving
Technical Details
| Material | High-Grade Powder Coated Aluminum |
| Track Configuration | Dual-Channel — L-Track + 25mm T-Slot (Patent Pending) |
| Edge Profile | Curved — Aerodynamic / Low Noise |
| Crossbar Length | 61¾" (156.8 cm) |
| Profile Width | 3" (76 mm) |
| Profile Height | 1" (25 mm) |
| Weight Per Bar | 8.5 lb (incl. mounts) |
| Finish | Black Powder Coat (UV + Corrosion Resistant) |
| Kit Contents | 2× DualTrack-T™ Cross Bar Rails + Mounting Hardware |
| Vehicle Fitment | Mercedes-Benz Sprinter — All Years (with longitudinal roof rails) |
| Installation | No-Drill, Bolt-On — Basic Hand Tools |
| Designed & Engineered | DVA Mechanics — USA |
Patent Pending Dual L-Track + 25mm T-Slot
No-Drill Compatible Roof Rails
Low Noise Curved-Edge Aero
USA Engineered DVA Mechanics
Technical Deep Dive
DualTrack-T™: The Dual-Channel Cross Bar System for Mercedes Sprinter
Engineering thesis, build examples, and full specifications
→
Our Philosophy
Setup
Why DVA Mechanics?
We built the DualTrack system to solve what frustrated us — single-standard rails that force you to pick an ecosystem before you even know what you'll need. The DualTrack-T™ is our answer: one rail, two standards, zero adapters. Every product is designed in-house, tested on our own builds, and backed by engineering that doesn't cut corners. If it doesn't work on our Sprinter, it doesn't ship on yours.

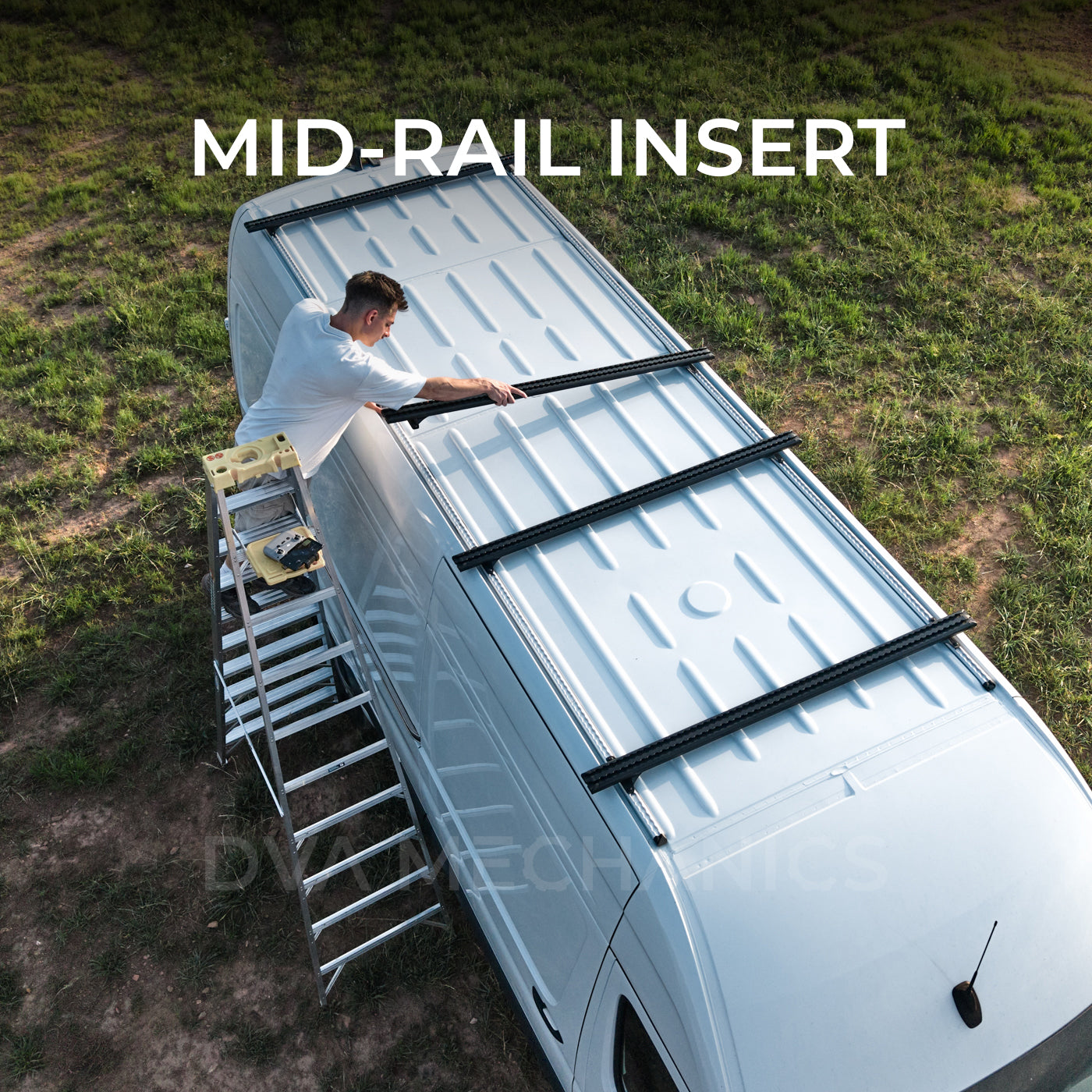

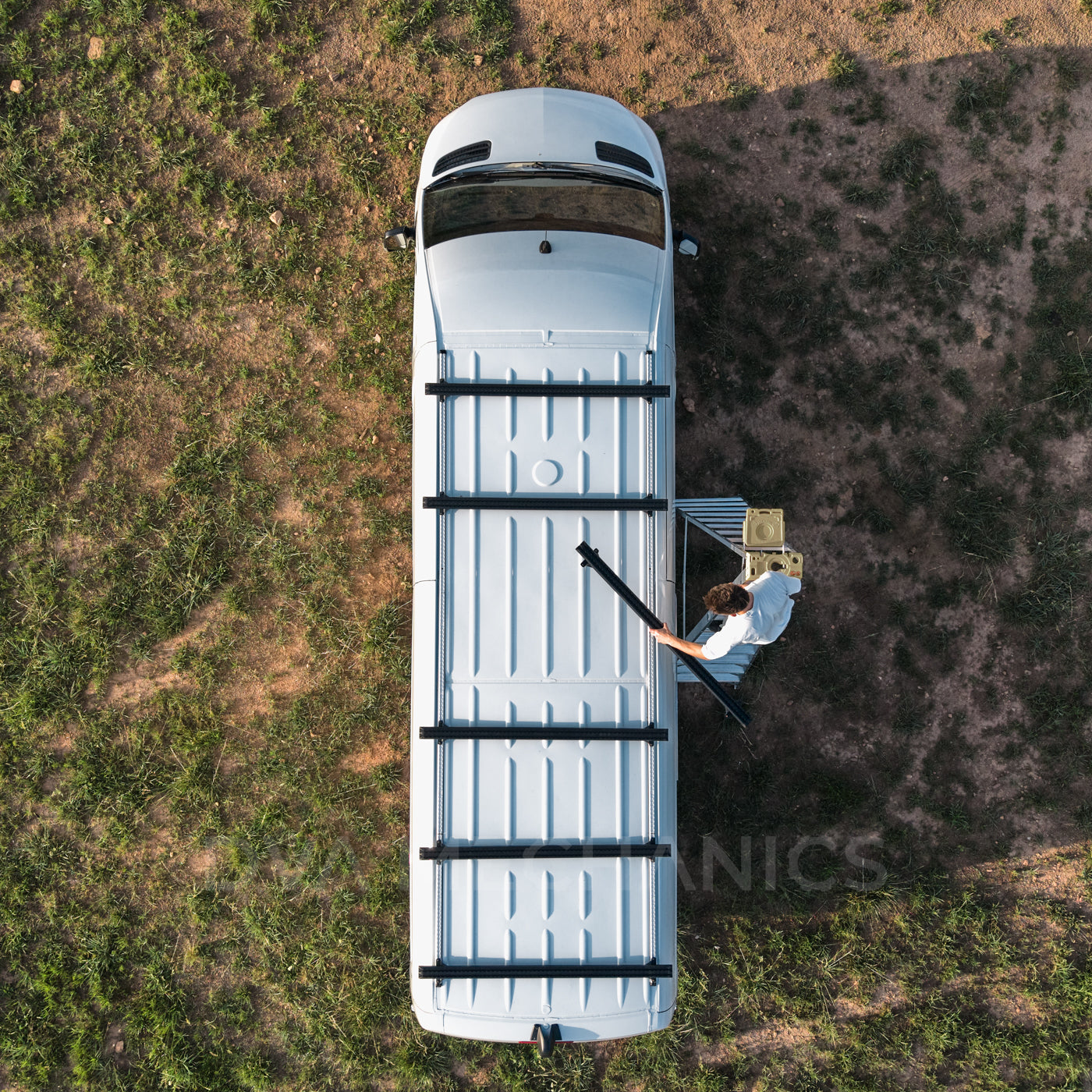

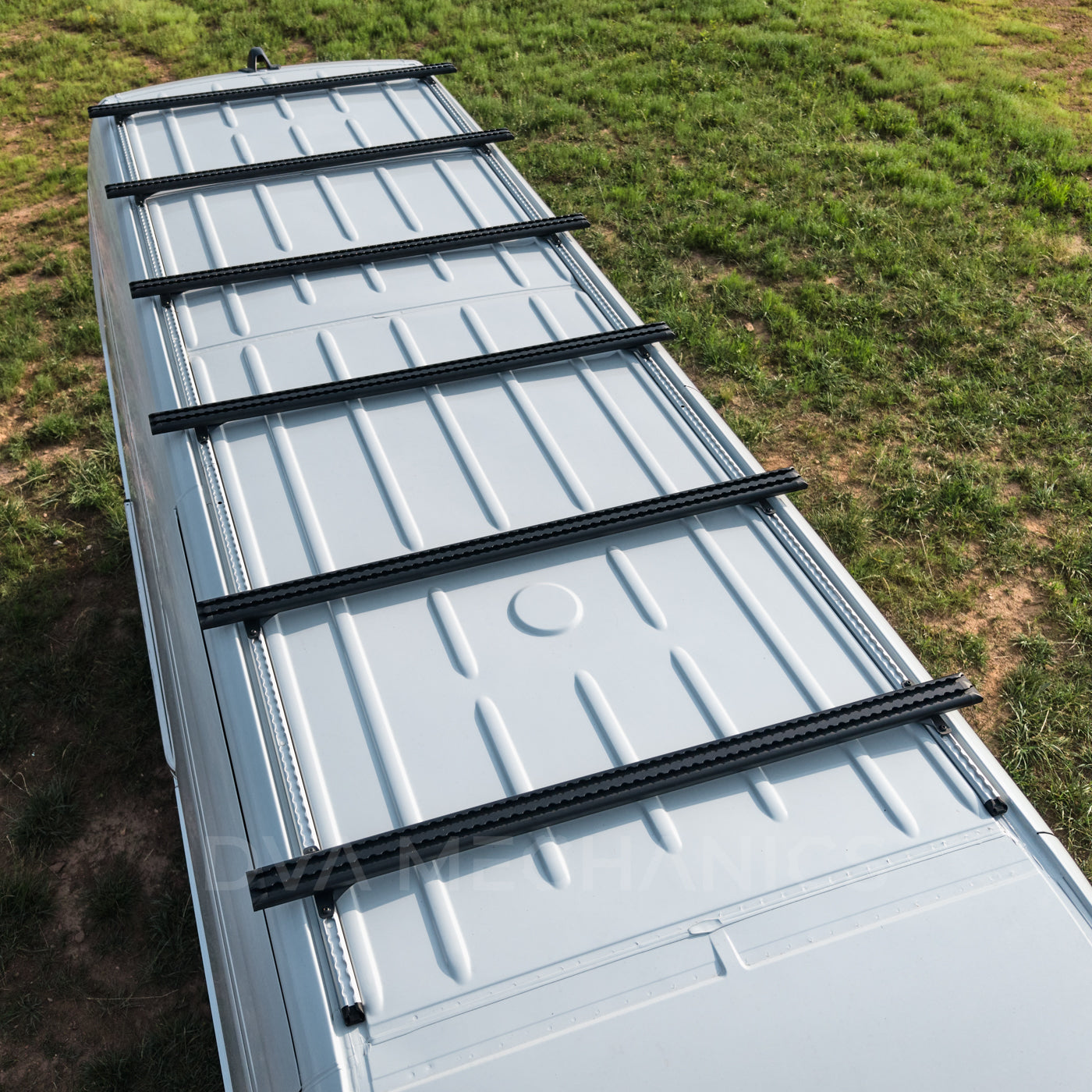

Installation
DualTrack-T™ mounts directly to DVA LoadSpan-T roof rails, OEM Roof Rails, or other aftermarket roof rails. No drilling, no permanent modification. Install is fully reversible.
01
Basic hand tools only
02
All hardware included
03
Install video available
04
< 30 min per rail

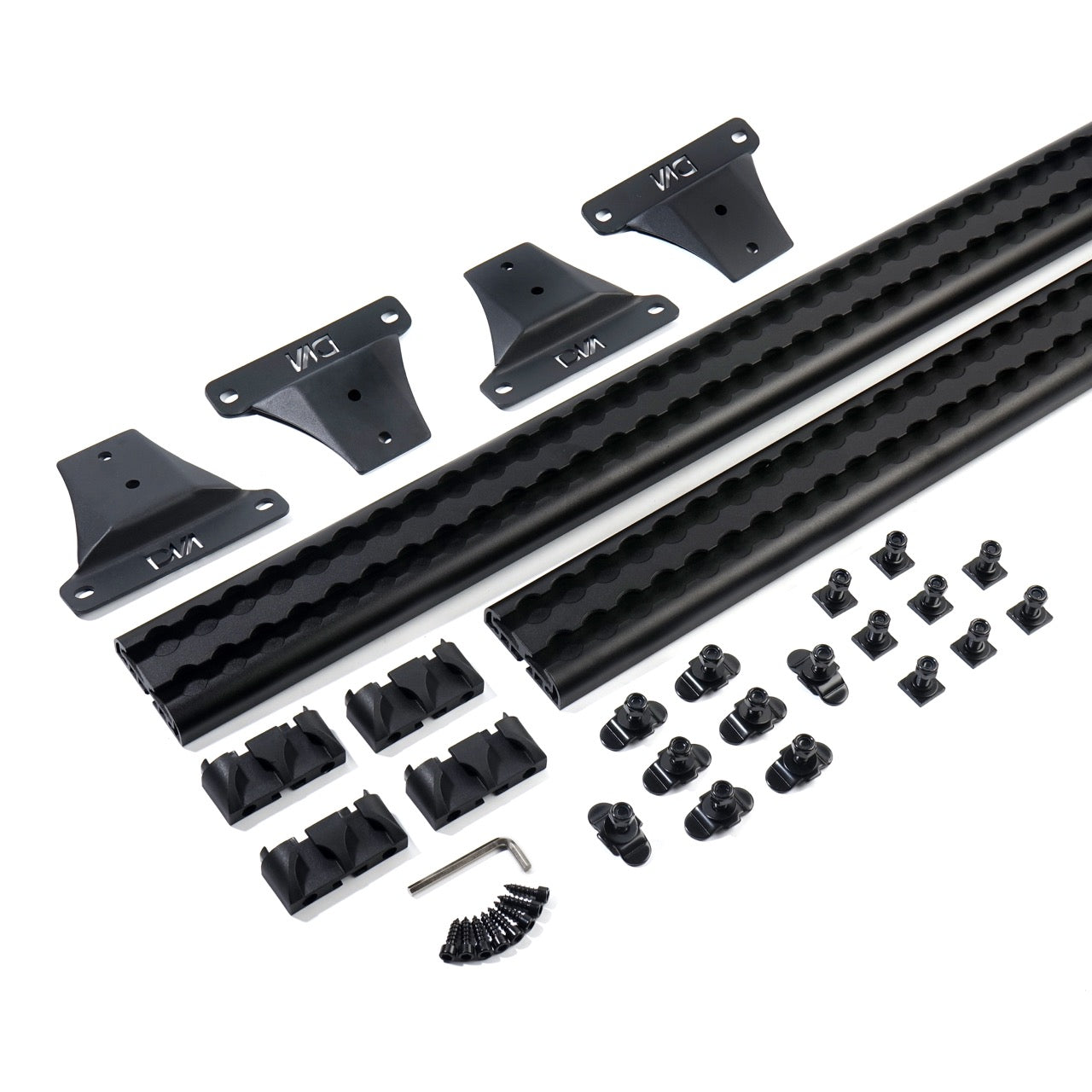

What's In The Box
2×
DualTrack-T™
Cross Bar Rails
Cross Bar Rails
Complete Mounting
Hardware Kit
Hardware Kit
Installation Video
Available Online
Available Online
Frequently Asked Questions
What's the difference between DualTrack and DualTrack-T?
The original DualTrack features a dual L-Track configuration. The DualTrack-T™ adds 25mm T-Slot channel support simultaneously with L-Track in a single channel — so you can use both mounting standards simultaneously without adapters.
Will this fit my Sprinter?
DualTrack-T™ is engineered for Mercedes-Benz Sprinter vans with DVA LoadSpan, OEM, or other aftermarket roof rails. Check the compatibility chart or contact us to confirm fitment for your specific year and configuration.
Is drilling required?
No. DualTrack-T™ attaches to compatible longitudinal roof rails; it does not bolt directly to bare factory roof hard points. Installation is fully reversible.
How does the curved edge reduce noise?
The rail profile features a curved leading and trailing edge that deflects airflow smoothly over the cross bar, reducing the turbulence that causes wind whistle at speed — a common issue with flat-top extrusion profiles.
Can I use existing L-Track or 25mm T-Slot accessories?
Yes. DualTrack-T™ is compatible with standard L-Track sliders and fittings as well as standard 25mm T-slot accessories — use what you already own or mix systems freely.
DualTrack-T™
One Rail. Two Standards. Zero Compromise.
Patent Pending by DVA Mechanics
