DVA Mechanics · Sprinter Roof System · Patent Pending
The walkable roof deck.
Engineered as one system.
DeckSpan™ 5mm aluminum panels and DualTrack-T™ dual-channel crossbars, combined into a complete stand-on-it, mount-anything roof platform — ready to bolt to your Sprinter's factory roof tracks or DVA LoadSpan™ rails. No drilling. No fabrication. No adapters.
No drilling — bolt-on, reversible
OEM tracks or LoadSpan™ rails
Free U.S. shipping
5mmFormed aluminum deck
58.5"Full Sprinter-width coverage
2 standardsL-Track + 25mm T-Slot
Van-limitedRack exceeds Sprinter dynamic rating
What's inside
Two proven products. One engineered platform.
This isn't a parts-bin bundle. DeckSpan™ was designed to drop into the DualTrack-T™ channels and lock down from the same system — a clean, repeatable mounting interface engineered to work together.
The Deck

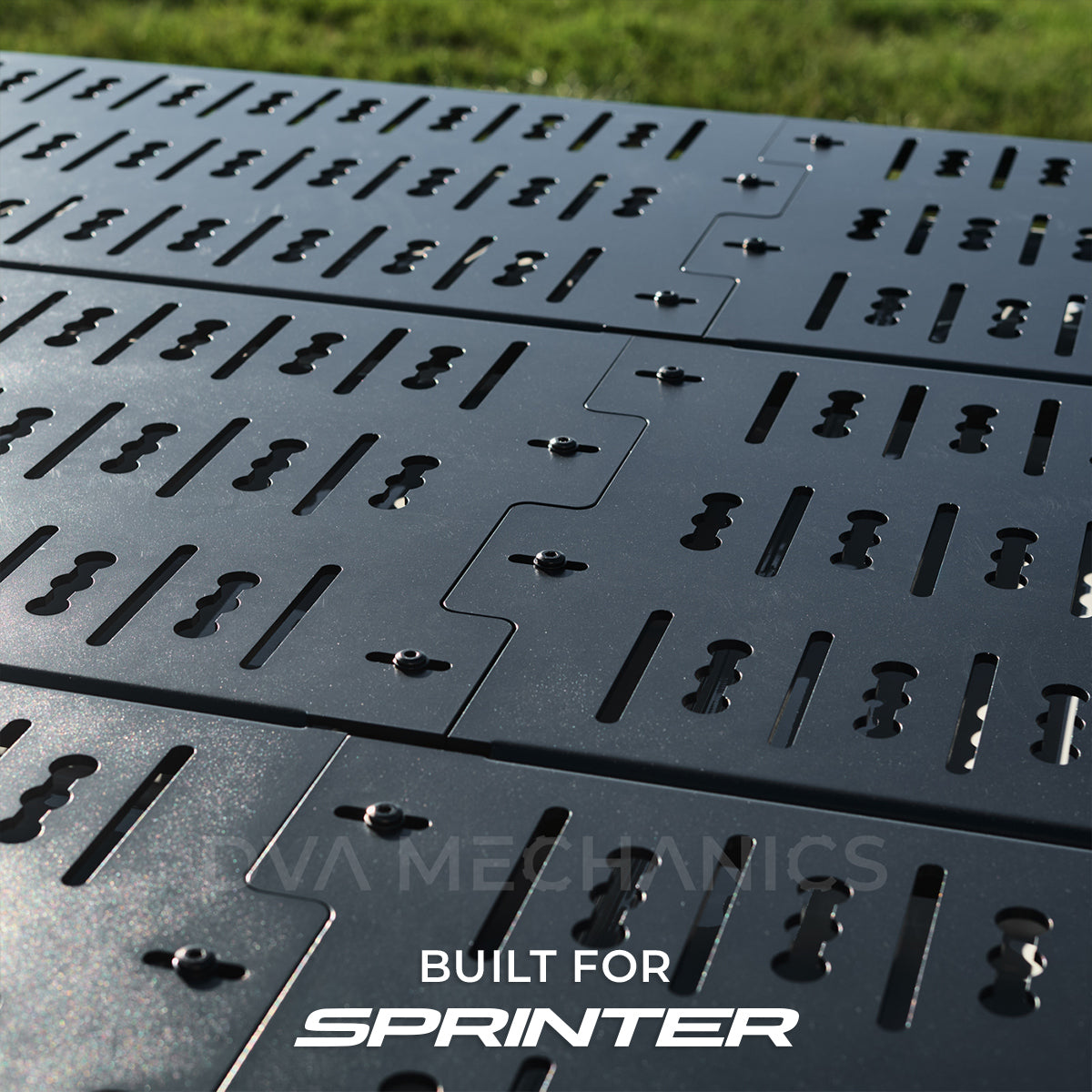

DeckSpan™ Roof Panels

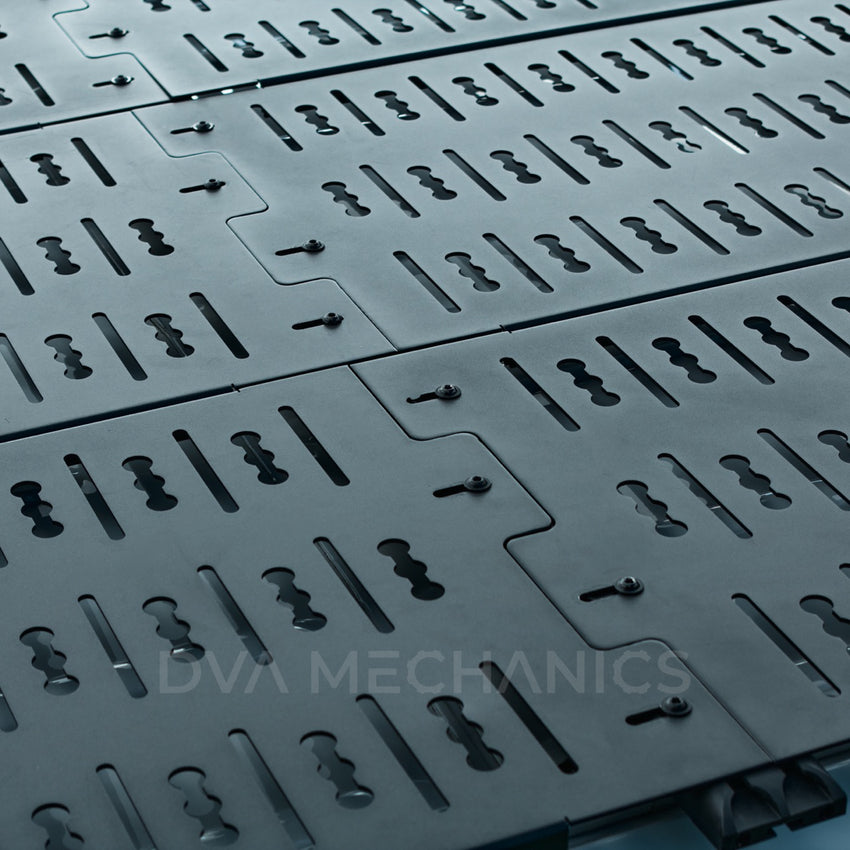

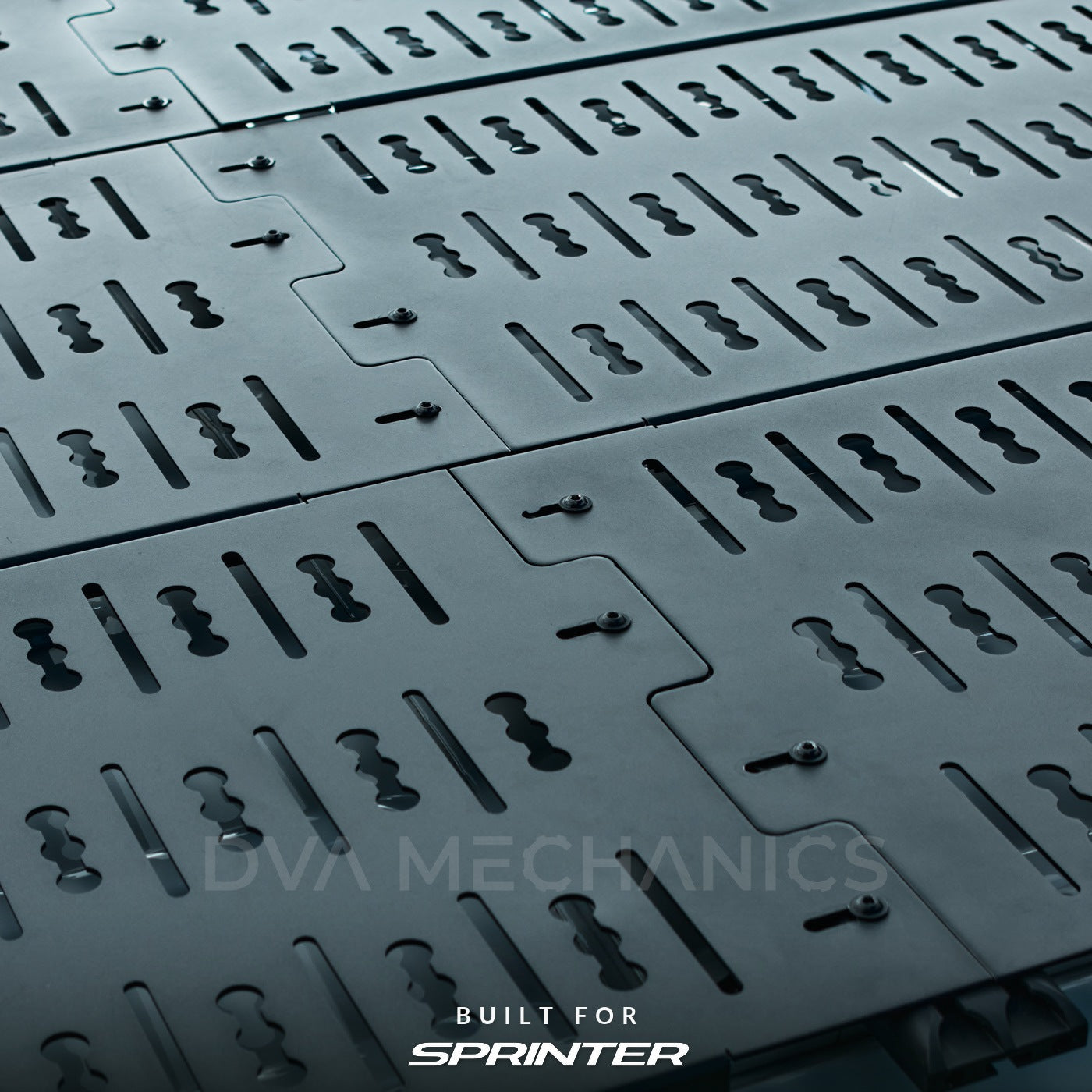

5mm formed aluminum — thicker than the 3/16" decking common in the market. Panels interlock edge-to-edge into a continuous flat surface that holds solid underfoot.
- Three panels span the full 58.5" Sprinter rack width
- Integrated tie-down slots + L-Track cut-outs across every panel
- Black powder coat — UV, salt, and corrosion resistant
The Structure
DualTrack-T™ Crossbars
Our Patent Pending dual-channel profile runs L-Track and 25mm T-Slot in parallel — both standards, usable simultaneously, no adapters.
- Accepts L-Track sliders, tie-downs, and awning mounts
- Accepts 25mm T-Slot accessories and light bars
- Curved aero edges suppress highway wind whistle
Choose your deck
Two sizes. Same engineering.

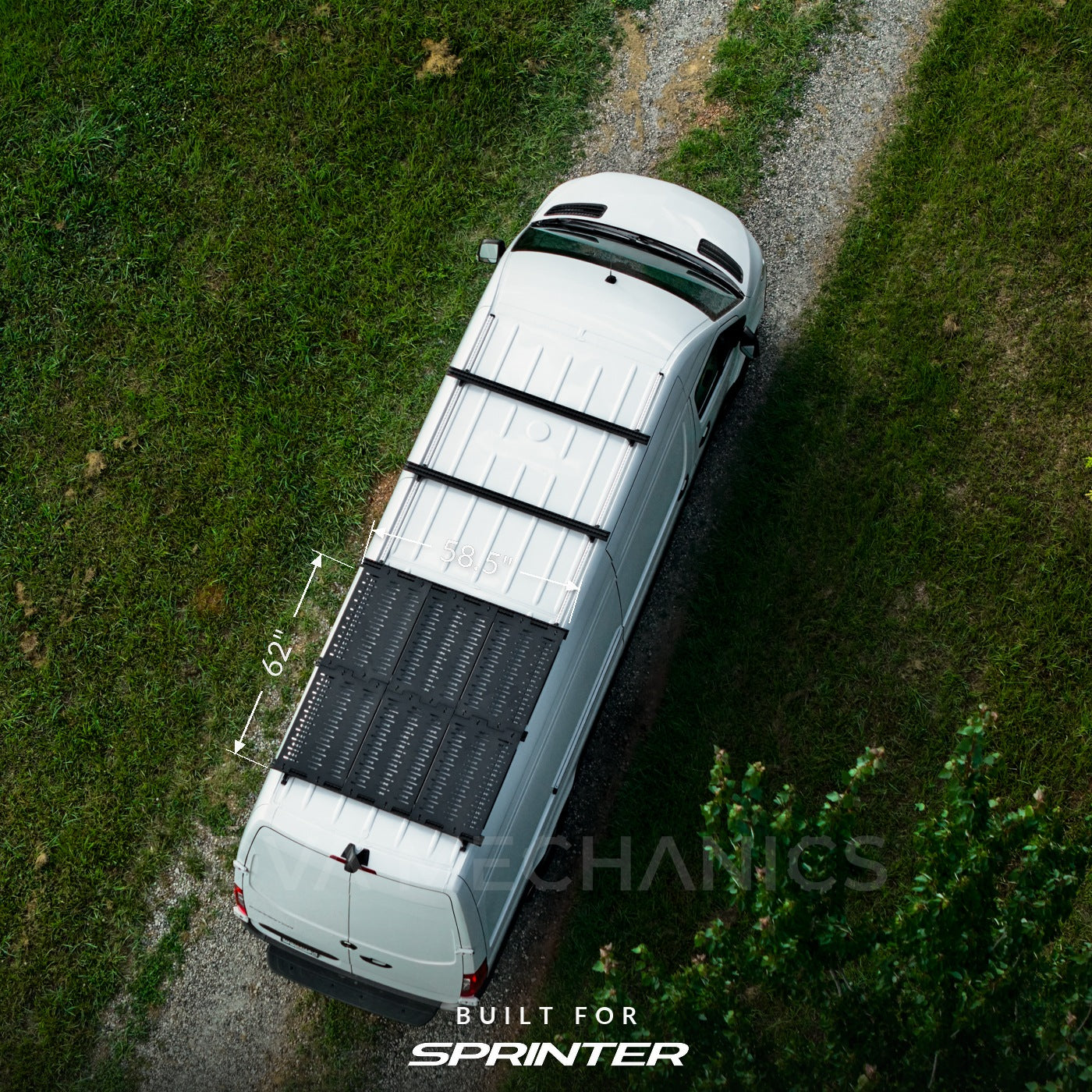

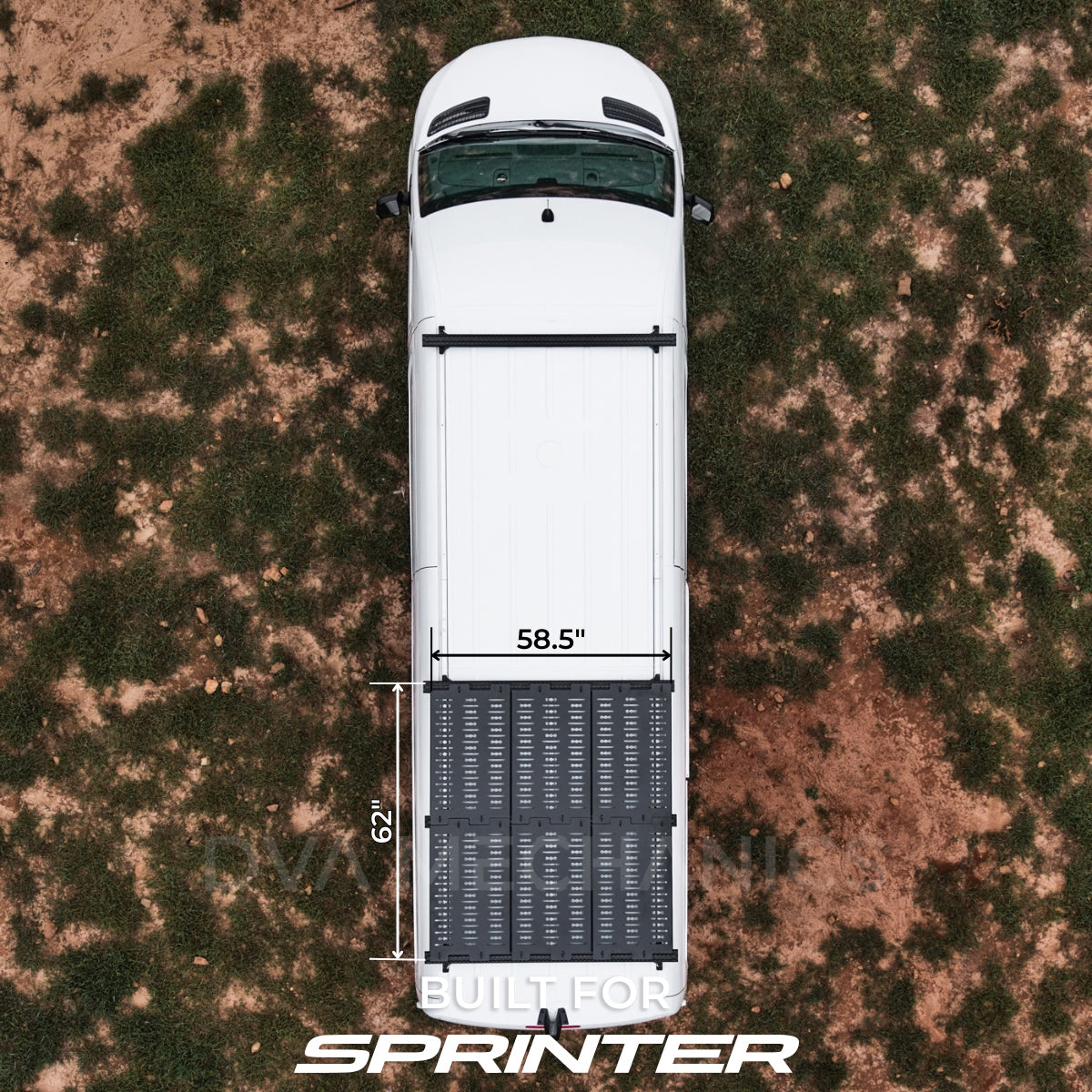

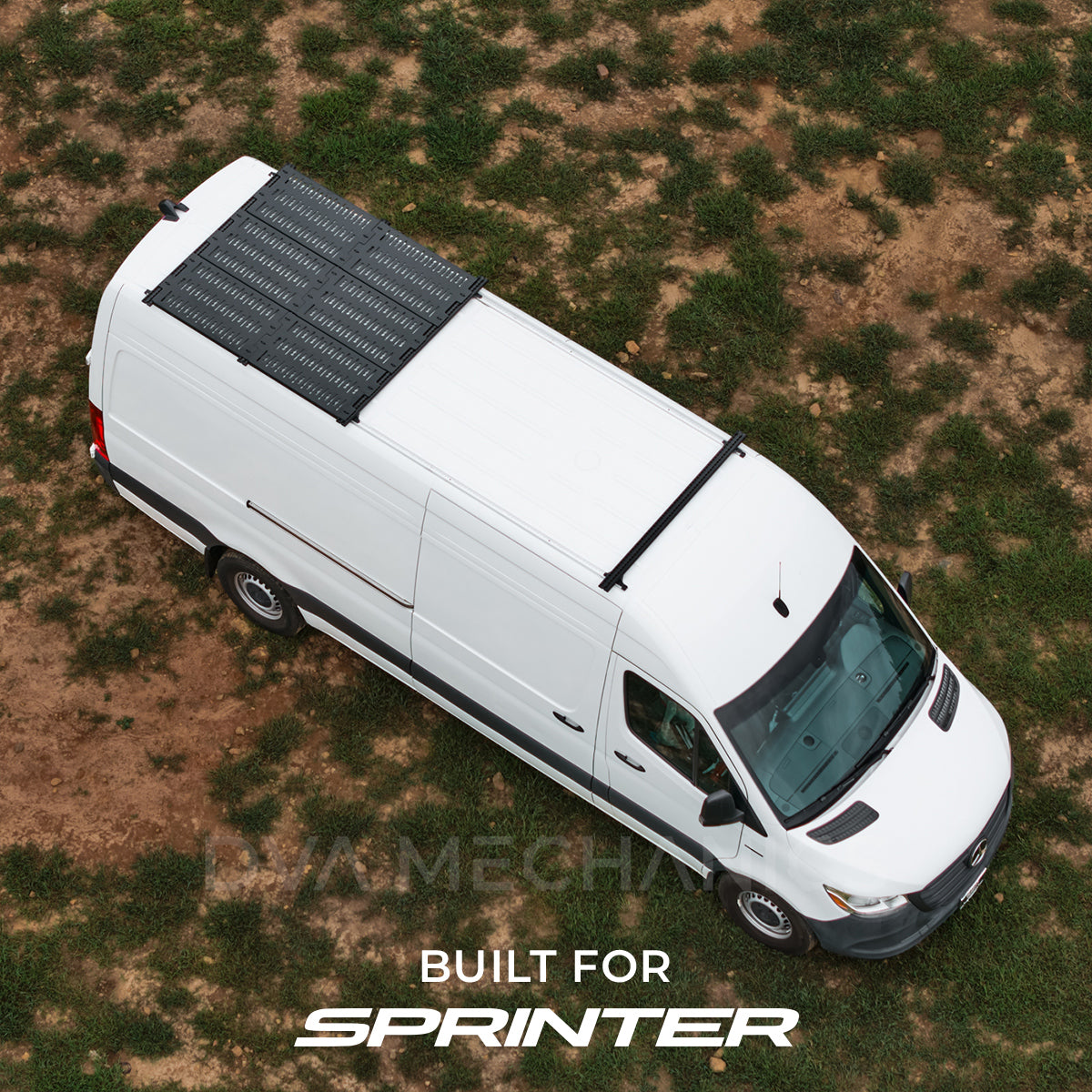

Cargo Deck
62" × 58.5"
Decks the rear cargo zone and leaves the forward roof clear for fans, A/C, solar, and vents. The working platform for most builds.
6DeckSpan™ panels
4DualTrack-T™ crossbars

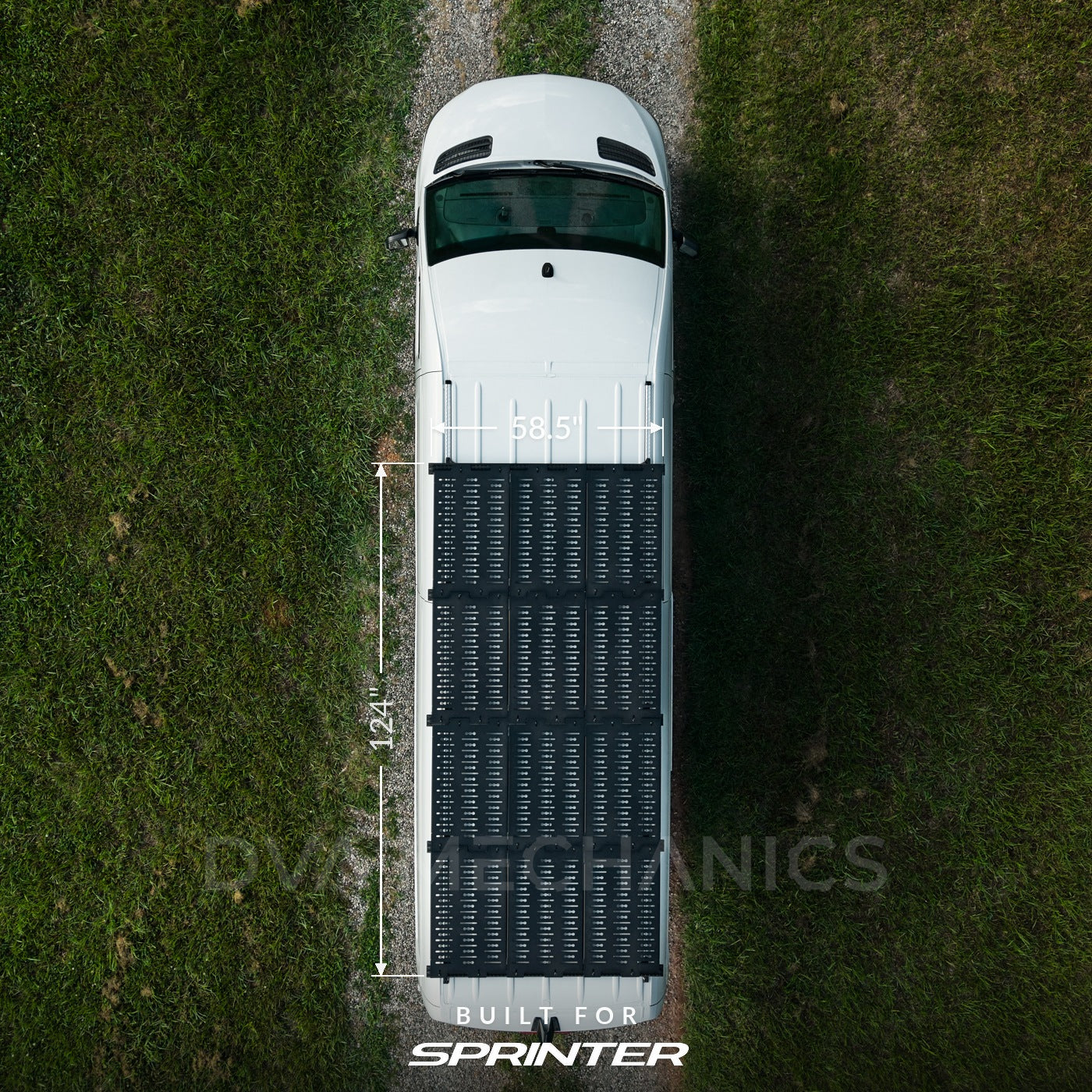

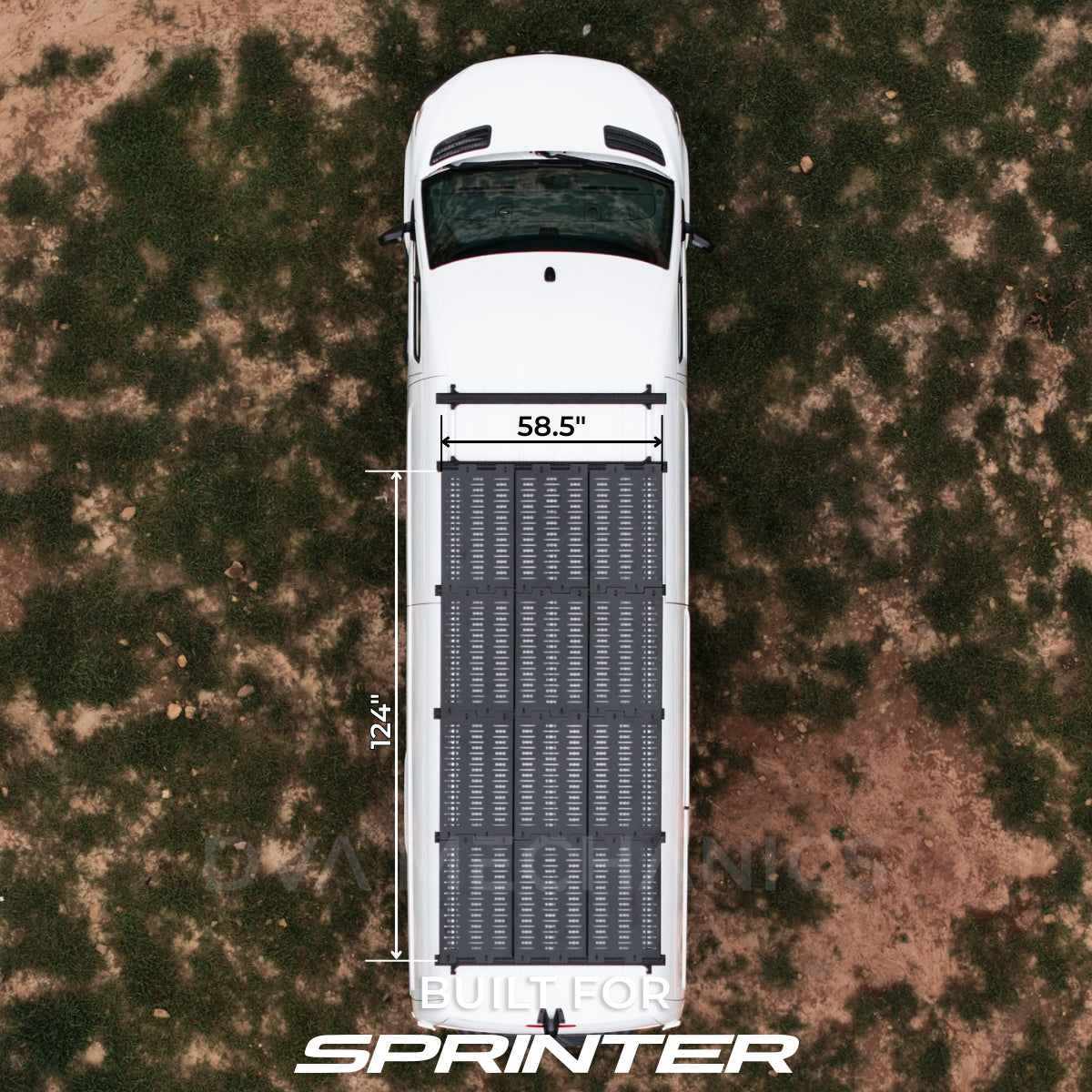

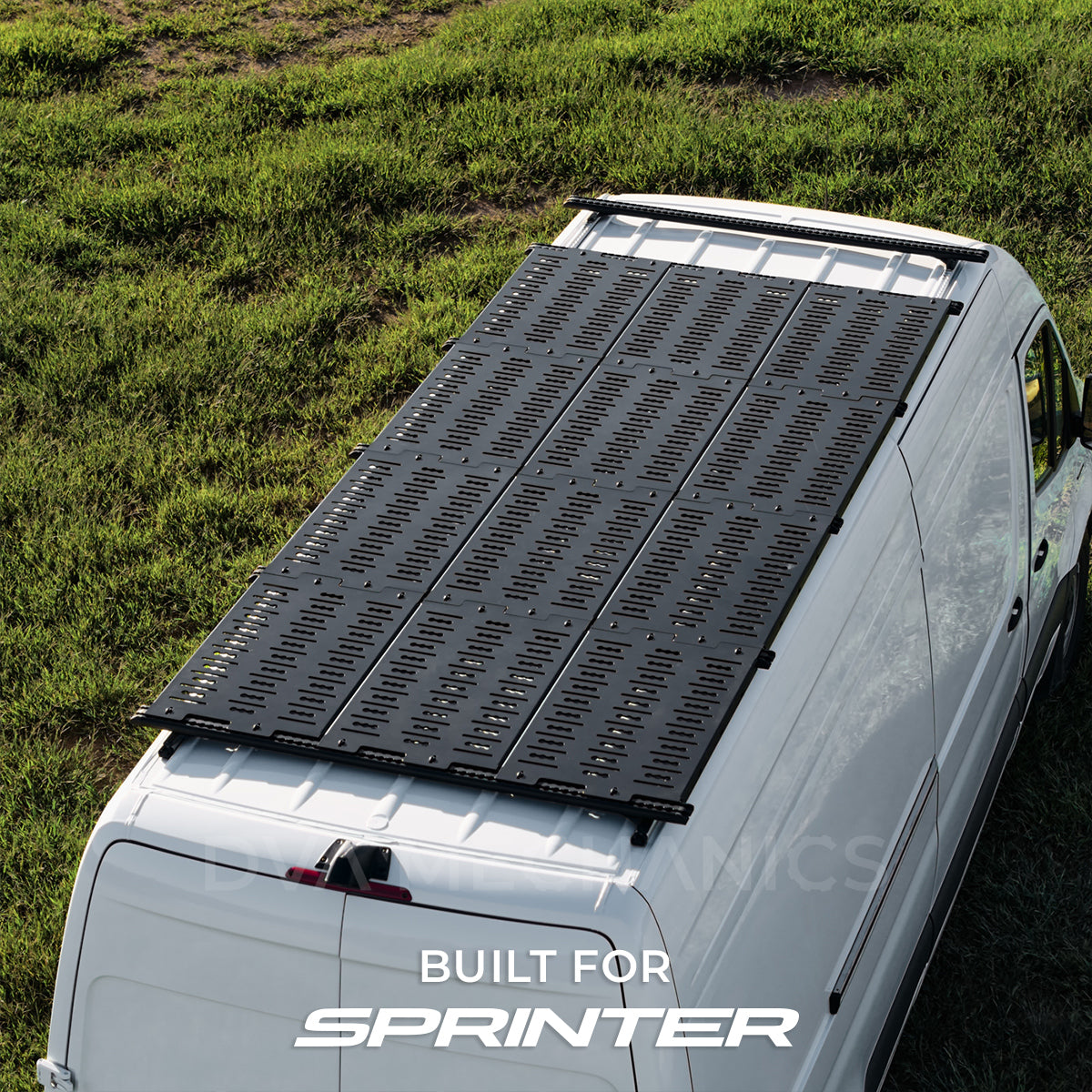

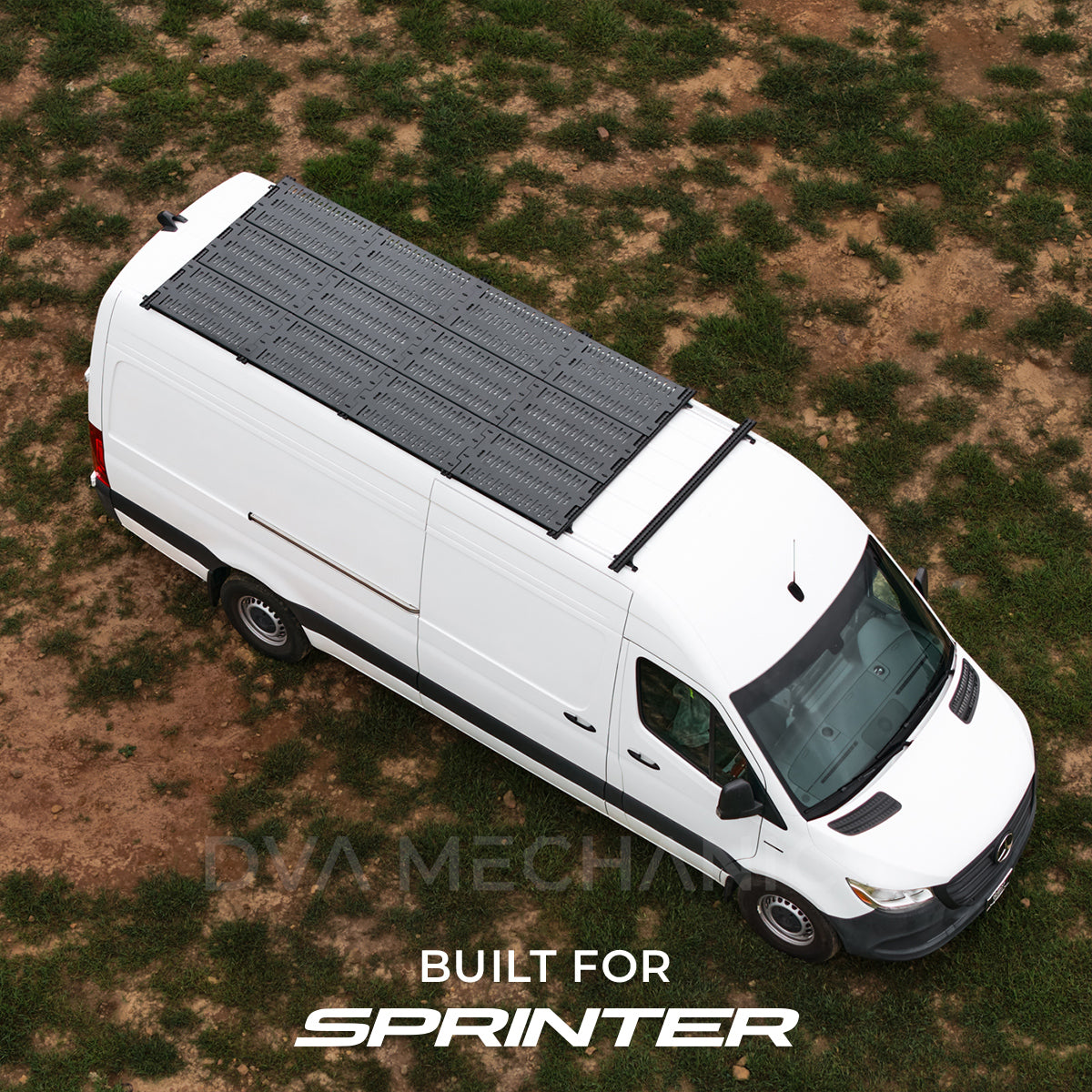

Full-Length Deck
124" × 58.5"
A continuous walkway and working surface across the full roof, front to back. The complete rooftop platform.
12DeckSpan™ panels
6DualTrack-T™ crossbars
All mounting hardware included with either size. Not sure which fits your build? Reach out before you order — we'll spec the layout with you.
Load reality
The van is the limit. Not the rack.
Both system sizes are rated beyond the Mercedes Sprinter's factory dynamic roof load limit. Distribute the load across the deck and load to your van's specification with confidence — the rack won't be the constraint.
Engineered details
Built to be stood on.
Designed to mount anything.

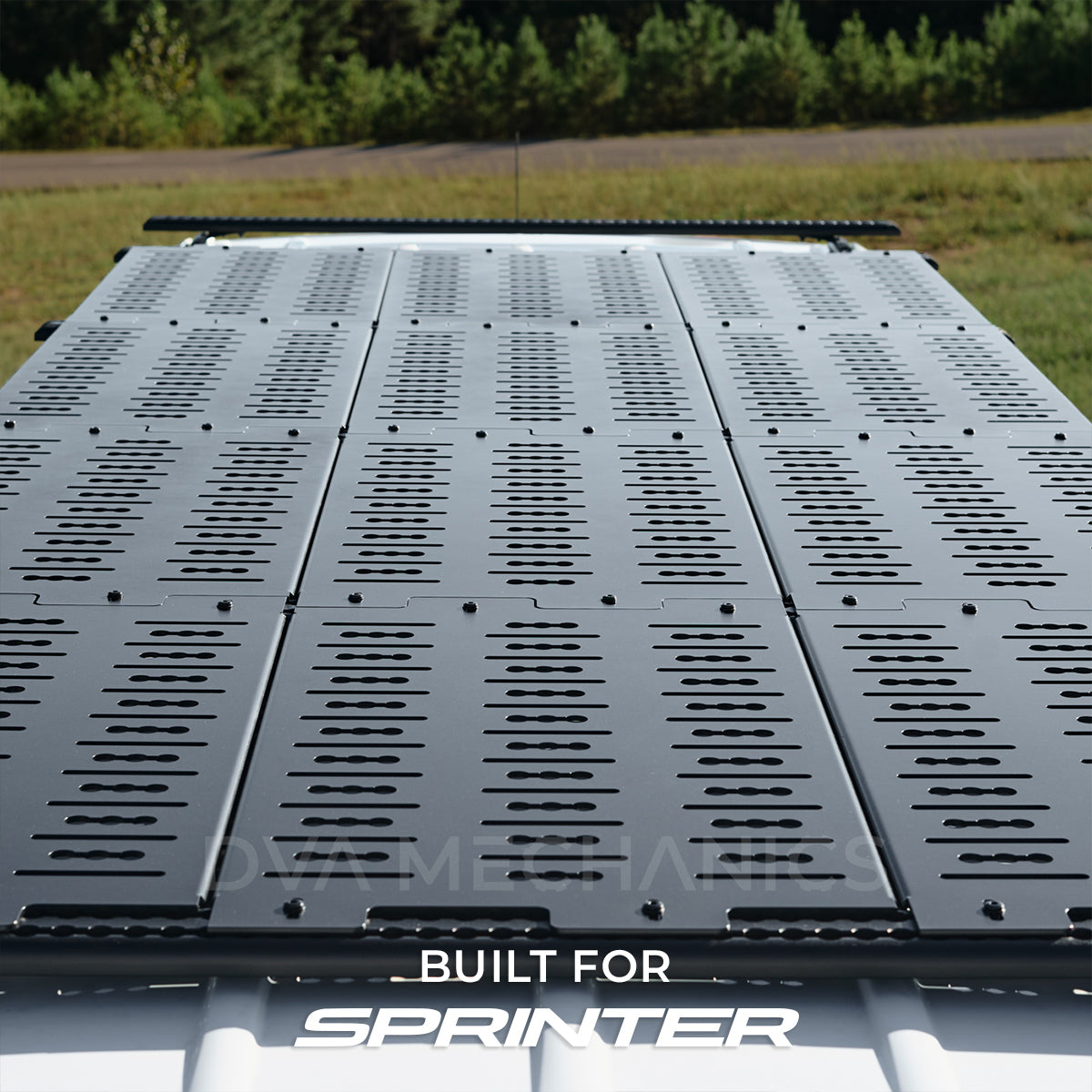

Walkable 5mm deck
Forming plus material thickness gives each panel real rigidity — flat underfoot, resists bow and bend. Load solar, service a fan, work from the roof.
Tie down anywhere
Slots and L-Track cut-outs run through the entire deck. Anchor straps, boxes, and recovery boards where the load balances — not where a rail happens to be.
Dual-channel crossbars
L-Track and 25mm T-Slot in parallel on every bar. Run both accessory ecosystems at once — no adapters, nothing to swap out.
No-drill, reversible install
Bolts to Sprinter OEM roof tracks or LoadSpan™ rails with basic hand tools. Every fastener serviceable. No permanent modification.
Quiet at highway speed
Curved leading and trailing edges deflect airflow smoothly, suppressing the whistle common to flat-top extrusions. Built for daily drivers.
Built for outside
Black powder-coated aluminum throughout — UV, salt, and corrosion resistant. Designed for vans that live outdoors year-round.
Fitment

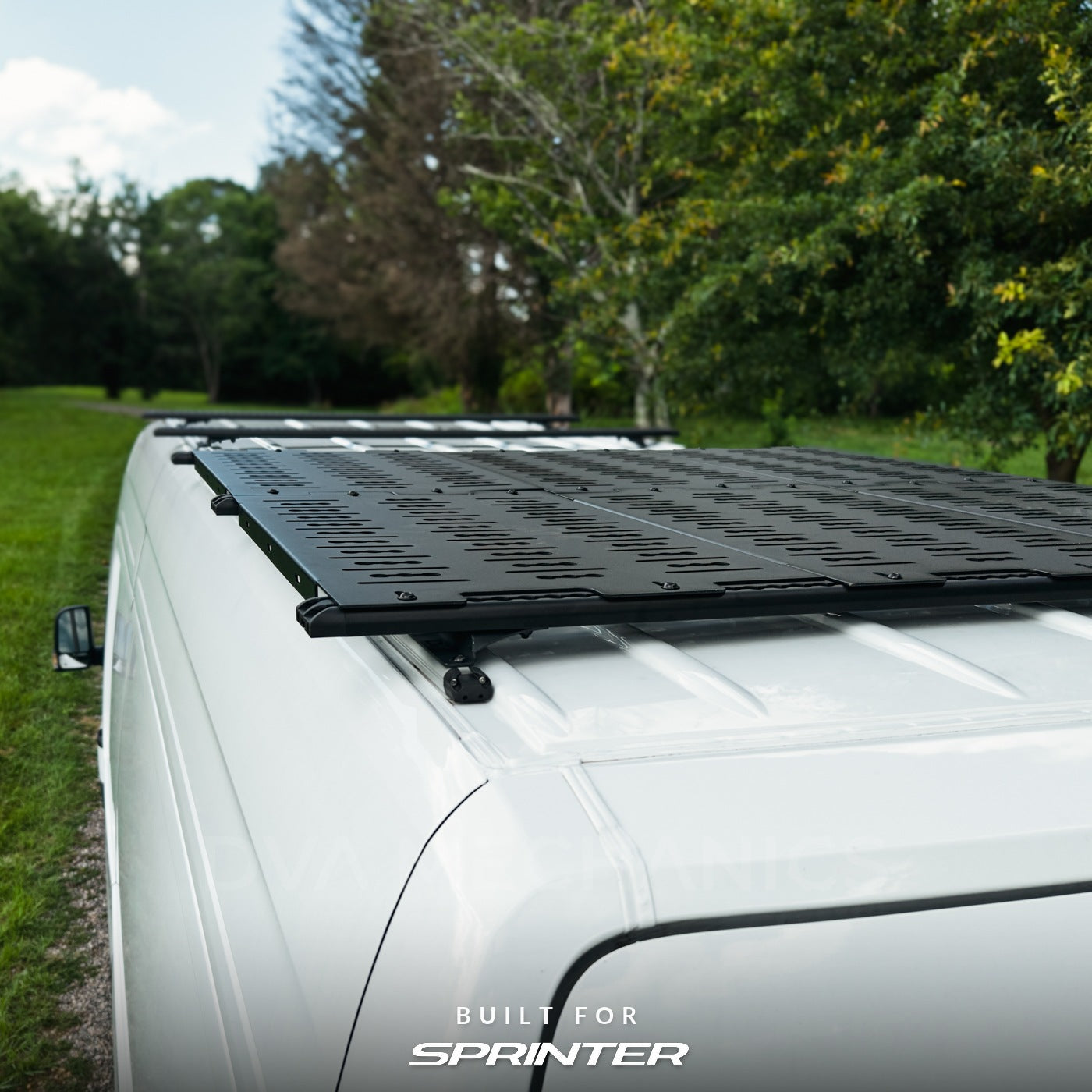

Mounts to the tracks you already have.
Option 1

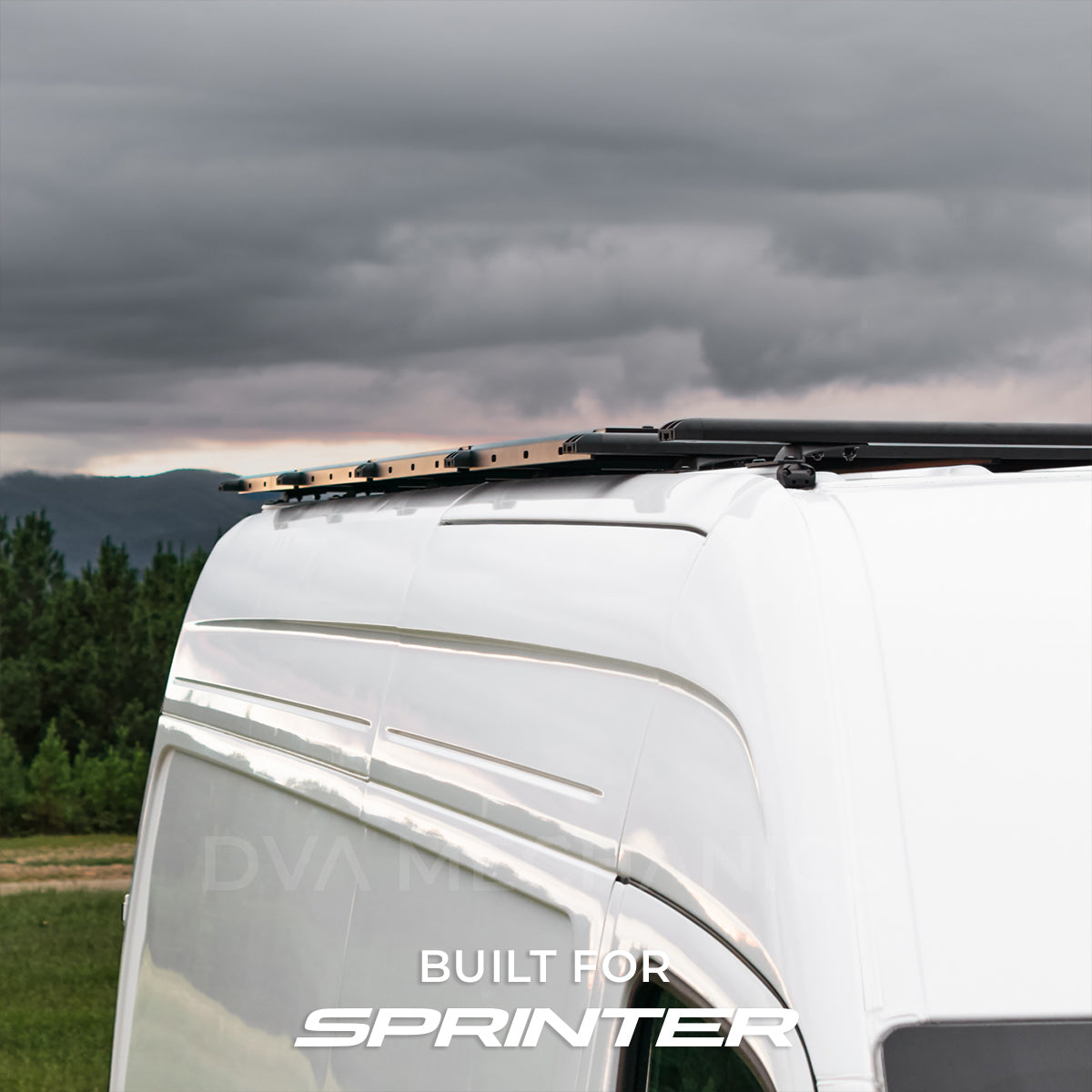

Sprinter OEM roof tracks
Bolts directly to the factory longitudinal tracks. No drilling, no roof penetration, fully reversible. Ready out of the box.
Option 2
DVA LoadSpan™ roof tracks
Our load-spreading rail system distributes weight across the roof structure and adds full-length L-Track + 25mm T-Slot channels along the van.
Specifications
Technical specs
| Deck material | 5mm formed aluminum, black powder coat |
| Crossbar material | High-grade extruded aluminum, black powder coat |
| Deck dimensions | 62" × 58.5" or 124" × 58.5" |
| 62" system includes | 6× DeckSpan™ panels · 4× DualTrack-T™ crossbars · all hardware |
| 124" system includes | 12× DeckSpan™ panels · 6× DualTrack-T™ crossbars · all hardware |
| System weight | 62" system: 139 lb · 124" system: 252 lb |
| Crossbar channels | Dual — L-Track + 25mm T-Slot, usable simultaneously (Patent Pending) |
| Deck tie-downs | Integrated slots + L-Track cut-outs across all panels |
| Load rating | Exceeds Sprinter factory dynamic roof load limit — vehicle rating governs |
| Mounting | Sprinter OEM roof tracks or DVA LoadSpan™ rails — no drilling, reversible |
| Designed & engineered | DVA Mechanics — USA |
Buying blockers
Questions before you build the roof
Can I actually walk on it?
Yes — that's the design brief. The 5mm formed panels hold flat underfoot and crossbar spacing is engineered to support standing loads across the full deck. Distribute weight sensibly, as on any rooftop platform.
Is the rack or the van the weight limit?
The van. Both system sizes are rated beyond the Sprinter's factory dynamic roof load limit — you load to Mercedes' specification for your van, and the rack won't be the constraint.
Do I need LoadSpan rails, or will my factory tracks work?
Factory tracks work — the system bolts directly to Sprinter OEM longitudinal roof tracks. LoadSpan™ rails add load spreading across the roof structure plus full-length accessory channels, which is worth it for heavy or permanent builds.
Can I still use my existing L-Track and T-Slot accessories?
Yes. The DualTrack-T channels accept standard L-Track fittings and standard 25mm T-Slot hardware — simultaneously. Use what you already own.
What about my roof fan, A/C, vents, or Starlink?
The 62" system decks the rear cargo zone and leaves the forward roof clear. On either size, panels can be spaced during layout to clear roof penetrations while keeping solid footing where you need it.
Will it be loud at highway speed?
The crossbars use a curved-edge aero profile specifically to suppress the wind whistle common to flat-top extrusions, and the deck sits low and clean above the roofline.
Is drilling required?
No. The install is bolt-on to existing roof tracks, uses basic hand tools, and is fully reversible with no permanent modification.
One deck. Two standards. Zero compromise.
Patent Pending · Engineered by DVA Mechanics, USA
