INEOS Grenadier: LED Side Flood Light
Roof Bar Mount · DTP Plug-In · Wide Flood Beam · 1 or 2 Light Kit
30 W
Per light
2,400 lm
Per light
IP68
Waterproof & dustproof
EXT3
Recommended DTP port
Wide-area flood illumination for camp, work, and recovery — using the Grenadier's factory roof bar and power system. The DVA LED Side Flood Light delivers 2,400 lumens of broad flood output per unit, pre-fitted with a DTP connector for direct plug-in to EXT3. No wiring runs, no drilling, no modifications to the vehicle.

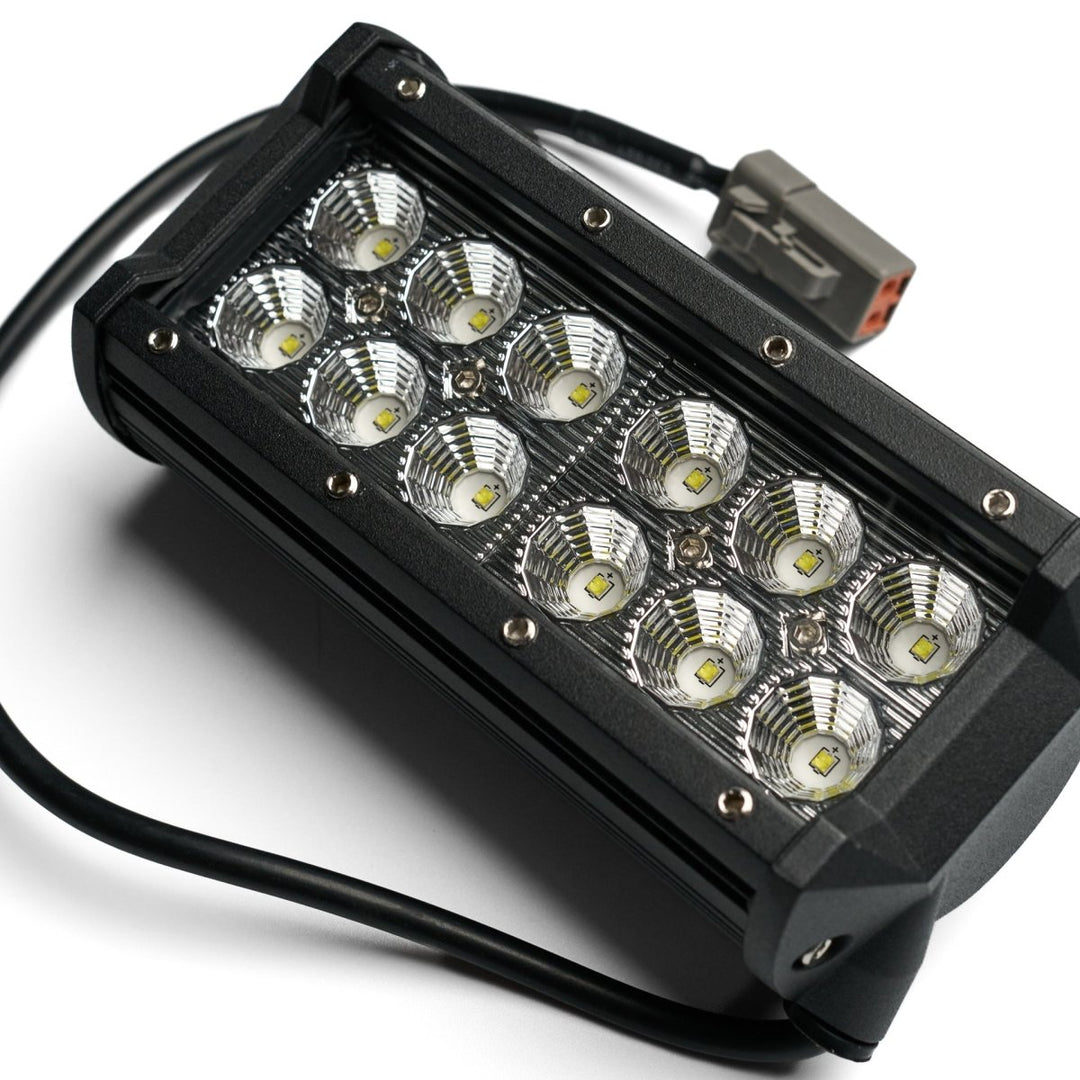

2,400 lm · Wide flood beam
DTP plug-in · EXT3 rooftop port
No drilling · Factory roof bar clamp

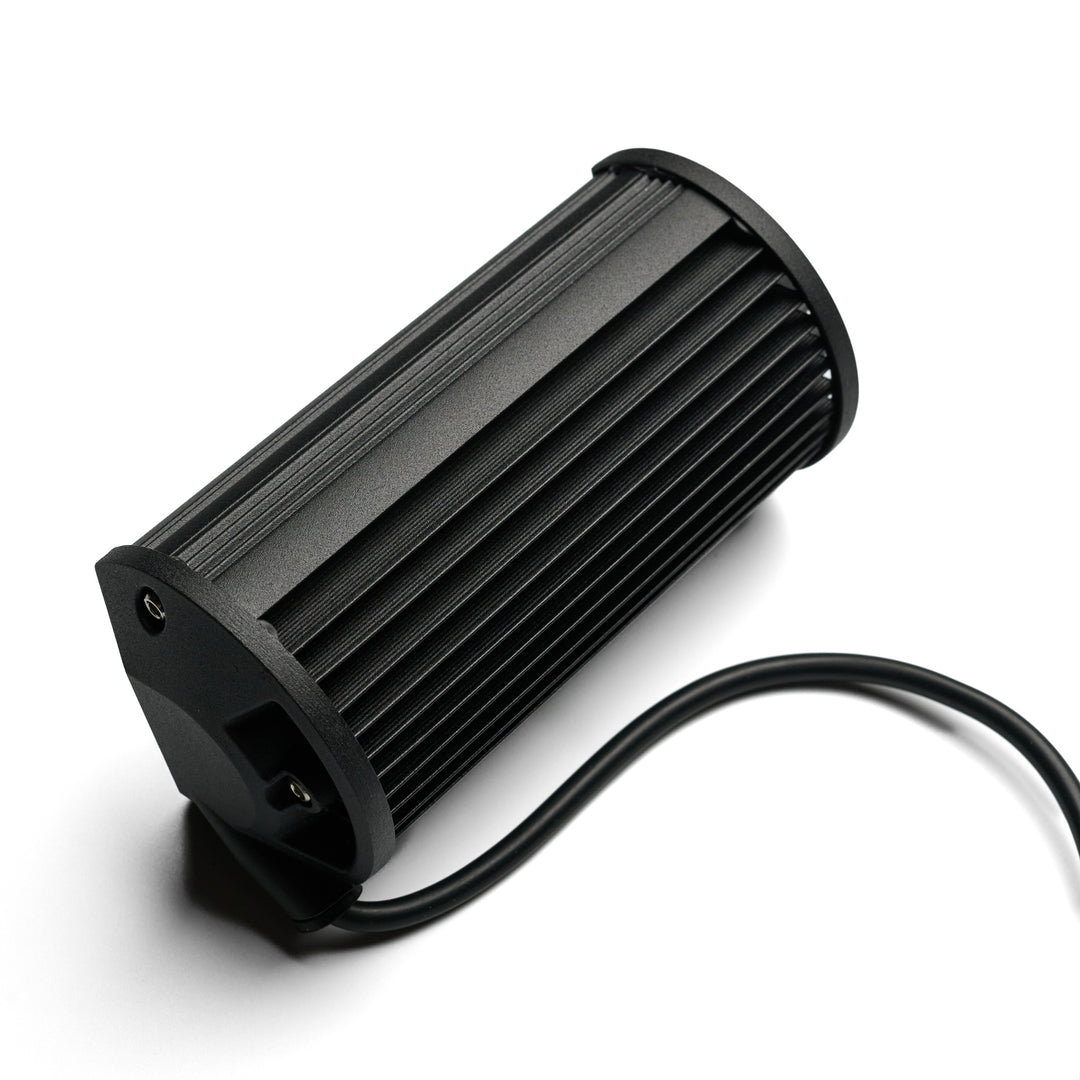

IP68-rated · Aluminum with cooling fins
1 or 2 light · Kit options available
Flood Light vs Side Light — Which Do You Need?
This Product
LED Side Flood Light
Wide flood beam — broad, even area coverage. Best for camp setup, recovery operations, work zones, and site lighting where coverage close to the vehicle matters more than throw distance.
Alternative
LED Side Light
Focused spot/wide beam — directional trail illumination optimised for visibility at range. Includes snap-on yellow lens for fog and dust. Same DTP plug-in and roof bar mount.
Engineered for the Grenadier
- DTP Plug-In Pre-fitted connector plugs directly into EXT3. No relay, no wiring runs.

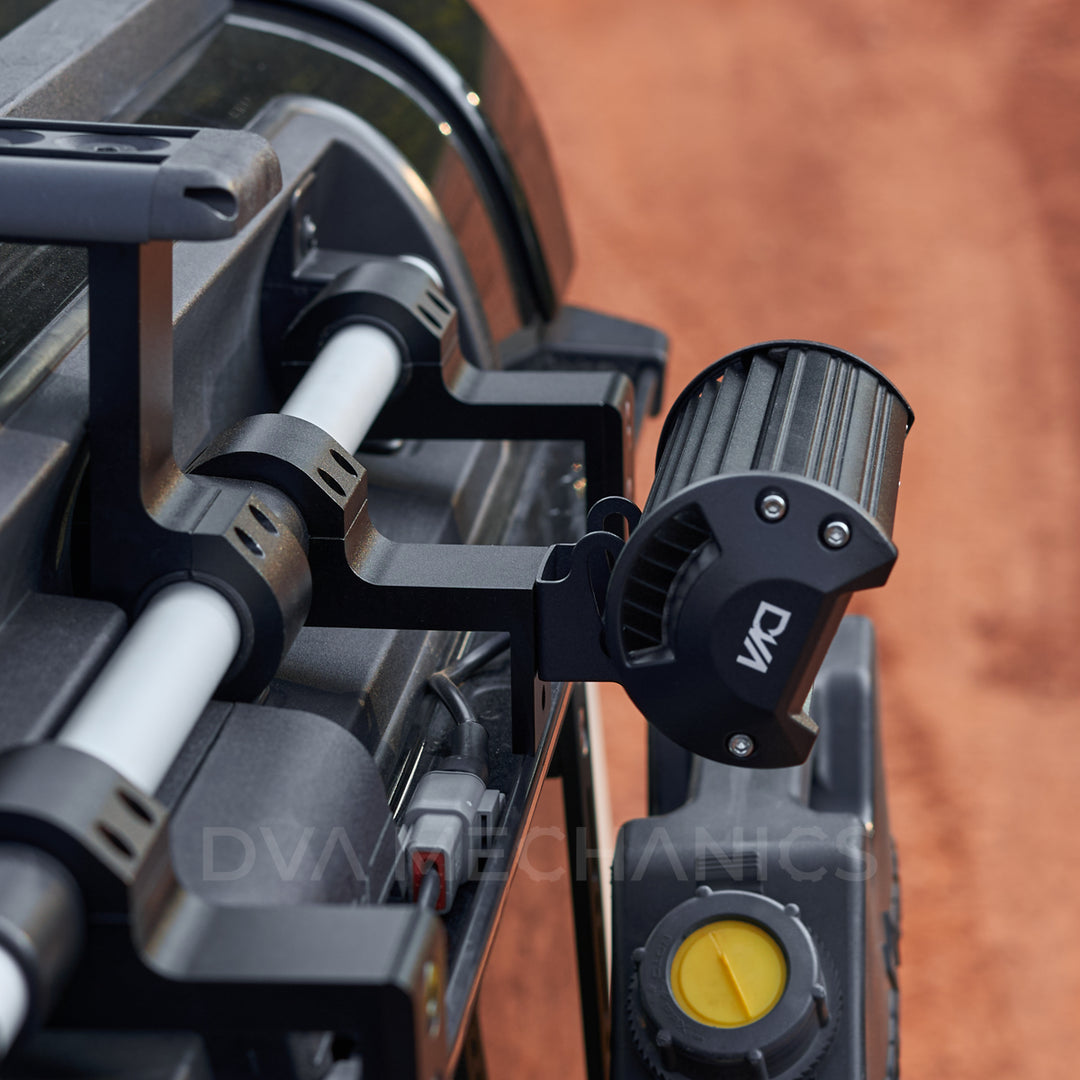

- Roof Bar Mount Precision-machined clamp. Driver or passenger side. No drilling. Hardware included.
- 30W / 2,400 lm Broad flood beam. Aluminum housing with cooling fins. IP68 rated.
Installation

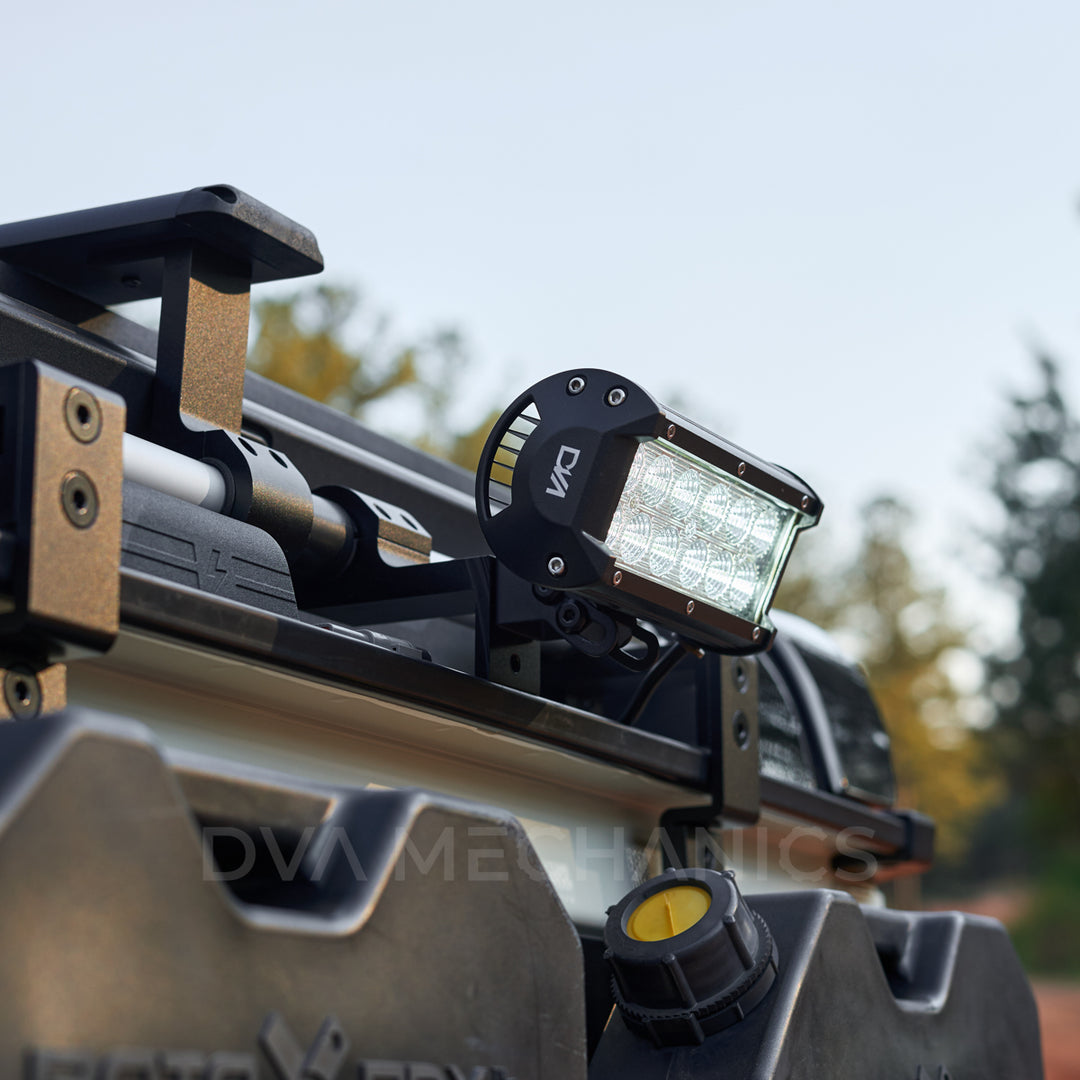

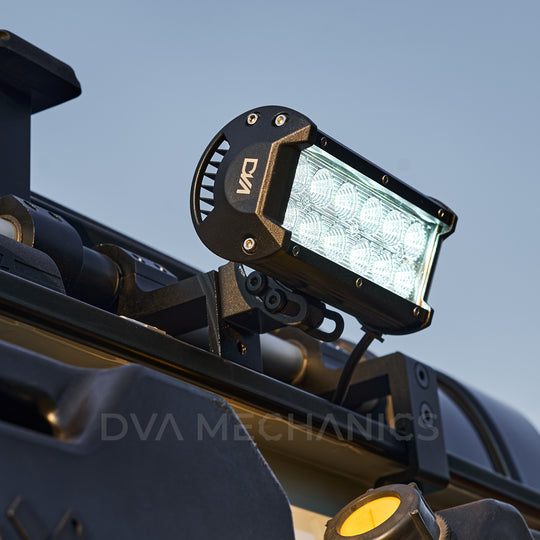

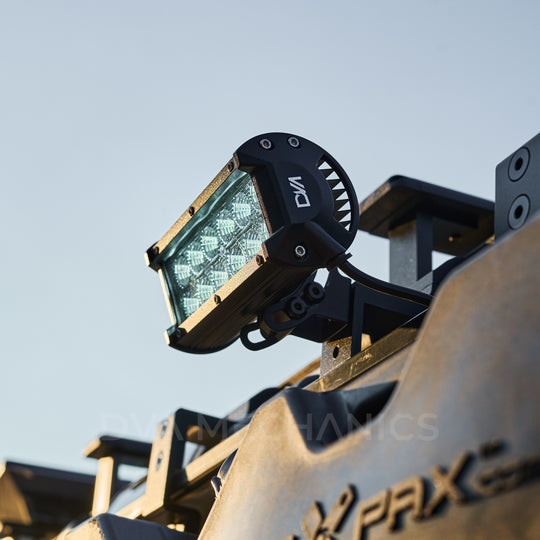

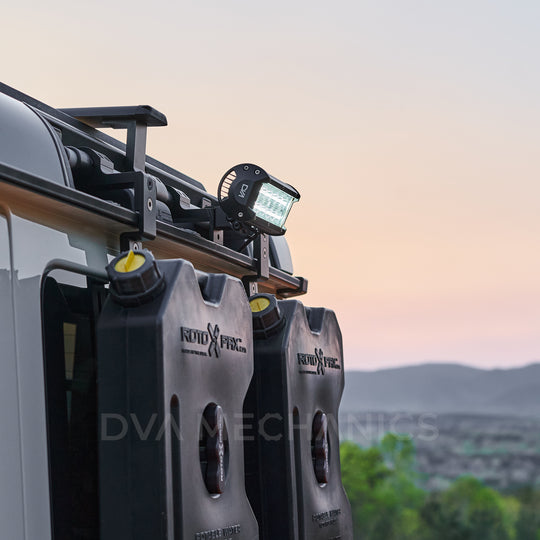

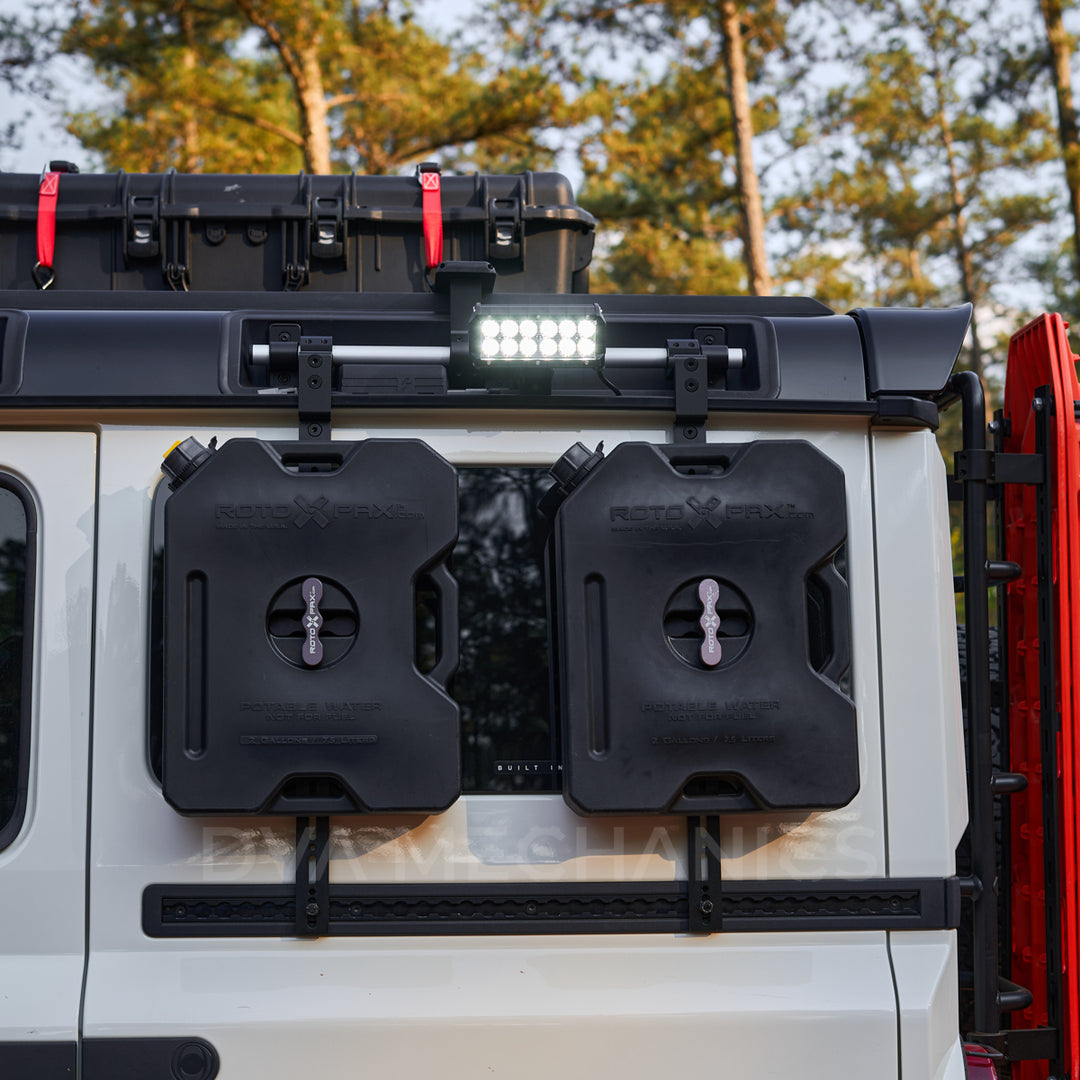

- Clamp mounting bracket to factory Grenadier roof bar — driver or passenger side
- No drilling, cutting, or modification to the vehicle
- Plug pre-installed DTP connector into EXT3 rooftop port
- 2-Light Kit: connect both lights through the included DTP splitter to one EXT3 port
- All hardware and hex keys included — no additional tools required
Select Your Kit

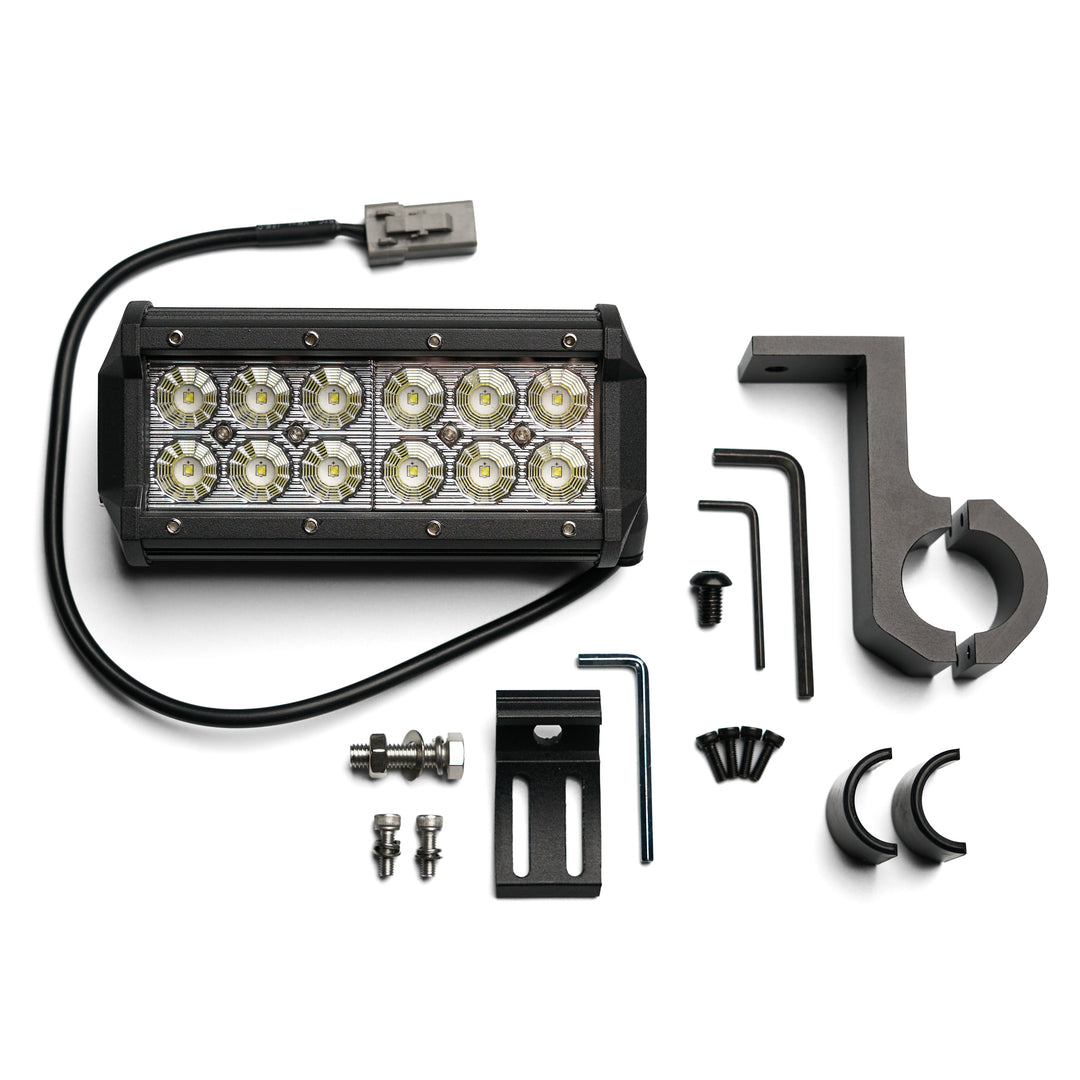

1-Light Kit
One flood light — driver-side or passenger-side roof bar position.
- 1 × 30W LED Flood Light (2,400 lm)
- Grenadier roof bar clamp + bracket
- Stainless hardware + hex keys
- Pre-installed DTP connector
Best Value
2-Light Kit
Both sides — 4,800 lm total flood coverage from a single EXT3 port.
- 2 × 30W LED Flood Lights (2,400 lm each)
- Dual roof bar clamps + brackets
- Stainless hardware + hex keys
- Pre-installed DTP connectors
- 1 × DTP splitter (both lights, one EXT3 port)
Specifications
| Specification | Details |
|---|---|
| Vehicle | INEOS Grenadier (all trims) |
| Beam Pattern | Wide flood |
| Power per Light | 30W |
| Lumens per Light | 2,400 lm |
| Total Output — 2-Light Kit | 4,800 lm combined |
| IP Rating | IP68 — waterproof and dustproof |

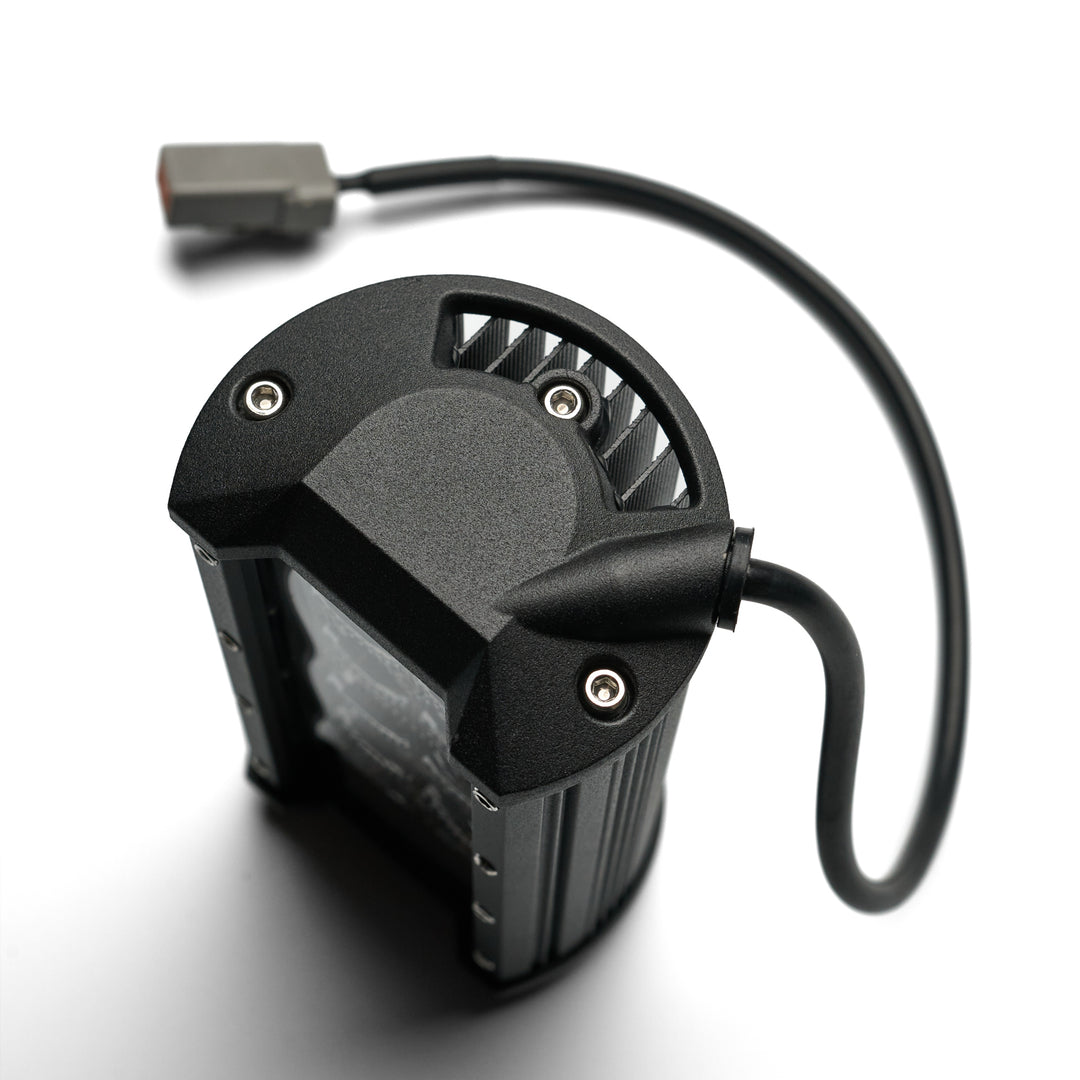

| Housing | Aluminum with cooling fins |
| Connector | Deutsch DTP (pre-installed) |
| Recommended Port | EXT3 — 3 access points: above left front door, left rear door, and right rear door |
| Mounting | Factory roof bar clamp — no drilling |
| Variants | 1-Light Kit · 2-Light Kit (includes DTP splitter) |
Frequently Asked Questions
Why DVA Mechanics
Purpose-built for the Grenadier. Engineered for real-world off-road use.
Mount, plug in, drive. No universal adapters, no compromise — clean factory integration designed by owners who run the same gear.
Build Out Your Lighting System
Directional Beam
LED Side Light
Same DTP roof bar mount, spot/wide beam for trail use at range. Includes snap-on yellow lens. Single or Dual kit with DTP splitter.
View Product →Overhead LightingLED Roof Light Bar
Forward roofline lighting. Pair with flood side lights for full 270° coverage — all using the Grenadier's native DTP connectors throughout.

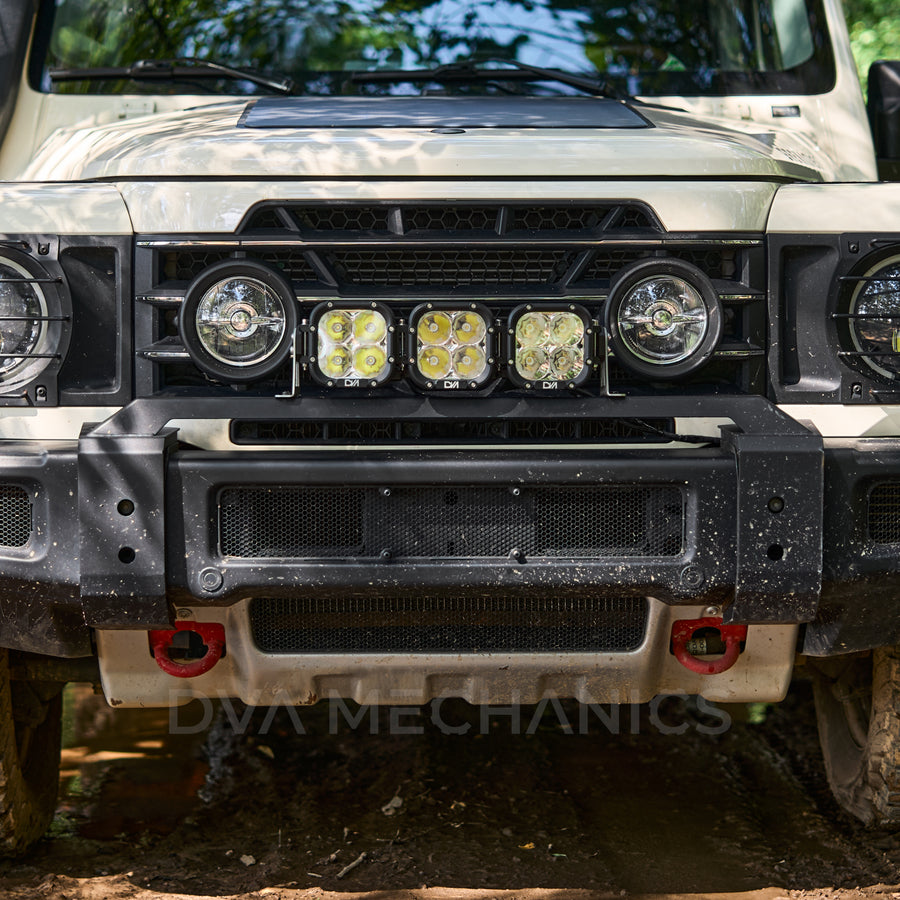

View Product →Forward LightingFront Bumper Light Kit
Factory-integrated bumper lighting — mount plus 3-light Cree bar (~110W, ~13,200 lm). Completes the forward coverage alongside roof and side lights.
View Product → J
These are a great addition. Solid mounts, sturdy lights.
S
Super easy plug and play lights. Bright and beautiful
R

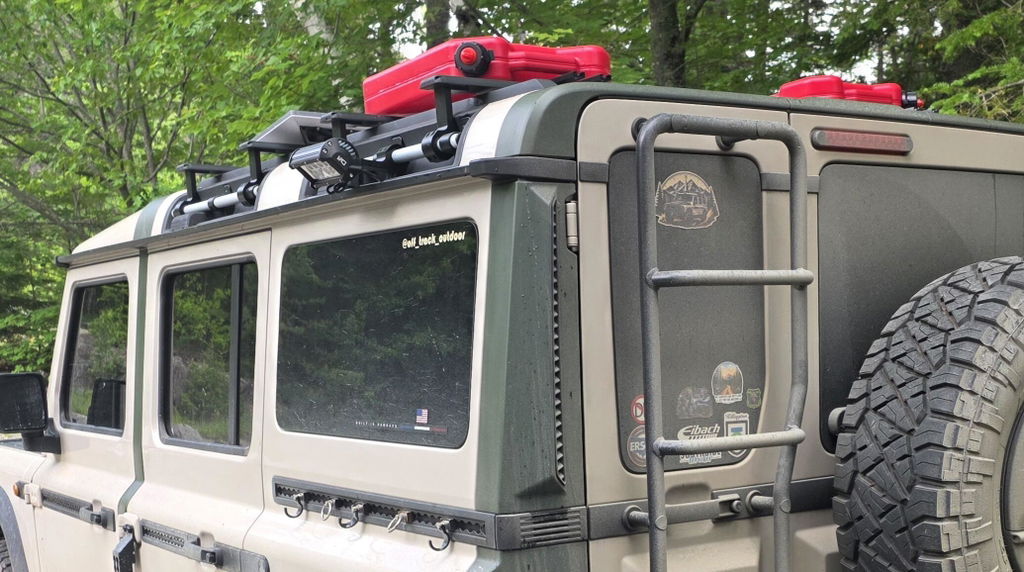

Product were as advertised and simple installation (without a roof rack). I wish the splitters were just a little longer to space the lights out. Very difficult to install with a pioneer roof rack already installed. Had to install two on the rack because the the gutter supports for the rack block two forward rails. Not a fault of the lights. I would recommend they pack these in a seperate box for shipping. While the lights were intact on arrival, the boxes were destroyed from shipping.
A
Easy install. Plug N play. very adjustabtable. Bright wit a good pattern.
S
Mount fits perfectly, Light appears to be a solid unit, DTP to Anderson plug cable is a game changer for solar panel mat and power into roof top tent. Delivery to other side of the World was quick and efficient. Now just hoping there will be a greater focus on Quartermaster accessories. Thanks Team.
F
Lites are great plug and play, twice now i ordered 2 2paks and received only one 2 pak, was told it would be corrected going forward but obviously wasn't.Do better DVA
A
Really well built—very solid. Well designed— they look great.
My only negative is they provide no printed directions. Just a QR Code—okay that’s fine; but when you click through it brings you to YouTubes videos for ALL their products. Okay, I search further, to get to side lights—bingo, only problem is they have a bunch of installs of discontinued side lights—no help at all.
Is it too difficult to just print a one page set f directions? Or even a specific QR code for the install of the specific product (narration is also very helpful instead of background music.
Don’t get me wrong—I have already ordered two more products from here—great products, mediocre directions.
D
Super easy assembly. The accompanying video instructions are a great resource.
G
Great product.Fit and finish are stellar. If I had to nit pick anything, I'd wish that the brackets were a bit shorter to suck the lights closer to the roof. But that's more of a personal preference and everything works perfectly as described.
