LoadSpan-T™ Roof Rails for Mercedes-Benz Sprinter
LoadSpan-T™ Roof Rails for Mercedes-Benz Sprinter
Full-length extruded aluminum rails with dual parallel channels — L-Track + 25mm T-Slot on every rail, both simultaneously supported. Bolts to factory pre-punched holes — no drilling. Fits 2019+ VS30 (144", 170", 170" Extended).
Free US shipping · Ships from Alpharetta, Georgia, USA · 30-day returns
Every part you need — in the box.
Open the box, thread the bolts, seal, and you're done. No trips to the hardware store.
- 2× extruded aluminum rails (144", 170", or 170" Extended)

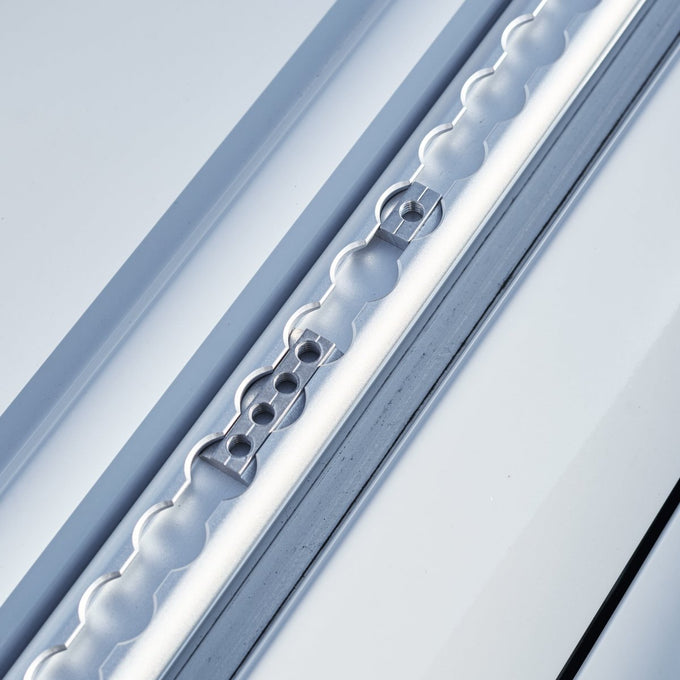

- 8× M8 stainless steel sliders (pre-installed)
- Butyl tape seal strip

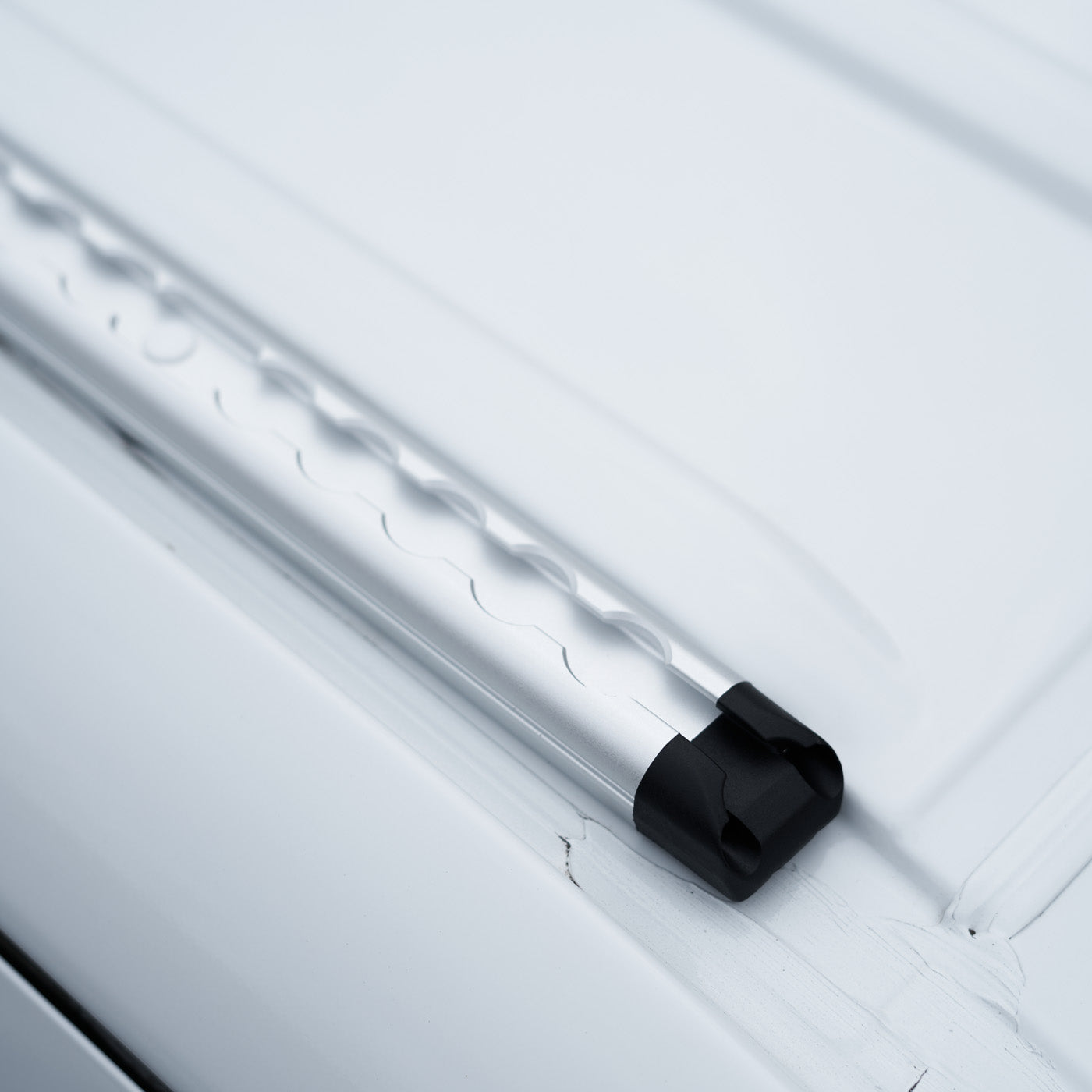

- OEM-style end caps (2 sets)
- M8 stainless steel bolt kit
- Printed install guide
No drilling on VS30 (2019+). Other Sprinter models require drilling.
Three engineering decisions, measured in daily use
Full-length load distribution
One continuous extrusion per side. Load on a bracket, crossbar, or tie-down spreads along the rail and into multiple factory roof mount points — instead of concentrating at one spot.
Dual channels — L-Track + 25mm T-Slot in parallel
Two channels run the full length of every rail, side-by-side in the same extrusion: industry-standard L-Track and a 25mm T-Slot channel. Both are simultaneously supported — no switching, no adapters. Standard L-Track studs, rings, tie-downs, solar feet and 25mm T-Slot crossbar feet all bolt in directly.
No-drill factory hole mounting
Bolts through the Sprinter's factory pre-punched roof holes. Butyl tape seals the interface. 60–90 min install, one person, basic hand tools. Reversible.
Three steps. Sixty to ninety minutes. One person.
Thread
Slide pre-installed sliders through the factory pre-punched roof holes — no drilling on VS30 (2019+).
Seal
Apply butyl tape under the rail, seat the rail into position on the roof.
Bolt
Secure nuts from the interior, fit OEM-style end caps, reinstall headliner trim — you're done.
Full walkthrough → Read the engineering guide

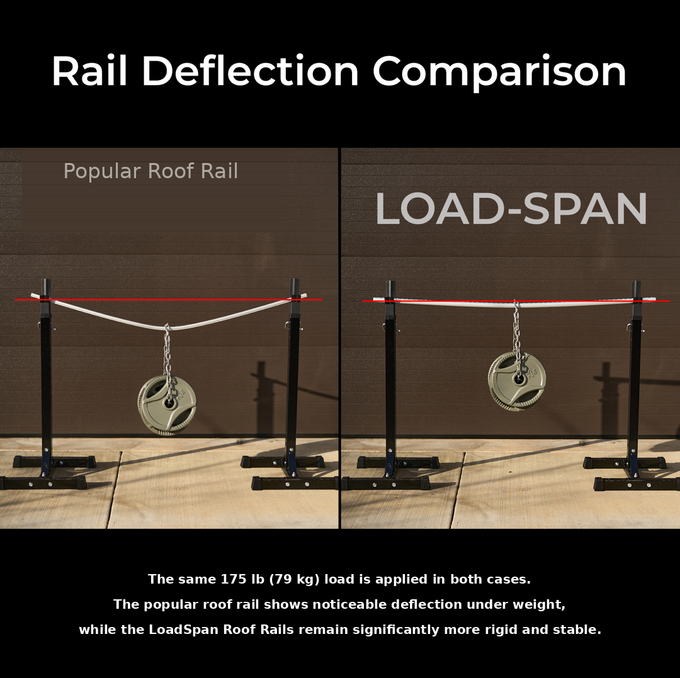

LoadSpan Roof Rail Deflection Analysis →
50" span, 175 lbf center load. Back-calculated flexural rigidity, seven dynamic load scenarios, and fatigue-life projections — referenced to the Mercedes-Benz BEG (Body & Equipment Guidelines). The published deep-dive engineering guide that's been cited in Sprinter owner forums and overland community threads.
What you can mount
| Accessory | Works with LoadSpan-T? |
|---|---|
| DualTrack-T™ crossbars | ✓ Yes — bolt directly to the full-length rail |
| Solar panels | ✓ Yes — standard L-Track feet and 25mm T-Slot feet both supported |
| Fiamma awnings | ✓ Yes — requires LoadSpan-T plus DualTrack-T crossbars |
| Standard M8 crossbar feet | ✓ Yes — kit includes 8× M8 sliders |
| Cargo baskets / roof boxes | ✓ Yes — via DualTrack-T crossbars |
| L-Track accessories (studs, rings, anchors) | ✓ Yes — direct mount into the rail's integrated L-Track channel |
| 25mm T-Slot accessories (M8/M10 T-slot bolts, crossbar feet, clamps) | ✓ Yes — direct mount into the parallel 25mm T-Slot channel, same rail |
| NCV3 Sprinter (2007–2018) | ✗ No — VS30 (2019+) only without drilling. Other models require drilling. |
Awning note: rails alone carry solar, L-Track, and 25mm T-Slot accessories directly. Awnings need a clamp surface — pair LoadSpan-T with DualTrack-T crossbars and Fiamma-style awnings bolt straight on.
Technical specifications
| Price (pair) | $349 (reg. $399) — free US shipping |
| Load rating | 330 lb dynamic (while driving) — limited by the Mercedes-Benz Sprinter roof, not the rail. Same ceiling for Standard, High, and Super-High roof. |
| Material | 6061-T6 extruded aluminum, anodized finish |
| Channels | Integrated L-Track + 25mm T-Slot, full-length, running in parallel (both simultaneously supported — no adapters required for either) |
| Hardware included | Stainless bolt kit · 4× M8 single-hole sliders · 4× M8 four-hole sliders · butyl tape · OEM-style end caps · install guide |
| Fitment | Mercedes-Benz Sprinter VS30 (2019–present) · 144", 170", 170" Extended · all roof heights |
| Install | 60–90 min · one person · basic hand tools · no drilling · reversible |
| Warranty | 2-year DVA manufacturer warranty |
| Ships from | Alpharetta, Georgia, USA (USA) |
| Sprinter length | Rail length | Weight (pair) |
|---|---|---|
| 144" | 118.3 in (300.6 cm) | 8.4 lb (3.8 kg) |
| 170" | 158.5 in (402.6 cm) | 11.3 lb (5.1 kg) |
| 170" Extended | 173.5 in (440.6 cm) | 12.3 lb (5.6 kg) |

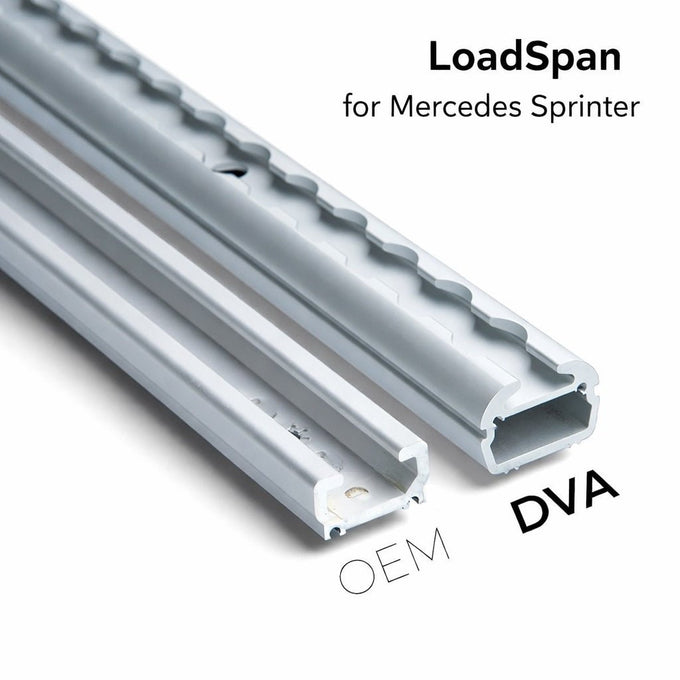

LoadSpan-T vs. the factory option
| Spec | LoadSpan-T | Factory Option (OEM) |
|---|---|---|
| Price (pair, 144") | $349 (sale) | $699 dealer / $899 list |
| Load rating (dynamic) | 330 lb | 330 lb (same Mercedes roof ceiling) |
| Channel integration | L-Track + 25mm T-Slot in parallel, full-length | None — plain mounting track |
| Warranty | 2-year DVA manufacturer warranty | MB part warranty via dealer |
| Install | 60–90 min, 1 person, factory holes, butyl seal | Same factory holes, identical process |
| Hardware included | Stainless kit + 8× M8 sliders + butyl tape + end caps + guide | Rails only at most dealers |
Same roof ceiling. Same install. Dual L-Track + 25mm T-Slot channels in parallel. About half the price.
What owners say
"Great product. Fits perfectly, excellent customer service. Shipped to France in a few days. I recommend!"
"Love the quality. I wish they made more stuff for Mercedes."
Reviews collected and verified by Judge.me. Full review history appears on the product page.
LoadSpan-T™ for your Sprinter
Jump to Add to Cart ↓2,500+ owners 4.8★ across DVA 2-year warranty Free US shipping
How it mounts
- Pull the roof headliner trim where the factory pre-punched roof holes land (interior access required).
- Lay butyl tape along the underside of each rail at the mounting points.
- Set the rail on the roof, thread stainless bolts from inside through the factory holes, torque to spec.
- Fit OEM-style end caps. Reinstall headliner trim. Done.
Total time: 60–90 minutes, one person, basic hand tools. No drilling into the roof skin. Full walkthrough including headliner trim removal is in the LoadSpan engineering guide.
Common pre-purchase questions
Does this fit my Sprinter?
All 2019+ (VS30) Mercedes-Benz Sprinter vans — 144", 170", and 170" Extended wheelbases, all roof heights (Standard, High, Super-High). Not compatible with 2018 and earlier (NCV3) models.
Do I need to drill into my roof?
No. LoadSpan-T bolts through the Sprinter's factory pre-punched roof holes. Interior headliner access is required to tighten nuts from inside. Butyl tape seals the interface.
What's the actual load capacity?
330 lb dynamic (while driving). This is the same ceiling for Standard, High, and Super-High roof. The rails themselves exceed this limit — your vehicle's roof is the limiting factor, not the rail.
Can I mount a Fiamma awning directly to the rails?
Not directly. Awnings need a clamp surface. For Fiamma-style awnings, pair LoadSpan-T with DualTrack-T crossbars — the awning then clamps to the crossbars.
Will my existing L-Track accessories fit?
Yes. The rail has an industry-standard L-Track channel running its full length. Standard studs, rings, tie-down anchors, and sliding mounts drop straight in.
Does the rail also accept 25mm T-Slot hardware?
Yes. A 25mm T-Slot channel runs in parallel down the same extrusion, full-length, alongside the L-Track. Standard M8/M10 T-slot bolts, crossbar feet, and clamp-on accessories drop straight in. Both channels are supported simultaneously — you don't pick one.
How long does install take?
60–90 minutes with basic hand tools. One person can do it. See the engineering guide for the full walkthrough.
What's the warranty and return policy?
DVA backs LoadSpan-T against manufacturing defects. Unused products can be returned within 30 days. Contact support@dvamechanics.com for warranty claims.
Gallery
Add DualTrack-T™ crossbars
Rails alone are the foundation. DualTrack-T™ crossbars turn the roof into a mounting platform — same dual L-Track + 25mm T-Slot channels, running perpendicular across the rails. Bolts, slides, and adjusts along the full length of every LoadSpan-T rail.
Fiamma awnings, solar arrays, cargo baskets, and roof boxes all mount to DualTrack-T. Rails alone won't carry them — crossbars are required.
LoadSpan-T™ for your Sprinter
Full-length extruded aluminum. Dual L-Track + 25mm T-Slot channels in parallel. No drilling. Ships free in the US.
Free US shipping · 30-day returns · Ships from Alpharetta, Georgia, USA
