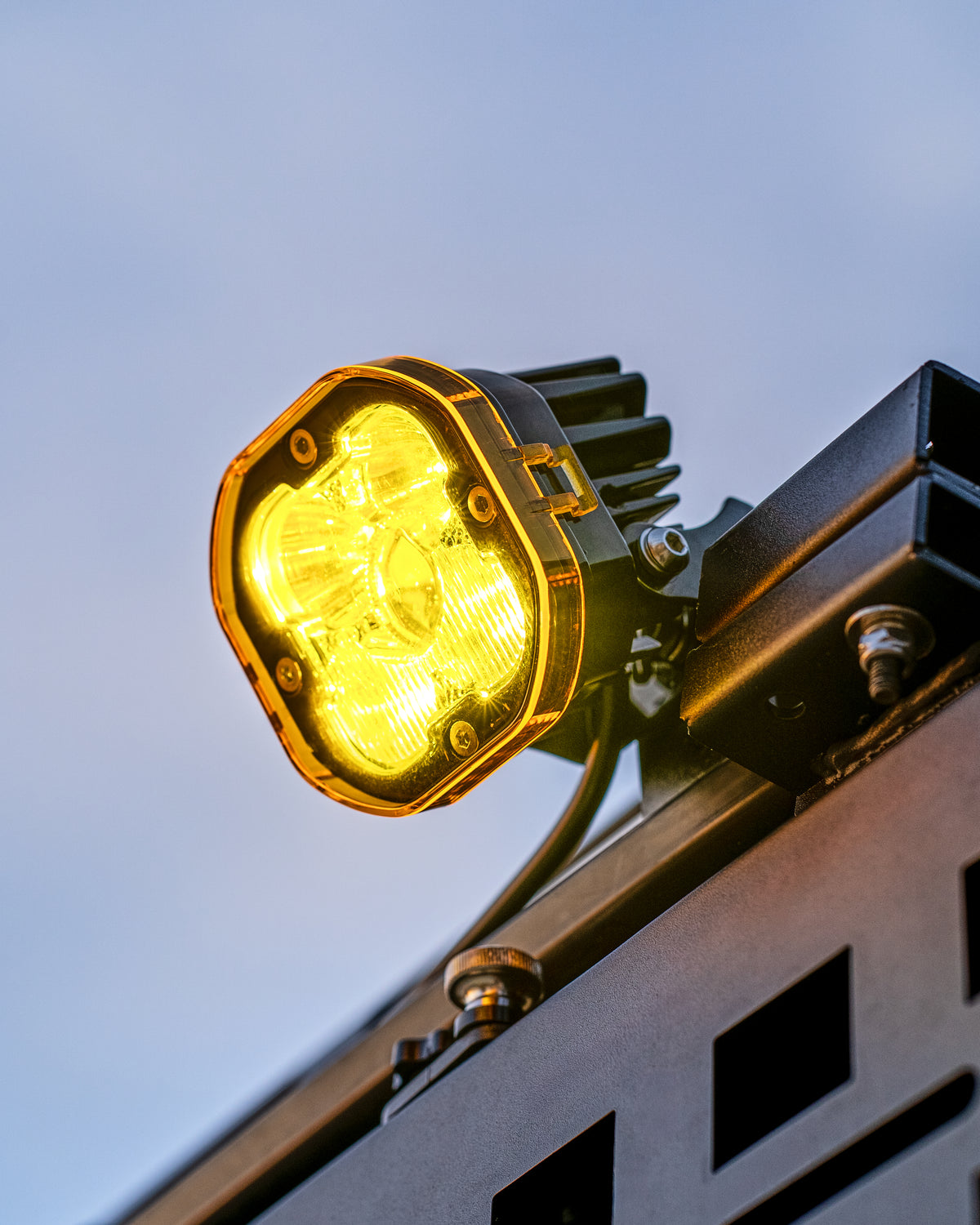

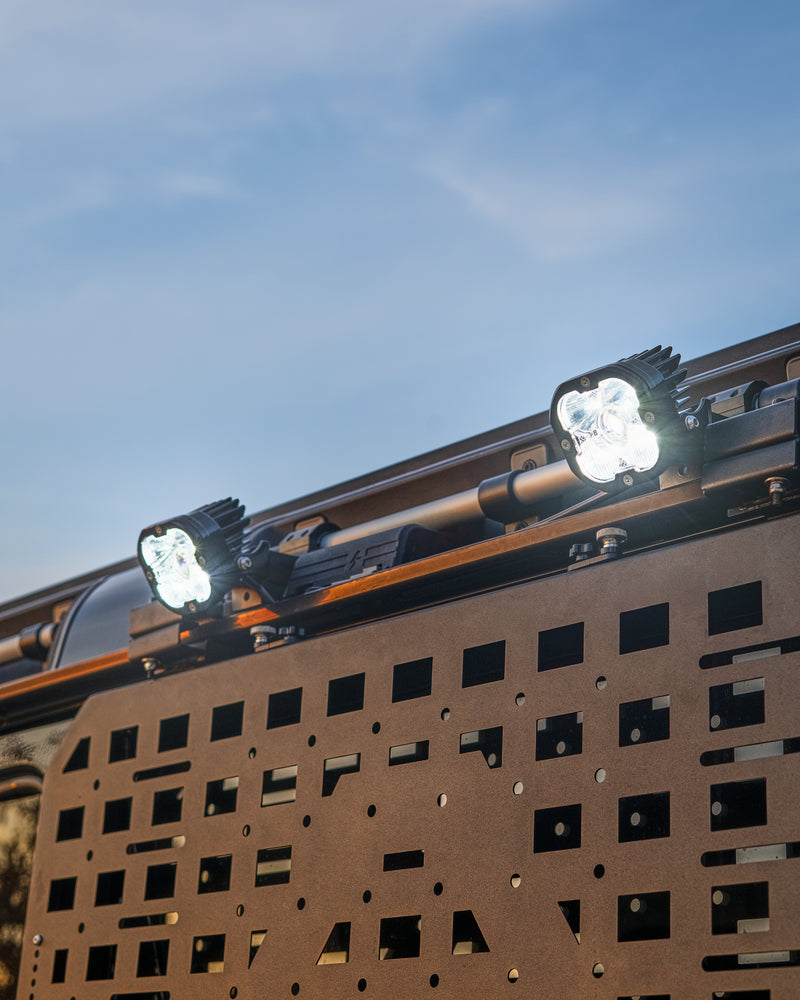

INEOS Grenadier: LED Side Light
Roof Bar Mount · DTP Plug-In · Single or Dual Kit
30 W
Per light
IP68
Waterproof & dustproof
EXT3
Recommended DTP port
2 kits
Single or Dual
Plug-and-play trail lighting for the Grenadier's factory roof bar system. Each DVA LED Side Light arrives pre-fitted with a DTP connector — plug directly into EXT3 on the Grenadier's rooftop power ports, clamp to the factory roof bar, and drive. No wiring, no drilling, no modifications.
DTP plug-in · EXT3 rooftop port
No drilling · Factory roof bar clamp
IP68-rated · Aluminum housing
Yellow lens · Included snap-on
Dual kit · DTP splitter included
Engineered for the Grenadier
DTP Integration
Pre-fitted DTP connector plugs directly into the Grenadier's EXT3 rooftop power port. No new wiring runs, no relay, no switch — factory power, factory connector.
Factory Roof Bar Mount
Precision-machined clamp for the Grenadier's roof bar. No drilling or modifications. All brackets, fasteners, and hex keys included in the box.
Two Output Modes
White LED for wide-beam trail illumination. Snap-on yellow lens (included) for fog, dust, snow, and reduced glare — no tools required to swap.
Installation
- Clamp mounting bracket to factory Grenadier roof bar
- No drilling, cutting, or modification to vehicle
- Plug DTP connector into EXT3 rooftop port
- Dual kit: use included DTP splitter to run two lights from one EXT3 port
- All hardware and hex keys included — no additional tools required
Select Your Kit
Single Light Kit
One light, one side. Driver-side or passenger-side roof bar position.
- 1 × 30W LED Light
- 1 × Yellow snap-on lens
- Grenadier roof bar clamp + bracket
- Stainless hardware + hex keys
- Pre-installed DTP connector
Best Value
Dual Light Kit
Both sides from a single EXT3 port — balanced illumination, one connection.
- 2 × 30W LED Lights
- 2 × Yellow snap-on lenses
- Dual roof bar clamps + brackets
- Stainless hardware + hex keys
- Pre-installed DTP connectors
- 1 × DTP splitter (both lights, one EXT3 port)
Specifications
| Specification | Details |
|---|---|
| Vehicle | INEOS Grenadier (all trims) |
| Power per Light | 30W |
| IP Rating | IP68 — waterproof and dustproof |
| Housing | Aluminum with cooling fins |
| Connector | Deutsch DTP (pre-installed) |
| Recommended Port | EXT3 — 3 access points: above left front door, left rear door, and right rear door |
| Mounting | Factory roof bar clamp — no drilling |
| Lens | White LED standard · Yellow snap-on lens included |
| Variants | Single Kit (1 light) · Dual Kit (2 lights + DTP splitter) |
Frequently Asked Questions
Which EXT port should I use?
EXT3 is recommended. It has three access points — above the left front door, above the left rear door, and above the right rear door — making it the most practical port for roof bar-mounted accessories on either side of the vehicle. The Dual Kit's DTP splitter allows both lights to run from a single EXT3 port.
Does this require any wiring or drilling?
No. The DTP connector plugs directly into the Grenadier's factory rooftop power port. The mount clamps to the factory roof bar. No new wiring runs, no drilling, no modifications to the vehicle.
What is the yellow lens for?
The yellow lens reduces glare in fog, dust, and snow conditions and improves contrast at close range. It snaps on over the white LED — no tools required. Both kits include one yellow lens per light.
Can I run two lights from one EXT port?
Yes — the Dual Kit includes a DTP splitter for exactly this. Both lights connect through a single EXT3 port. Combined draw is 60W (2 × 30W), which is within the safe operating range for the Grenadier's factory rooftop power system.
Single or Dual Kit — which should I choose?
The Dual Kit is the better value if you want balanced illumination on both sides of the vehicle. The Single Kit is the right choice if you only need one side, or if you are running the light alongside other accessories on separate EXT ports and want independent control of each side.
Does this fit all Grenadier trims?
Yes. Compatible with all INEOS Grenadier trims. The mount is precision-machined for the Grenadier's factory roof bar profile.
Why DVA Mechanics
Purpose-built for the Grenadier. Engineered for real-world off-road use.
Mount, plug in, drive. No universal adapters, no compromise — just clean factory integration designed by owners who use the same gear.
