INEOS Grenadier: LED Side Flood Light
Roof Bar Mount · DTP Plug-In · Wide Flood Beam · 1 or 2 Light Kit
30 W
Per light
2,400 lm
Per light
IP68
Waterproof & dustproof
EXT3
Recommended DTP port
Wide-area flood illumination for camp, work, and recovery — using the Grenadier's factory roof bar and power system. The DVA LED Side Flood Light delivers 2,400 lumens of broad flood output per unit, pre-fitted with a DTP connector for direct plug-in to EXT3. No wiring runs, no drilling, no modifications to the vehicle.
2,400 lm · Wide flood beam
DTP plug-in · EXT3 rooftop port
No drilling · Factory roof bar clamp
IP68-rated · Aluminum with cooling fins
1 or 2 light · Kit options available
Flood Light vs Side Light — Which Do You Need?
This Product
LED Side Flood Light
Wide flood beam — broad, even area coverage. Best for camp setup, recovery operations, work zones, and site lighting where coverage close to the vehicle matters more than throw distance.
Alternative
LED Side Light
Focused spot/wide beam — directional trail illumination optimised for visibility at range. Includes snap-on yellow lens for fog and dust. Same DTP plug-in and roof bar mount.
Engineered for the Grenadier
- DTP Plug-In Pre-fitted connector plugs directly into EXT3. No relay, no wiring runs.

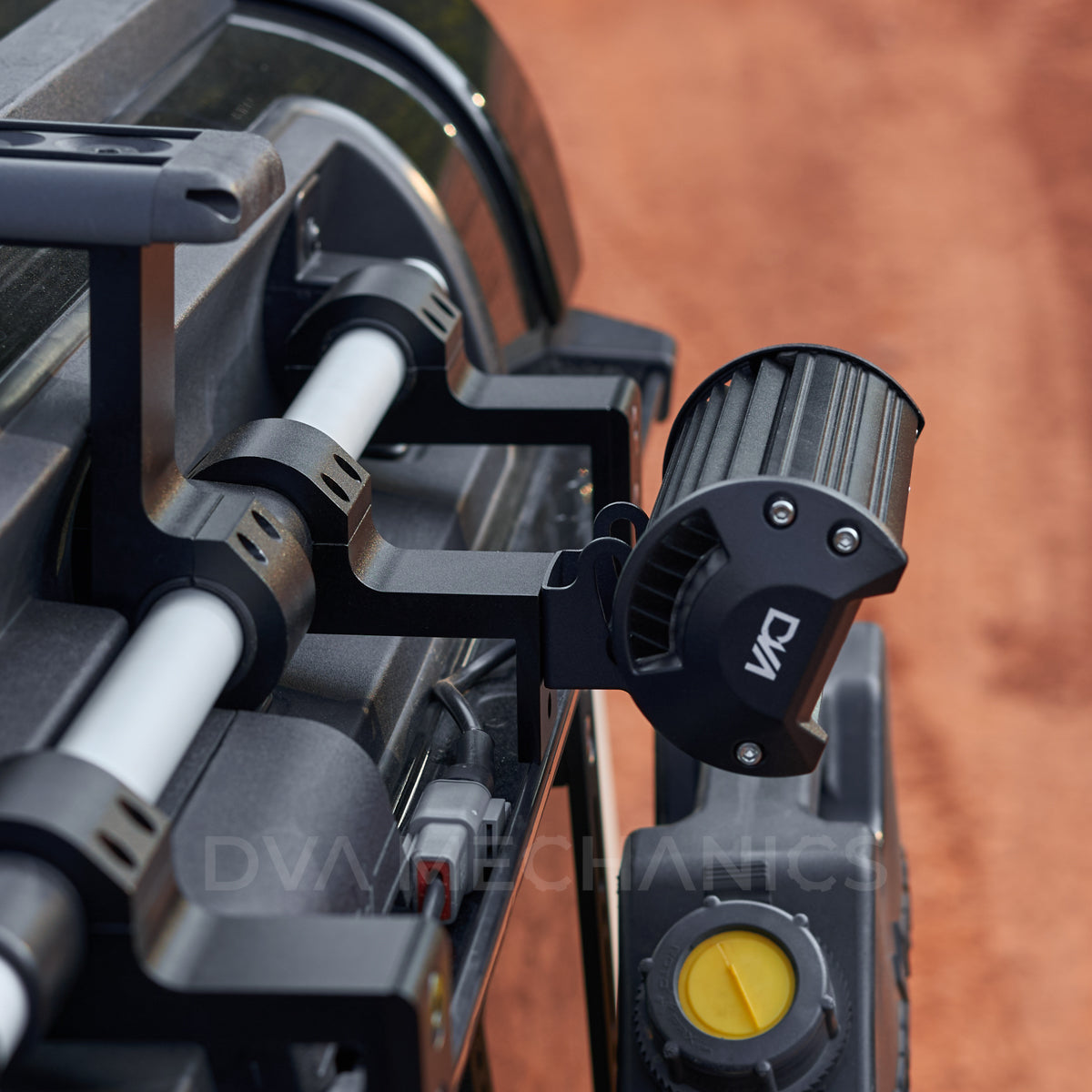

- Roof Bar Mount Precision-machined clamp. Driver or passenger side. No drilling. Hardware included.
- 30W / 2,400 lm Broad flood beam. Aluminum housing with cooling fins. IP68 rated.
Installation
- Clamp mounting bracket to factory Grenadier roof bar — driver or passenger side
- No drilling, cutting, or modification to the vehicle
- Plug pre-installed DTP connector into EXT3 rooftop port
- 2-Light Kit: connect both lights through the included DTP splitter to one EXT3 port
- All hardware and hex keys included — no additional tools required
Select Your Kit
1-Light Kit
One flood light — driver-side or passenger-side roof bar position.
- 1 × 30W LED Flood Light (2,400 lm)
- Grenadier roof bar clamp + bracket
- Stainless hardware + hex keys
- Pre-installed DTP connector
Best Value
2-Light Kit
Both sides — 4,800 lm total flood coverage from a single EXT3 port.
- 2 × 30W LED Flood Lights (2,400 lm each)
- Dual roof bar clamps + brackets
- Stainless hardware + hex keys
- Pre-installed DTP connectors
- 1 × DTP splitter (both lights, one EXT3 port)
Specifications
| Specification | Details |
|---|---|
| Vehicle | INEOS Grenadier (all trims) |
| Beam Pattern | Wide flood |
| Power per Light | 30W |
| Lumens per Light | 2,400 lm |
| Total Output — 2-Light Kit | 4,800 lm combined |
| IP Rating | IP68 — waterproof and dustproof |
| Housing | Aluminum with cooling fins |
| Connector | Deutsch DTP (pre-installed) |
| Recommended Port | EXT3 — 3 access points: above left front door, left rear door, and right rear door |
| Mounting | Factory roof bar clamp — no drilling |
| Variants | 1-Light Kit · 2-Light Kit (includes DTP splitter) |
Frequently Asked Questions
Why DVA Mechanics
Purpose-built for the Grenadier. Engineered for real-world off-road use.
Mount, plug in, drive. No universal adapters, no compromise — clean factory integration designed by owners who run the same gear.
