LoadSpan™-T Load-Spreading Roof Rails for Mercedes-Benz Sprinter
Full-Length Load-Distributing Rail System with Integrated DualTrack-T™ Channel — Simultaneous L-Track + 25mm T-Slot for (2019–Present) 144", 170", and 170” Extended Mercedes-Benz Sprinter vans. Available in silver and black.
LoadSpan™-T is a structural backbone engineered to spread load evenly across the entire roofline—reducing point stress and maximizing dynamic stability. With an integrated patent pending DualTrack-T™ channel, LoadSpan™-T is the only front-to-back Sprinter rail system on the market that combines continuous load distribution with simultaneous full-length L-Track and 25mm T-Slot accessory integration—no adapters, no choosing between standards.
- Fits: Mercedes-Benz Sprinter 144" / 170" (2019–Present)
- Install: Direct mount to factory roof hard points — no drilling
- Design: Rigid interlocking sections for full-length load distribution
- System: Patent Pending DualTrack-T™ channel — simultaneous L-Track + 25mm T-Slot in a single rail
ROOF LOAD CAPACITY
STANDARD ROOF
330 lbs
Dynamic (while driving)
660 lbs
Static (parked) — estimated 2× dynamic
HIGH ROOF
330 lbs
Dynamic (while driving)
660 lbs
Static (parked) — estimated 2× dynamic
Source: Mercedes-Benz Sprinter Operator's Manual (pages 151, 286). Capacity includes weight of rails and all mounted accessories. LoadSpan™-T rail capacity exceeds these limits — your vehicle's roof is the limiting factor.
Available Lengths
| Sprinter Version | Rail Length (in) | Rail Length (cm) | Weight (kg) | Weight (lb) |
| 144" | 113.3 in | 287.7 cm | 3.8 kg | 8.4 lb |
| 170" | 158.5 in | 402.6 cm | 5.1 kg | 11.3 lb |
| 170" Extended | 173.5 in | 440.6 cm | 5.6 kg | 12.3 lb |
OEM Rails vs. LoadSpan™-T

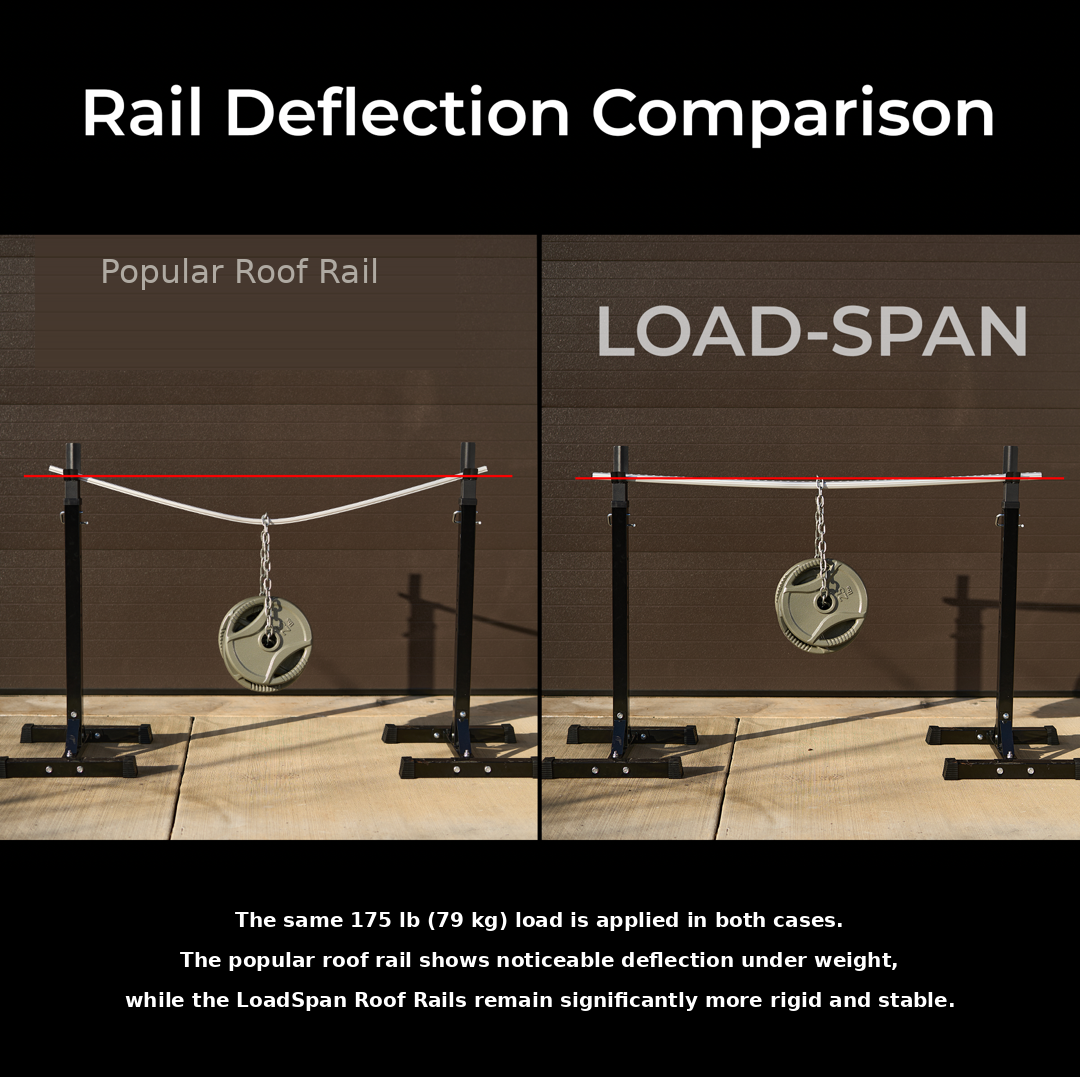

OEM roof rails are engineered with a relatively compliant profile—meaning under real load they can deflect. That deflection matters: when weight is applied through a bracket, crossbar, or tie-down, the rail can bend locally and the force is transferred into the roof primarily near the load point. The result is a concentrated load path, higher localized stress at the roof interface, and less predictable stability under vibration, leverage, and shifting loads. OEM rails also offer a single mounting standard—accessories either fit natively or require adapters.
LoadSpan™-T is engineered around stiffness, continuity, and universal compatibility. Its front-to-back rail architecture resists localized bending and instead distributes forces along the rail and into multiple factory roof mounting locations. Rather than allowing the rail to act like a spring at the load point, LoadSpan™-T creates a shared load path across the full rail length. And with the patent pending DualTrack-T™ channel, L-Track sliders and 25mm T-Slot hardware run simultaneously in a single integrated rail—no adapters, no secondary track, no compromises.
LoadSpan™-T vs. Other Sprinter Rail Systems
| Feature | LoadSpan™-T | Typical Aftermarket |
| Rail Design | Rigid interlocking sections (2–3 per side) | Segmented with flex points |
| Load Distribution | Spreads across entire roofline | Concentrated at mount points |
| Mounting Standards | L-Track + 25mm T-Slot simultaneously — Patent Pending | L-Track or 25mm T-Slot — not both |
| Adapter Required | No — both standards run natively | Often required to switch standards |
| Drilling Required | No — uses factory hard points | Often requires drilling |
Why LoadSpan™-T
- Continuous load-spreading backbone: Rails distribute forces across the roofline instead of concentrating stress at isolated attachment points.
- Patent Pending DualTrack-T™ channel: The only front-to-back Sprinter rail with simultaneous L-Track and 25mm T-Slot integration in a single native channel — run both standards anywhere along the full rail length without adapters.
- Maximum accessory compatibility: L-Track cargo and tie-down hardware alongside 25mm T-Slot crossbar, solar, and rack systems — on the same rail, at the same time.

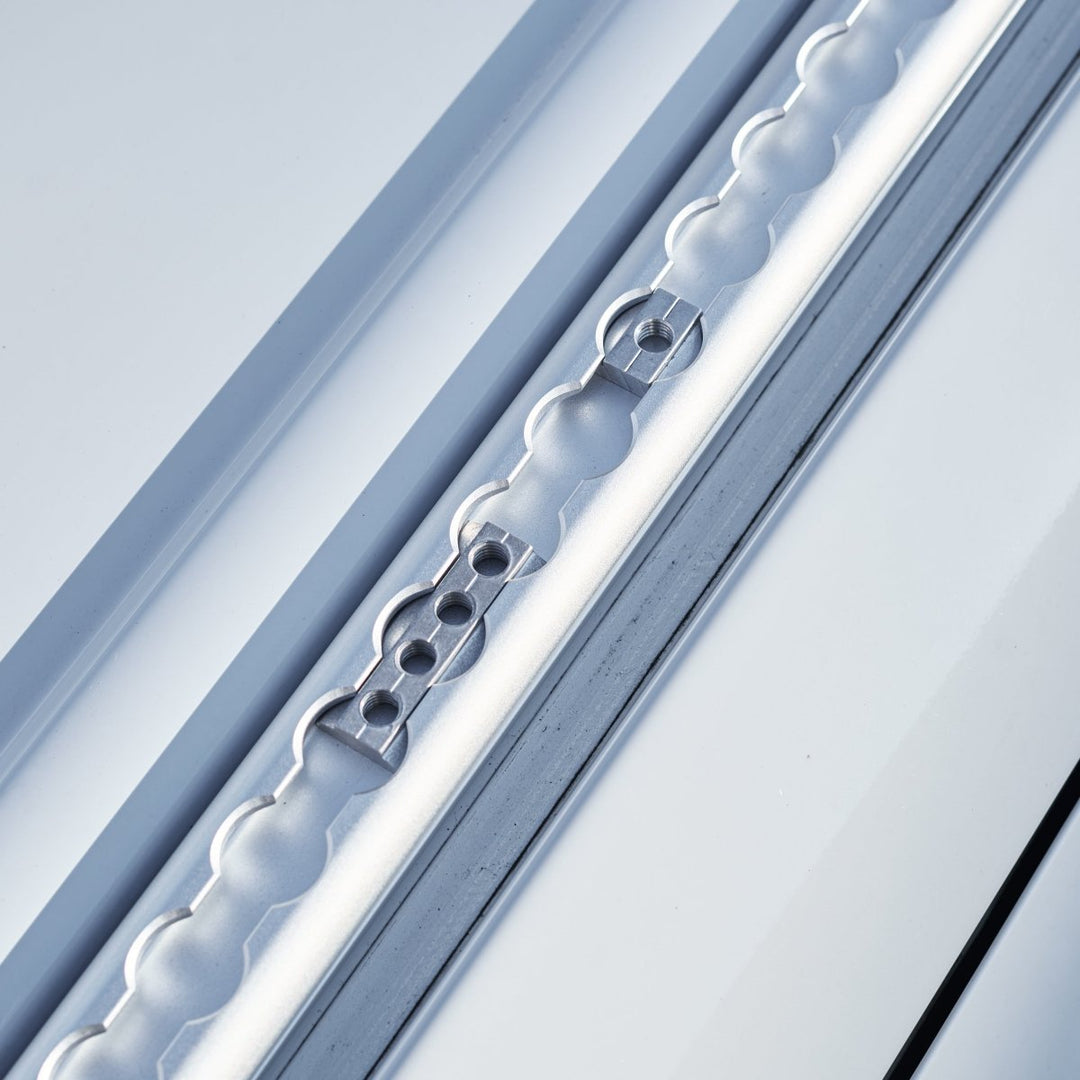

- M6 / M8 slider compatibility: Supports accessories designed for OEM and third-party rails using standard M6 and M8 slider hardware.
- No drilling required: Mounts directly to factory roof hard points for a secure installation without modifying the vehicle structure.
- Purpose-built for Sprinter geometry: Premium, integrated fit engineered specifically for Mercedes-Benz Sprinter rooflines.
- Designed for long-term structural stability: Optimized for vibration resistance, load cycling, and fatigue over extended service life.

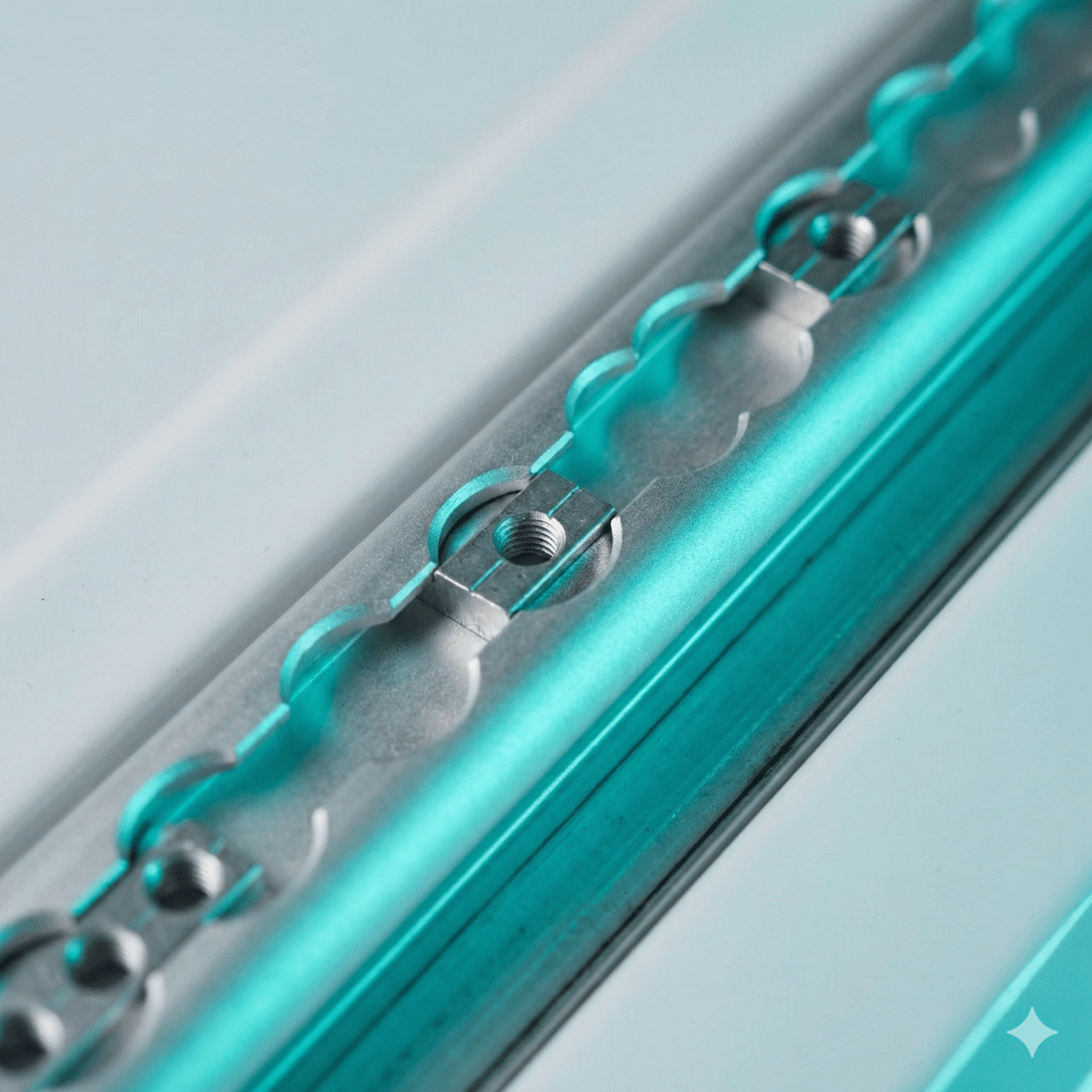

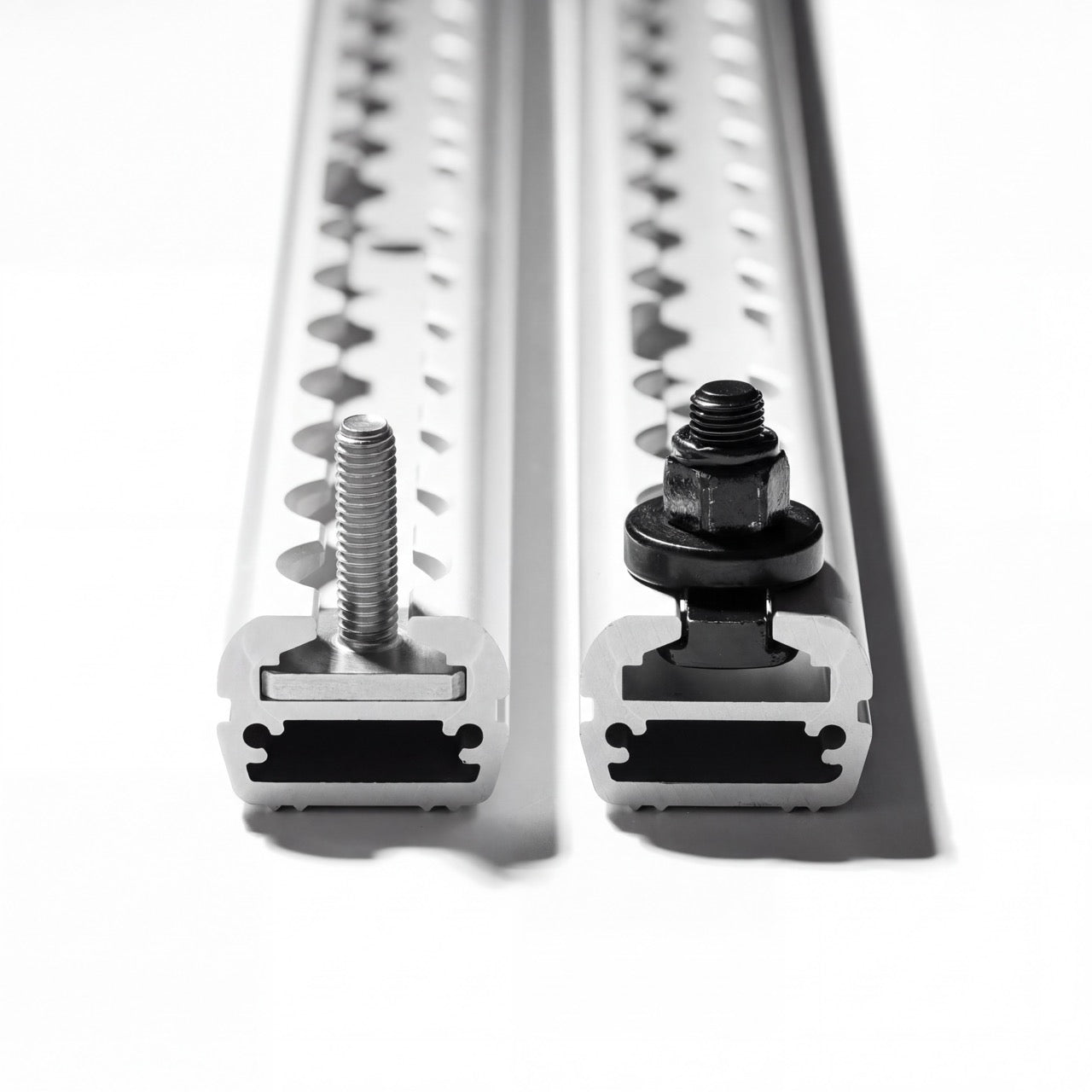

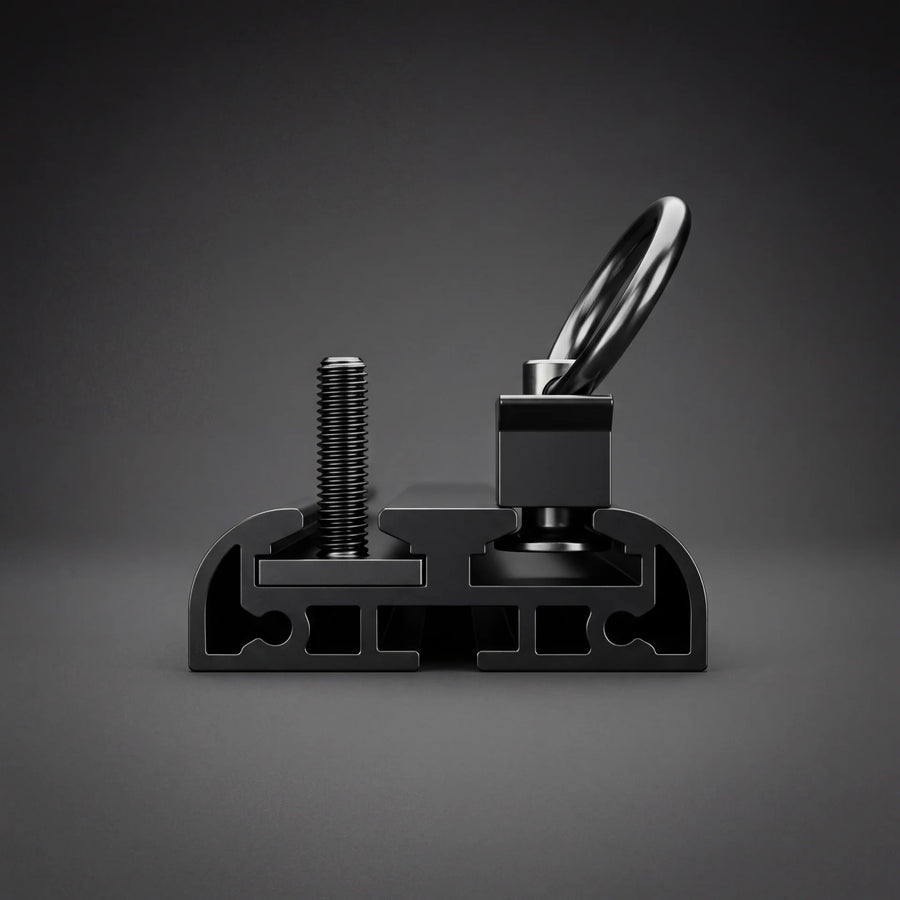

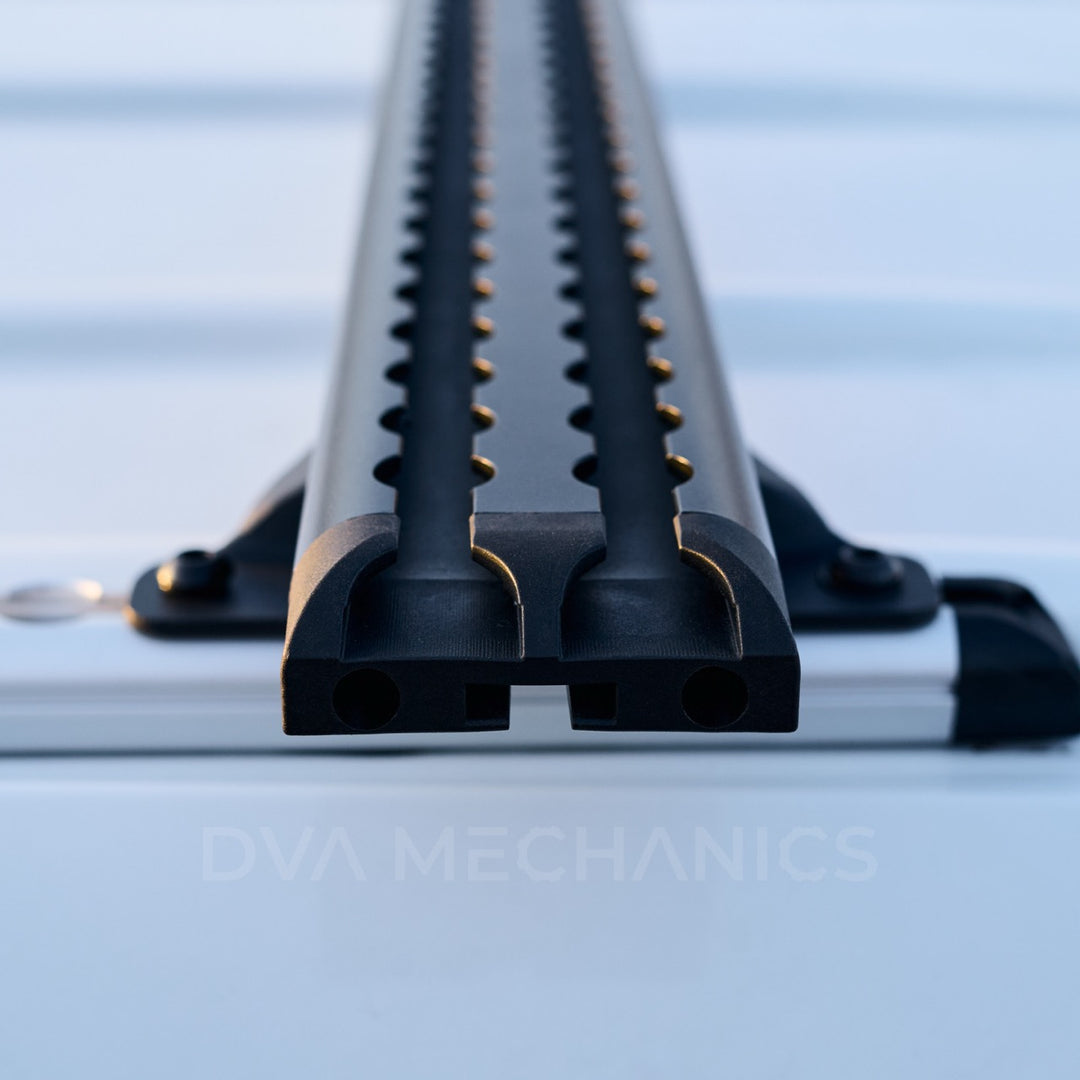

DualTrack-T™ Channel — Patent Pending
Most rail systems force a choice: L-Track or 25mm T-Slot. LoadSpan™-T eliminates that constraint. The DualTrack-T™ channel runs both mounting standards simultaneously in a single integrated rail profile — so cargo tie-down hardware, crossbars, solar mounts, light bars, and rack systems can all live on the same rail without adapters or secondary tracks.
Also available as a standalone cross bar: DualTrack-T™ Cross Bar Kit →
DualTrack-T™ Accessory Compatibility
LoadSpan™-T uses the patent pending DualTrack-T™ channel — compatible with both L-Track and 25mm T-Slot accessory ecosystems simultaneously:

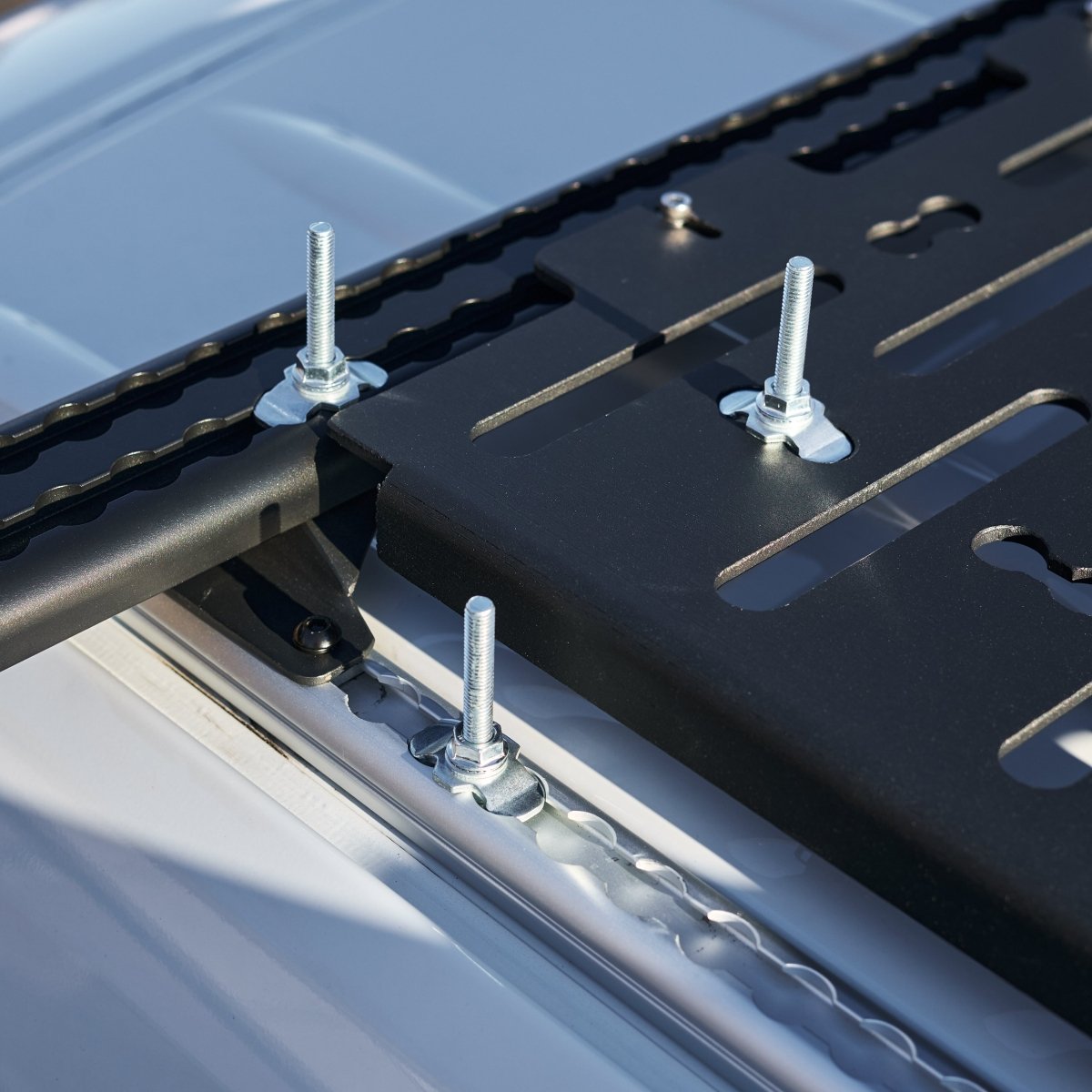

- L-Track Accessories: Single studs, O-track rings, tie-down anchors, sliding mounts, cargo nets, straps
- T-Slot Bolt Accessories: Crossbar feet, solar panel mounts, light bars, antenna brackets, roof-mounted cargo systems
- DVA Accessories: Mounting clamps, light mounts, Starlink mounts, recovery board carriers
Already own L-Track or 25mm T-Slot accessories? They'll likely work with LoadSpan™-T. Contact us to verify compatibility.
Best For
- Professional work rigs requiring both tie-down flexibility and bolt-on rack systems on a single rail
- Camper and conversion builds combining L-Track cargo hardware with 25mm T-Slot solar, awning, or rack accessories
- Operators who switch between accessory configurations and need both standards permanently available
- Roof-mounted systems demanding structural stability over long distances
Vehicle Compatibility
- Mercedes-Benz Sprinter (VS30 chassis, 2019–Present)
- Wheelbase: 144" / 170"
- Roof Heights: Standard, High — all compatible
- Cargo and Passenger variants
Fit Note: Select the correct Sprinter length (144 / 170). Add roof type and model year in the order notes if confirmation is needed.
Not compatible with NCV3 (2007–2018) Sprinters. Contact us if you're unsure about your model.
Installation Overview
- Estimated install time: 60–90 minutes
- Tools required: Basic hand tools
- Skill level: DIY-friendly
- Drilling required: No — mounts to factory hard points
- Reversible: Yes — vehicle can be returned to stock
What's Included
- All required front-to-back LoadSpan™-T rails for the selected Sprinter length

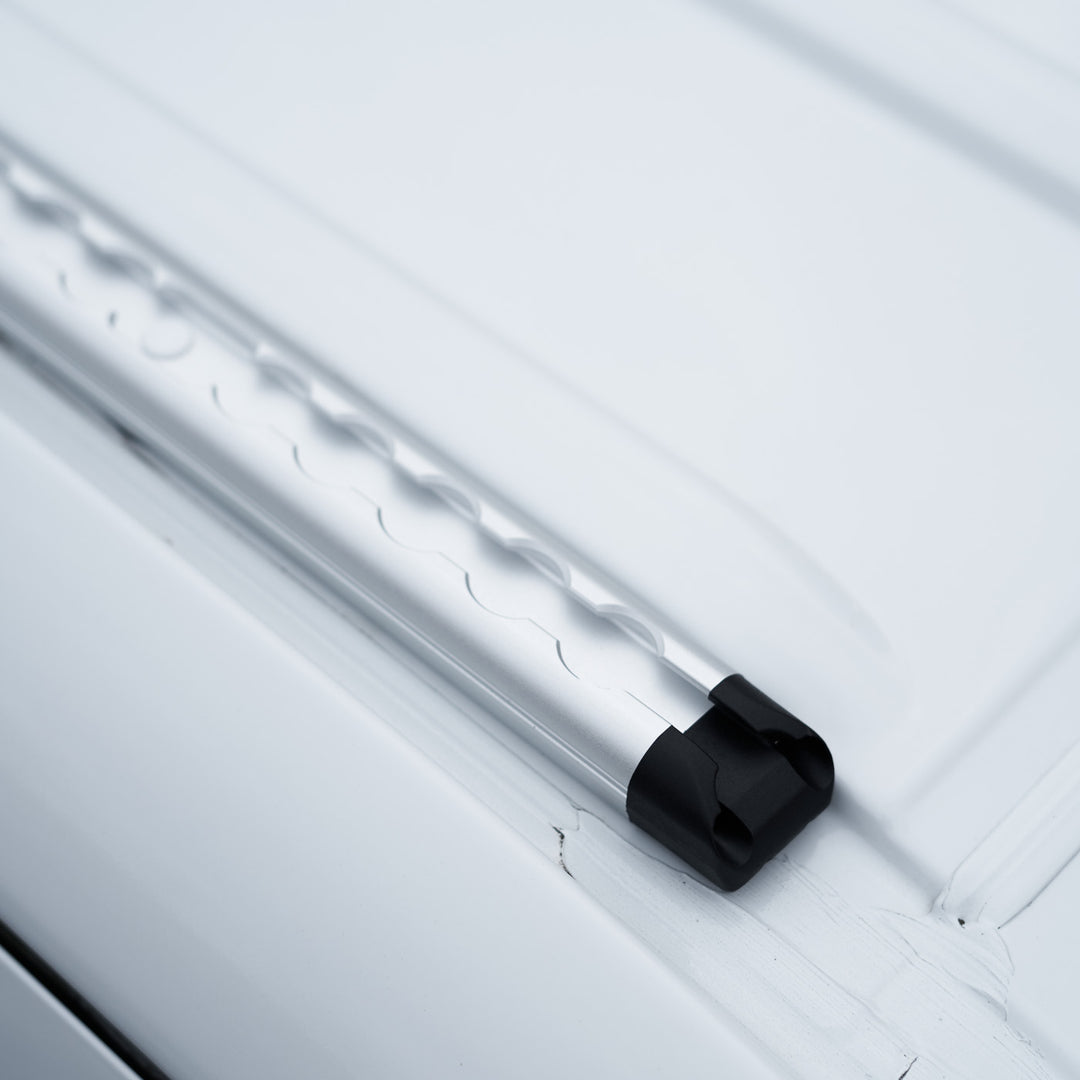

- End caps for a finished, OEM-style appearance
- Complete mounting hardware kit
- Butyl tape for proper waterproof sealing at mounting points
- 4 × M8 single-hole sliders
- 4 × M8 four-hole sliders
Engineering Note: LoadSpan™-T is designed to optimize how loads are transferred into the vehicle, not to inflate published load ratings. Final allowable load is governed by Mercedes-Benz roof specifications and vehicle configuration.
Frequently Asked Questions
Does this fit my Sprinter?
LoadSpan™-T fits all 2019+ (VS30) Mercedes-Benz Sprinter vans — 144" and 170" wheelbases, all roof heights (Standard, High). Not compatible with 2018 and earlier (NCV3) models.
What is the DualTrack-T™ channel?

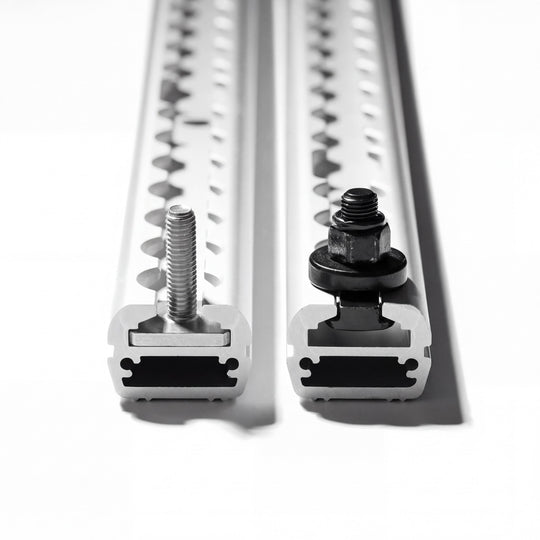

DualTrack-T™ is a patent pending dual-channel rail profile that accepts L-Track sliders and 25mm T-Slot hardware simultaneously in a single native channel. Most rails support one or the other — DualTrack-T™ runs both at the same time, anywhere along the full rail length, without adapters.
What's the difference between L-Track and 25mm T-Slot?
L-Track uses sliding ring and stud fittings common in cargo tie-down, recovery, and van conversion gear. T-Slot Bolt uses bolted hardware common with crossbars, solar mounts, light bars, and roof rack systems (Thule, Yakima, etc.). LoadSpan™-T runs both channels natively — you don't have to choose.
Do I need to drill into my roof?
No. LoadSpan™-T mounts to factory roof hard points with no drilling required.
What's the load capacity?
Load capacity is determined by your Mercedes-Benz roof rating, not the rails — LoadSpan™-T exceeds these limits by design:
Standard Roof: 330 lbs dynamic / 661 lbs static
High Roof: 330 lbs dynamic / 661 lbs static
Dynamic = while driving. Static = parked. Capacity includes the weight of the rails themselves (~8–12 lbs depending on length). Source: Mercedes-Benz Sprinter Operator's Manual, pages 151 and 286.
Can I mount crossbars to LoadSpan™-T?
Yes. The integrated 25mm T-Slot channel accepts standard crossbar feet with bolt-on hardware. The L-Track channel accepts sliding crossbar feet as well. The included M8 sliders work with most bolt-on crossbar systems.
Will this work with my roof rack / cargo box / solar panels?
Yes. The 25mm T-Slot channel is specifically designed for bolt-on accessories including solar panel mounts, light bars, antenna brackets, and roof-mounted cargo systems. The L-Track channel supports sliding accessories simultaneously. Contact us to verify your specific setup.
How long does installation take?
Most installations take 60–90 minutes with basic hand tools.
I have a camper conversion — will this work?
Yes. LoadSpan™-T is ideal for camper builds. The full-length DualTrack-T™ channel lets you run tie-down hardware and bolt-on accessories simultaneously anywhere along the rail — no secondary track needed.
What's the difference between the 144" and 170" versions?
Each version is cut to match your Sprinter's wheelbase. The rails span the full length of your roofline — select the version that matches your van.
What's the difference between LoadSpan™ and LoadSpan™-T?
LoadSpan™ features a native L-Track channel. LoadSpan™-T upgrades to the patent pending DualTrack-T™ channel — adding simultaneous 25mm T-Slot compatibility in the same rail profile. If you use or plan to use 25mm T-Slot accessories (crossbars, solar, rack systems), LoadSpan™-T is the correct choice.
What's the warranty?
LoadSpan™-T carries a limited lifetime structural warranty — the extrusion and mounting structure are covered for as long as you own it, plus coverage against manufacturing defects. See full warranty details.
Can I return it if it doesn't fit my setup?
Yes. Unused products can be returned within 30 days. See return policy.
Why DVA for Sprinter?
DVA Mechanics started with the INEOS Grenadier — engineering premium, no-compromise accessories for owners who demand real-world performance. LoadSpan™-T brings that same philosophy to the Mercedes-Benz Sprinter: purpose-built solutions designed by people who actually use them.
- Trusted by 2,500+ Grenadier and Sprinter owners
- U.S.-based support
- Free U.S. shipping
- 30-day returns
